Milesight Industrial Cellular Router 4G LTE Dual SIM 5 Port Ethernet ARM Cortex

When a factory, a remote site, or a moving vehicle loses network connection, the whole operation can stop. That loss hurts productivity, raises costs, and can even create safety risks. You need a device that keeps data flowing even when Wi-Fi or wired lines fail. The Industrial Cellular Router 4G LTE Dual SIM 5 Port Ethernet ARM Cortex gives you a reliable cellular link, automatic backup, and many ports to keep your machines online.

Milesight Industrial Cellular Router 4G LTE Dual SIM 5 Port Ethernet ARM Cortex with Industrial

This router is built for tough environments. It combines a fast 4G LTE modem, two SIM slots, and five Ethernet ports in a metal case. It is meant for factories, transportation, and outdoor installations where ordinary routers cannot survive. If you have devices that must stay connected at all times, this router gives you a clear, always-on path to the cloud or your private network.

Usages

Use the router in a manufacturing line to link PLCs to a remote monitoring system. Install it on a delivery truck to send GPS and sensor data back to the depot. Place it at a wind farm to keep the SCADA network alive during storms. It also works for smart city cameras, oil-field telemetry, and any place where wired internet is not reliable.

Benefits

• Dual SIM lets you switch carriers automatically, so downtime is almost impossible.
• Five Ethernet ports let you connect multiple machines without extra switches.
• Rugged metal housing protects against dust, vibration, and temperature extremes.
• Low power consumption keeps operating costs down even in remote sites.
• Built-in VPN and firewall features secure your data without extra hardware.

Key Features

• ARM Cortex-A7 CPU at 528 MHz for fast processing.
• 128 MB DDR3 RAM and 128 MB flash storage.
• 4G LTE (CAT 4) with fallback to WCDMA/GSM.
• Two Mini-SIM slots with independent power control.

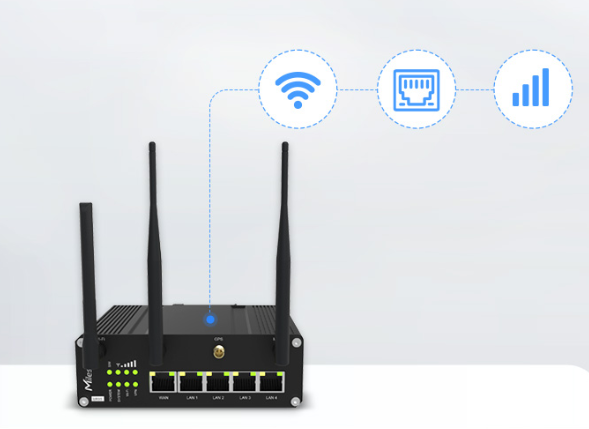

• Five RJ45 ports: 1 WAN + 4 LAN, 10/100 Mbps each.
• Optional PoE on LAN ports for powering remote devices.
• Two 50 SMA antenna connectors for strong cellular signal.
• Optional Wi-Fi (802.11 b/g/n) and GPS/GLONASS module.
• RS232 and RS485 serial ports plus digital I/O for sensor integration.

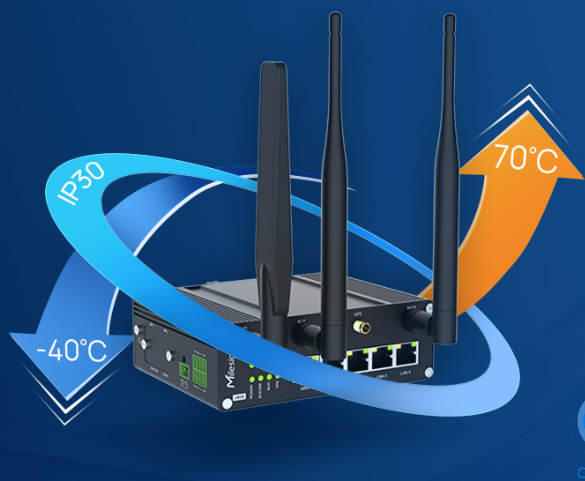

• IP30 rating, operating from -40 C to +70 C.

Specifications
