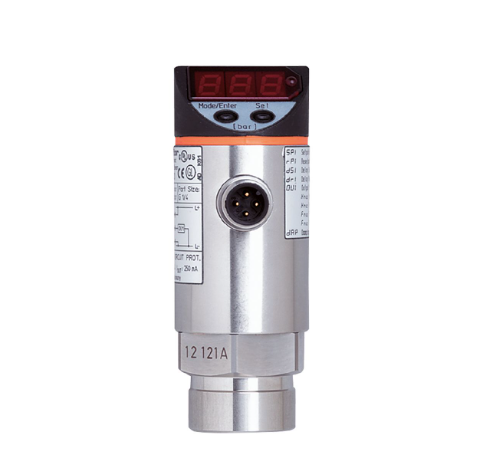

Industrial Pressure Sensor with Display PN7000 Bar Digital Gauge

Tired of guessing whether your system is safe or at risk of over-pressure? The Industrial Pressure Sensor with Display PN7000 Bar Digital Gauge gives you instant, accurate pressure readings on a clear LED display. It is built for factories, plants and workshops that need reliable pressure monitoring. Without a precise sensor you may face costly downtime, damaged equipment, or safety hazards. This gauge solves that problem by delivering real-time data and automatic alerts, so you can keep your process running smoothly and safely.

Industrial Pressure Sensor with Display PN7000 Bar Digital Gauge

Many industrial lines suffer from outdated analog gauges that drift and require frequent manual checks. Inaccurate pressure data can lead to wasted material, failed quality checks, and even dangerous equipment failures. This pressure sensor eliminates the guesswork. It measures up to 400 bar, shows the value on a 4-digit alphanumeric display, and sends two configurable digital outputs via IO-Link. The result is a clear, reliable picture of pressure at every moment, helping you protect assets and meet strict production standards.

Benefits

• Instant visual readout lets operators act within seconds.
• Two digital outputs enable automatic shut-off or alarm triggers.
• Wide measuring range (0-400 bar) covers most hydraulic and pneumatic needs.
• Gold-plated contacts ensure long life even in harsh environments.
• IP67 housing protects the sensor from dust and water.

Usages

Use this sensor on hydraulic presses to monitor cylinder pressure and prevent over-stroke. Install it in pneumatic conveyors to keep air pressure within safe limits and avoid belt slip. It fits well in chemical processing where liquids and gases must be tracked precisely. The threaded G 1/4 connection makes mounting easy on existing pipelines, and the built-in watchdog protects against signal loss in critical automation loops.

Key Features

• Measuring range: 0 400 bar (0 5800 psi).
• Two configurable digital outputs (PNP/NPN, NO/NC).
• IO-Link communication (COM2, 38.4 kBaud, revision 1.1).
• Gold-plated contacts for high reliability.
• Operating voltage 18-36 V DC with reverse polarity protection.
• Temperature range -25 C 80 C, ambient -20 C 80 C.
• IP67 protection rating for dust and water resistance.
• Switch point accuracy better than 0.5 % of span.
• Power-on delay 0.3 s and programmable delay up to 50 s.
• Compact cylindrical housing, 272 g weight, dimensions 34 mm L 94.1 mm.

Specifications
