Robust Data Protection For Less

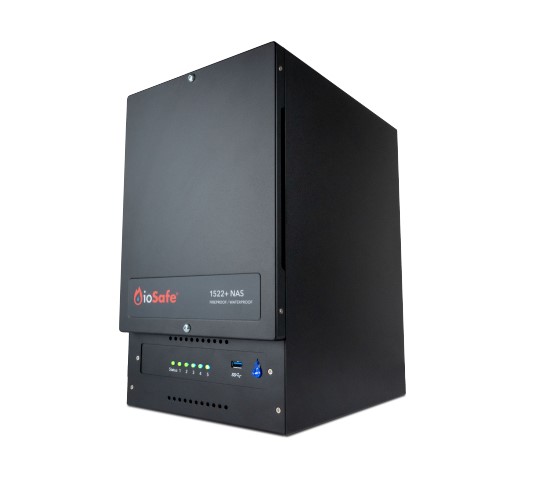

The ioSafe 1522+ network-attached storage (NAS) device provides data center-class storage without the cost or complexity. Even better, the 1522+ is 1/4 the cost of one year of cloud computing. Without the privacy risks or downtime. Maybe the only thing clouds are good for is rain. Which the 1522+ doesn’t care about.
Takes the Heat
Fireproof up to 1550º F for 30 minutes, the 1522+ will survive office and home fires – meaning you can get back up and running fast.
They Use Water To Put Out Fires, Right?
Waterproof up to 10 feet for 72 hours, the 1522+ protects data from broken pipes, floods, or the fire department’s hose.
Capacity to Grow
Prepared for the demands of business growth, the 1522+ stores up to 70 TB in its five bays, or up to 210 TB with optional expansion bays.
Data Recovery Service
Should disaster strike, whether in the form of fire, water, or failed hard drive, we’ll help you recover your data so you can get back to business. We’ll even provide forensic data recovery if necessary.
Private Cloud
Store your data at 1/4 the cost of cloud services, without the privacy risks or downtime. You can set up your own private cloud for access to files and data from anywhere. If you want, you can integrate with cloud services.
Blazing Fast NAS
Every 1522+ includes quad 1 GbE LAN with failover and link aggregation support. Plus, you can achieve exceptional network transfer speeds of up to 10 Gbps by upgrading to a 10 GbE LAN add-on.
- Fireproof and waterproof NAS device
- Engineered to protect your work and make certain that you can get your business up and running ASAP
- NVMe SSD cache for fast access to commonly used data
- Acts as a backup system, disaster recovery plan, and robust collaboration tool all-in-one
- Locally, securely store data and enjoy the benefits of cloud storage
Specifications:
| Fire Protection |
|
| Fire Protection |
Up to 1550° F, 30 minutes per ASTM E-119 |
| Water Protection |
|
| Water Protection |
IP68: Fully submersed, fresh or salt water, 10 foot depth, 72 hours |
| Host (I/O) Ports |
|
| Host (I/O) Ports |
USB 3.2 Gen 1 Type A: up to 5 GbpseSATA: up to 6 Gbps (for ioSafe x517 Expansion only)
Ethernet RJ45: up to 1 Gbps (1x optional Synology E10G22-T1-Mini 10GbE LAN add-on
also available: up to 10 Gbps)
|
| Drive Types Supported |
|
| Drive Types Supported |
SATA 2.5" drivesSATA 3.5" drivesSATA SSD (solid state drives)PCIe/NVMe |
| Compatible Drive Type |
|
| Compatible Drive Type |
up to five (5) 3.5-inch or 2.5-inch SATA drives |
| Storage |
|
| Number of bays |
5 |
| RAID |
Yes |
| RAID Info |
Basic, JBOD, RAID 0, 1, 5, 6, 10, Synology Hybrid RAID |
| Indicators |
|
| Number of LEDs |
13 |
| Description of LEDs |
(5) Drive Activity, (4) Left Rear LAN, (4), Right Rear LAN |
| Software Compatibility |
|
| Browser compatibility |
Suggested: Google Chrome, Firefox, Microsoft Edge, Safari |
| Environmental |
|
| Operating Temperature Range |
5°C to 35°C (41°F to 95°F) |
| Non-Operating Temperature Range |
-20°C to 60°C (-4°F to 140°F) |
| Power |
|
| Power input |
100V to 240V AC |
| Dimensions |
|
| Dimensions |
12.60" x 8.70" x 14.76" (320mm x 221mm x 375mm) |
| Weight |
56.00 lbs. (25.40 kg) |
| Populated Weight |
62.00 lbs. (28.12 kg) |
| Physical Security |
|
| Kensington Slot |
Yes |
| Compliance |
|
| Compliance |
FCC, UL, CE, RoHS, TAA |
| Warranty |
|
| Warranty |
CDSG provides a 2-year limited warranty for this product. |
| Technical Support |
|
| Technical Support |
Your investment in CDSG products is backed up by our free technical support for the
lifetime of the product. If you need to contact us for any reason, visit iosafe.com/support.
|
