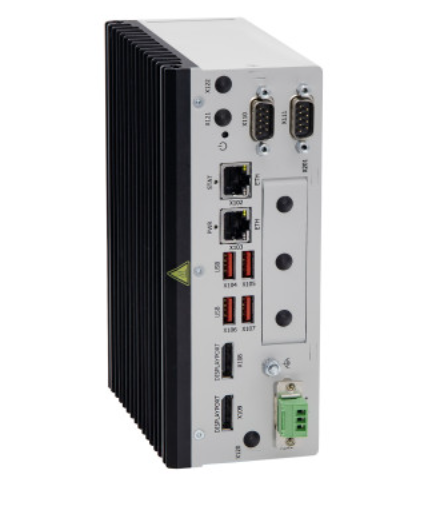

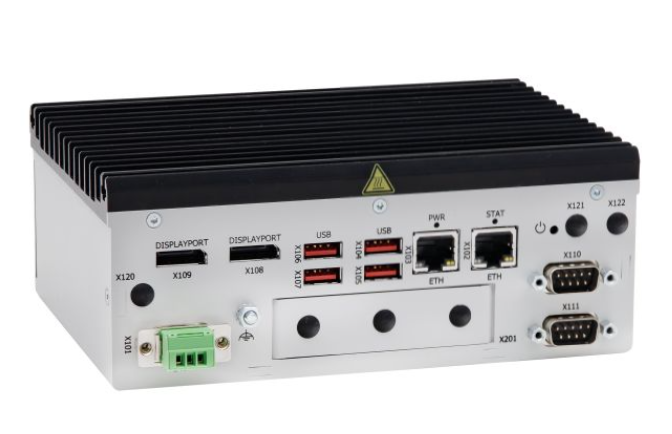

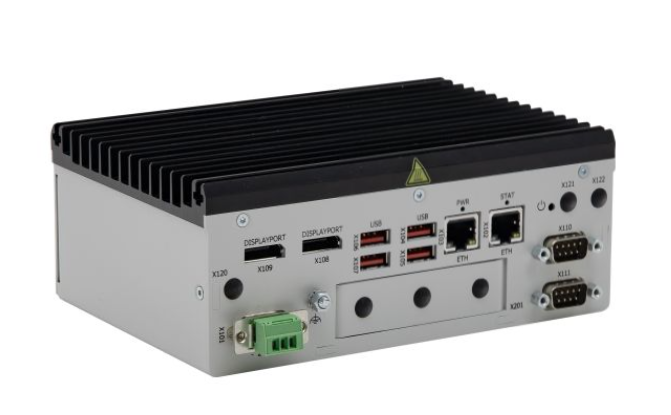

Kontrol KBox A-151-RPL Industrial Box PC with 13th Gen Intel Core DDR5 Fanless

Imagine a computer that never overheats, even when it runs nonstop in a dusty factory. The KBox A-151-RPL Industrial Box PC with 13th Gen Intel Core DDR5 Fanless is built for exactly that. It is a rugged, compact PC that fits into tight control panels and survives harsh environments. Many buyers struggle with regular PCs that fail under vibration, temperature swings, or limited space. This box PC removes those worries and lets you keep production moving.

Kontrol KBox A-151-RPL Industrial Box PC with 13th Gen Intel Core DDR5 Fanless

The main problem in industrial PC automation is unreliable computing hardware. A normal PC can shut down because of dust, heat, or constant vibration. When a controller stops, the whole line can halt, causing lost time and money. The KBox solves this by offering a fanless design that stays cool even at 60 C, and a steel enclosure that protects against shock and humidity. Its 13th-Gen Intel Core processor with DDR5 memory gives fast response while keeping power use low. With built-in Ethernet, USB 3.2 and serial ports, you can connect all your sensors and devices without extra adapters.

Usages of KBox

The KBox fits into any DIN-rail or panel board, so it works well in factory automation cells, conveyor controllers, and robotic arms. It can be mounted in railway signaling cabinets to run monitoring software. In renewable energy sites it drives data loggers for wind turbines or solar inverters. It also serves as a reliable edge server for smart-building HVAC systems or security cameras. Because it runs fanless, it is safe to place near flammable materials or in clean-room environments.

Benefits

• Fanless cooling prevents dust buildup and reduces maintenance costs.
• Steel enclosure protects against shock, vibration and harsh temperature swings.
• 13th-Gen Intel Core CPU delivers fast processing for real-time control.
• DDR5 memory up to 96 GB supports


  Specifications

  Category	Feature	Specification
  PROCESSOR	CPU	13th Gen Intel® Core™ i3-1315UE / i3-1315URE / i5-1345UE / i5-1345URE / i7-1365UE / i7-1365URE or Intel® Processor U300E
  	SPEED	Deca-Core up to 1.7 GHz / 4.9 GHz (Burst)
  	BIOS	AMI® Aptio V5
  MEMORY	TECHNOLOGY	DDR5
  	MAX. CAPACITY	Up to 96 GByte
  GRAPHICS	GRAPHICS CORE	Intel® Iris® Xe Graphics or Intel® UHD Graphics
  	MAX. RESOLUTION	7680 x 4320 @ 60Hz

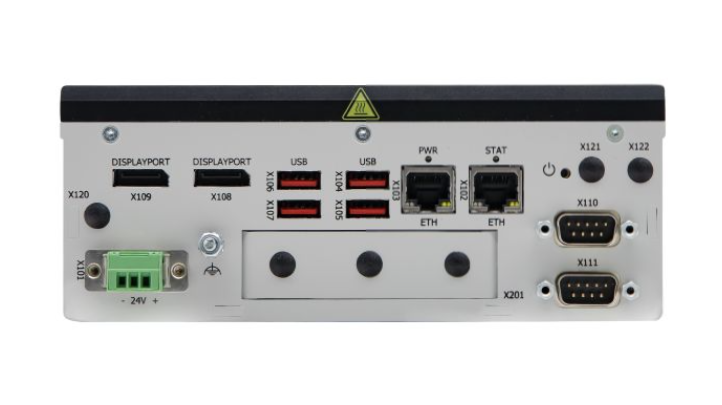

  INTERFACES	GRAPHICS PORTS	2x DisplayPort
  	USB	4x USB 3.2
  	ETHERNET	2x 2.5 GbE
  	SERIAL PORTS	2x COM ports RS232
  	BUTTONS/LED	Power Button & LED, Standby LED
  OPTIONAL	WIRELESS	Option for WI-FI 6 or LTE/5G
  	I/O EXPANSION	Option for Ethercat, Dual CAN, additional GbE and DisplayPort, COM ports, 8x GPIO/DIO or Audio
  STORAGE	M.2 SSD	Up to 2 TByte NVME via M.2 Key M
  EXPANSION	SLOT 1	1x M.2 Key M 2280 socket (storage)
  	SLOT 2	1x M.2 Key E 2230 socket
  	SLOT 3	1x M.2 Key B Type 2242/3042/3052/2280 socket
  SOFTWARE	OPERATING SYSTEM	Win10 IoT Enterprise, Win 11 IoT Enterprise, Linux Debian
  	TOOLSET	KontronOS, KontronGrid, Kontron FabEagle®Connect
  MECHANICAL	CONSTRUCTION	Steel
  	MOUNTING	DIN RAIL, Bookmount
  	DIMENSIONS	180 x 70 x 123 mm (7.09” x 2.76” x 4.84”)
  	WEIGHT	Approx. 2.0 kg (4.41 lbs)
  ENVIRONMENT	COOLING	Fanless
  	TEMPERATURE	Standard: 0 °C to +60 °C / Extended: -40 °C to +60 °C
  	HUMIDITY	93 % @ 40 °C non-condensing
  APPROVALS	CERTIFICATIONS	CE, UL 61010, CB, FCC
