In many factories the control computer gets too hot, drops connections, or cannot keep up with fast data. When a machine stops because the PC fails, production slows and costs rise. You need a sturdy, quiet computer that works in dusty, hot places and still runs the control software smoothly. The KEB C6 P34 Box IPC Industrial Box PC Machine Control Automation Computer is built to stay cool, stay connected, and keep your line moving.

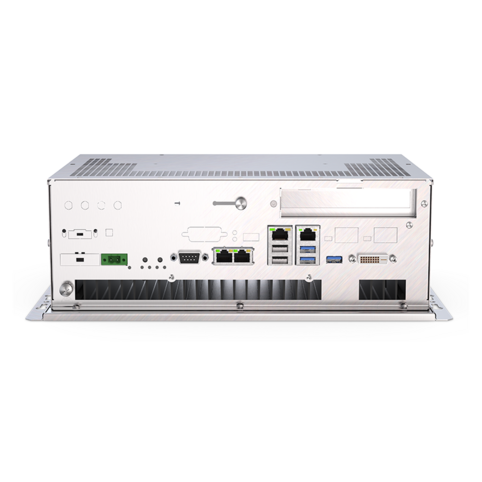

KEB C6 P34 Box IPC Industrial Box PC Machine Control Automation Computer with KEB - Power Your Production
This is a fanless industrial PC designed for machine control and automation. It runs on an Intel Core i5-6440EQ processor, so you get fast calculations for motion control, vision, or data logging. Factories often lose time because ordinary PCs overheat or need many cables. With KEBs all-in-one board you get four Gigabit Ethernet ports, USB 3.0, serial RS232 and a DVI-D video output, all in a sealed IP66 case. The computer runs on 18-32 VDC, fits into tight panels, and never needs a fan replacement.
Usages
The box fits into CNC machines that need precise motion control. It can be mounted in packaging lines to run HMI screens and collect sensor data. Use it in oil-field equipment where dust and temperature are high, or in warehouse robots that require reliable Ethernet communication. Any place that demands a compact, rugged PC for automation will benefit from this unit.
Benefits
- Fanless design keeps noise down and eliminates moving parts.
- IP66 front panel protects against dust and water spray.
- Four Gigabit Ethernet ports enable fast, reliable networking.
- Wide temperature range (0 C-50 C) ensures stable operation.
- Integrated power input (18-32 VDC) matches most industrial supplies.
Key Features
- Intel Core i5-6440EQ, 2.7 GHz (3.4 GHz Turbo)
- 4 GB DDR4 RAM, expandable via SODIMM
- 32 GB internal mSATA SSD for OS and runtime
- 16 GB cFast slot for project data storage
- Four Gigabit Ethernet ports with Jumbo Frame support
- Three USB 3.0 and two USB 2.0 ports
- Serial RS232 interface for legacy equipment
- DVI-D video output for 12.1-24-inch displays
- Windows Embedded Standard 7P 32-bit pre-installed
- COMBIVIS Studio HMI runtime and COMBIVIS Connect remote control
- CE and cULus listed certifications for safety
- IP66 protection class on front panel
Specifications
| Processor |
Intel® Core™ i5-6440EQ, 2.70 GHz (3.40 GHz Turbo), 6MB cache, 4 cores, 4 threads, Soldered |
| System Memory |
4 GB RAM (1 x SODIMM DDR4-2133) |
| Graphic Controller |
Intel® HD Graphics 510, 950MHz (integrated) |
| Mass Memory (mSATA) |
32 GB (Internal, for OS and runtime) |
| Mass Memory (cFast) |
16 GB (Expandable, for project memory) |
| Input Voltage |
18 – 32 VDC |
| Operating System |
Windows Embedded Standard 7P 32-Bit |
| HMI Software |
COMBIVIS Studio HMI runtime |
| Remote Control |
COMBIVIS Connect™ |
| Display Options |
12.1″ to 24″ (Capacitive or Resistive) |
| Screen Formats |
16:9 Wide or 4:3 |
| Certifications |
CE (EN 55022, 61000, 55024, 60950-1), cULus LISTED (61010) |
| Protection Class |
IP66 (Front Panel) |
