Imagine a production line that never stalls because the computer cant keep up. The KEB C6 P34 IPC Industrial PC High-End Machine Control Automation Computer is built for exactly that need. It is a rugged industrial PC that runs the control software for machines, robots and conveyors. When a standard PC fails under dust, heat or vibration, you lose time and money. This device gives you the power and reliability you need to keep your factory moving.

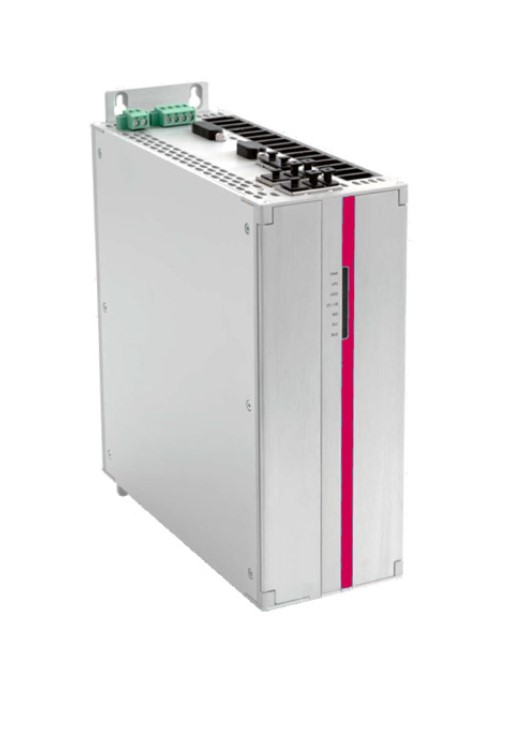

KEB C6 P34 IPC Industrial PC High-End Machine Control Automation Computer
Many factories struggle with computers that cannot handle real-time control or that break down in harsh environments. Without a stable controller, production speed drops and safety can be compromised. The KEB C6 P34 IPC solves this by delivering a fanless, IP66-rated platform that runs Windows 10 IoT Enterprise and supports Ethernet, EtherCAT and serial links. It gives you continuous operation, fast data processing and easy integration with existing automation software. The system also provides isolated power input so it works safely with a wide range of industrial voltages.
Usages of KEB
The unit fits into robotic cells that need precise motion control, into CNC machines that require high-speed data exchange, and into packaging lines that demand reliable HMI screens. It can also be used in material handling systems, in oil-field monitoring stations, and in any application where a compact, durable computer must communicate with PLCs and sensors. Engineers choose it for assembly robots, palletizers, extrusion machines and other high-end automation equipment.
Benefits
- Silent fanless design keeps the work area quiet and reduces maintenance.
- IP66 front panel protects against dust and water, so downtime is minimal.
- Built-in Intel i5 processor handles complex control algorithms without lag.
- Multiple USB and Ethernet ports simplify wiring to sensors, drives and HMI panels.
- Windows 10 IoT Enterprise provides a familiar OS and long-term support.
Key Features
- Fanless design for silent, maintenance-free operation.
- Industrial-grade durability with IP66 front panel protection.
- Capacitive or resistive touch options for flexible operator interaction.
- Front USB interface for easy device connectivity.
- Supports COMBIVIS software suite for HMI and remote control.
- Intel Core i5-6440EQ processor, 2.70 GHz (3.40 GHz Turbo).
- 4 GB DDR4 RAM for smooth multitasking.
- 60 GB mSATA storage plus expandable CFast slot.
- Four Ethernet ports (10/100/1000 Mbps) with EtherCAT support.
- USB 3.0 (3) and USB 2.0 (2) ports on the back.
- RS232 serial port and optional isolated RS232/422/485 + USB add-on.
- Isolated 18-32 V DC power supply for safe industrial use.
Specifications
| CPU: Processor |
Intel® Core™ i5-6440EQ, 2.70 GHz (3.40 GHz Turbo), 6 MB smart cache, 4 cores, 4 threads, Soldered on-board |
| CPU: System memory |
RAM 4 GB (2 x SODIMM DDR4-2133) |
| CPU: Graphic controller |
Intel® HD Graphics 510 integrated into Intel® Celeron™ microprocessor, 950 MHz) |
| Mass memory: mSata |
60 GB for operating system and runtime environments (internal, not removable) |
| Mass memory: CFast slot |
30 GB or expandable memory sizes as project memory for free use (Windows 10) |
| Operating data: Power supply |
18 … 32 V DC (isolated power supply) |
| Operating environment |
0 … 50 °C, Rel. humidity 80 % (without condensation) |
| Storage conditions |
-20 … 60 °C, Rel. humidity 80 % (without condensation) |
| Protection class |
IP66 front |
| Operating system |
Microsoft Windows 10 IoT Enterprise 2019 - LTSC |
| Approvals |
CE (EN 55022, EN 61000-3-2/3, EN 55024, EN 60950-1), cULus LISTED (UL61010) |
| Panel versions |
Resistive, Wide resistive, Wide capacitive |
| Interface: Ethernet / EtherCAT |
4 x Ethernet 10/100/1000 Mbps (3 x Intel® I210 + 1 x Intel® I219LM) |
| Interface: USB on back |
3 x USB 3.0 (Typ A), 2 x USB 2.0 (Type A) |
| Interface: Serial interface |
1 x RS232 (DB9M) |
| Interface: Monitor output |
1 x DVI-D |
| Interface: Expansion slot |
1 x PCI (available on S1 – Size 1 only) |
| Interface: Add-on interface |
1 x RS232/422/485 opto isolated + 1 x USB 2.0 (Type -A) |
