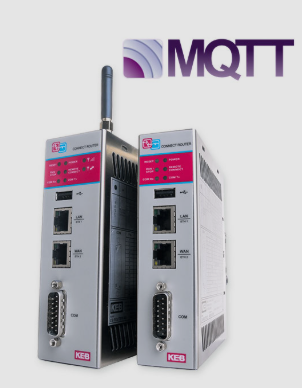

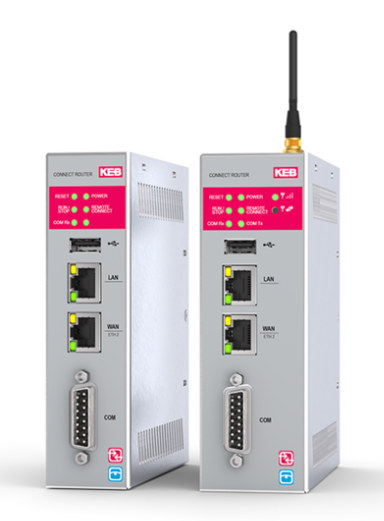

KEB MQTT IoT Edge Gateway 4G Cellular ARM Cortex A8 Industrial Gateway

Imagine a factory floor where data stops at the edge, causing delays and lost profit. The KEB MQTT IoT Edge Gateway 4G Cellular ARM Cortex A8 Industrial Gateway brings that data to the cloud instantly, keeping your machines talking and your decisions fast. If you struggle with unreliable connections or slow data transfer, this gateway is the tool you need to stay ahead.

KEB MQTT IoT Edge Gateway 4G Cellular ARM Cortex A8 Industrial Gateway

The biggest problem for many industrial sites is a broken link between sensors and cloud services. When data cannot travel quickly, you lose real-time insight and risk equipment failure. This matters because every minute of downtime costs money and reputation. The KEB gateway solves the issue with a built-in 4G cellular modem, MQTT support, and a rugged ARM Cortex A8 processor that moves data reliably and securely to any cloud platform.

Benefits

• Instant cloud connectivity keeps your dashboards up to date.
• Built-in MQTT agent simplifies integration with AWS, Azure or private clouds.
• Rugged design tolerates temperature swings from 0 C to 59 C.
• DIN-rail mounting fits easily into existing control panels.
• Low power consumption reduces operating costs.

Usages

Use this gateway in a manufacturing line to collect sensor data and send it to a cloud analytics platform. Deploy it in a remote wind farm to monitor turbine performance where wired networks are not practical. Install it in a smart building to gather HVAC and lighting data for energy optimization. It also works in logistics hubs to track pallet movement and temperature during transport.

Key Features

• ARM Cortex A8 Freescale i.MX535 1 GHz CPU
• Microsoft Windows Embedded Compact 7 OS
• 512 MB RAM and 256 MB NAND flash for OS
• 2 GB or 4 GB eMMC solid-state storage
• 4G/3G/2G quadriband cellular modem
• Ethernet 10/100 Mbps WAN and LAN ports
• USB 2.0 host for peripheral devices
• Optoisolated RS-232/422/485 serial port
• Mini-SIM slot with push-push mechanism
• SMA antenna connector for diversity antenna
• IP20 protection class for indoor use
• Optional MQTT push agent for AWS, Azure, and other clouds

Specifications
