In modern factories the control system must run fast, stay reliable and work in harsh temperature. When a PC slows down or fails, the whole line can stop, causing loss of money and missed deadlines. The Kontron KBox C-104-TGL Powerful high-end industrial PC solves this by delivering strong processing power, fanless cooling and built-in time-sensitive networking, so your machines keep running without interruption.

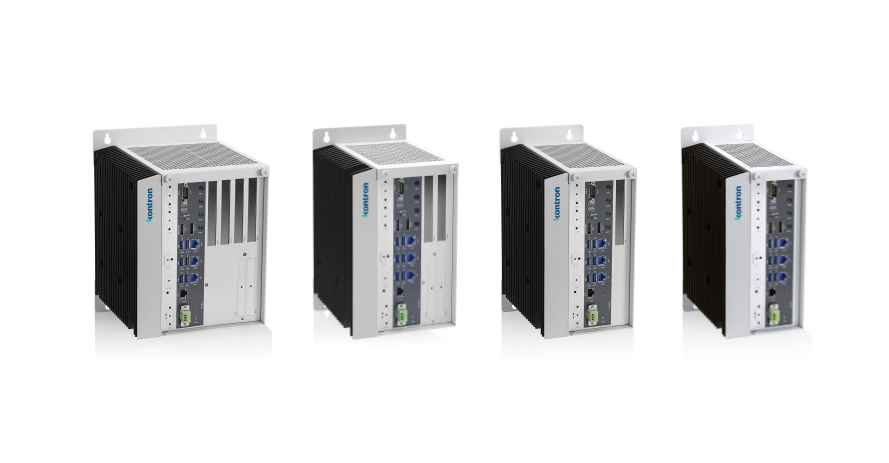

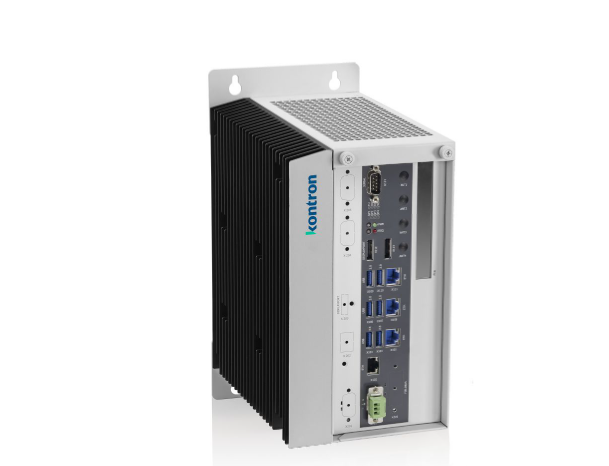

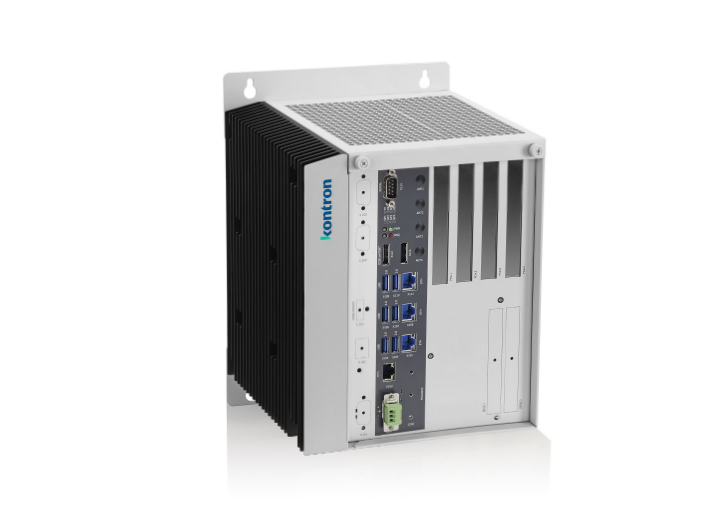

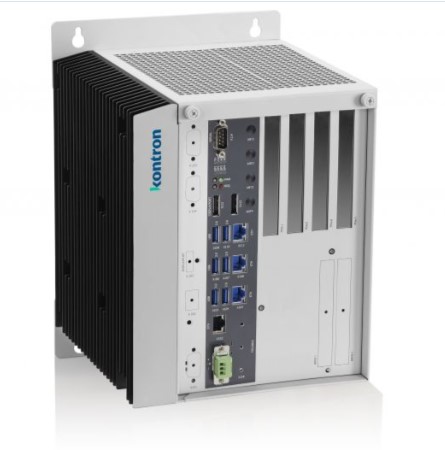

Kontron KBox C-104-TGL Powerful high-end industrial PC with Kontron
Meet the engine that keeps your smart factory moving. This box PC is built for demanding edge workloads and real-time applications. It uses 11th-generation Intel Core or Xeon W processors, up to eight cores, and supports Intel Time Coordinated Computing. If you need a computer that can handle high bandwidth, precise timing and long-term uptime, this Kontron solution gives you exactly that.
Usages
The KBox C-104-TGL fits inside control cabinets and can run machine control software, inspection stations, and AI-based vision systems. It works as a soft PLC platform when you add the optional NVRAM module and fieldbus extensions. The four 2.5 GbE ports with TSN let you synchronize robots or conveyors in a smart factory. You can also add 4G/5G or Wi-Fi 6 modules for remote monitoring.
Benefits
- Runs without fans, so dust and heat cause fewer failures.
- Provides precise timing for coordinated motion control.
- Supports up to 64 GB RAM for large data sets and AI models.
- Offers redundant power options for maximum uptime.
- Easy to mount on a wall, saving space in tight cabinets.
Key Features
- 11th-gen Intel Core i7 or Xeon W processors.

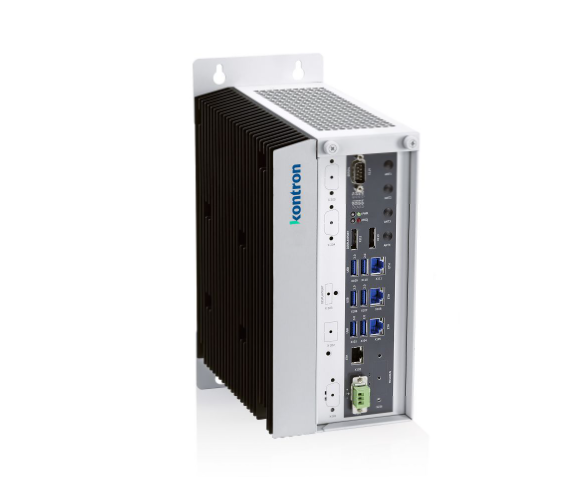

- Four 2.5 GbE ports with TSN support.
- Three USB 3.0 and three USB 2.0 ports.
- Two COM ports with optional RS-485.
- Up to four SATA slots and one M.2 slot.
- Four PCIe, one mPCIe and three M.2 expansion slots.
- Fanless design operating up to +65 C.
- Optional Hailo-8 AI accelerator for edge AI.
- Redundant power supply options for critical systems.
- Supports Windows 10 LTSC and Linux operating systems.
Specifications
| Manufacturer |
Kontron |
| Product Category |
Industrial Box PC |
| Product Type |
Industrial PC |
| Processor Brand |
Intel |
| Supported Processors |
Intel Celeron 6600HEIntel Core i3-11100HEIntel Core i5-1145GRE /
Intel Core i5-11500HEIntel Core i7-1185GRE / Intel Core i7-11850HEIntel Xeon W-11555MRE /
Intel Xeon W-11865MRE
|
| Maximum CPU Frequency |
1.5 GHz / 1.6 GHz / 2.4 GHz / 2.6 GHz |
| Maximum RAM Capacity |
64 GB |
| Installed RAM |
0 GB (Barebone) |
| Memory Type |
DDR4 |
| Storage |
1 × 2.5" drive bay1 × M.2 slot |
| USB Ports |
3 × USB 2.03 × USB 3.0 |
| LAN Ports |
4 × LAN |
| Serial Ports |
1 × RS-232/422/485 |
| Mounting Style |
Wall Mount |
| Dimensions (W × D × H) |
236 mm × 210 mm × 117 mm |
| Operating Temperature |
-40 °C to +65 °C |
| Supply Voltage (Min–Max) |
17 V – 36 V DC |
| Supported Operating Systems |
Windows 10 LTSCLinux |
