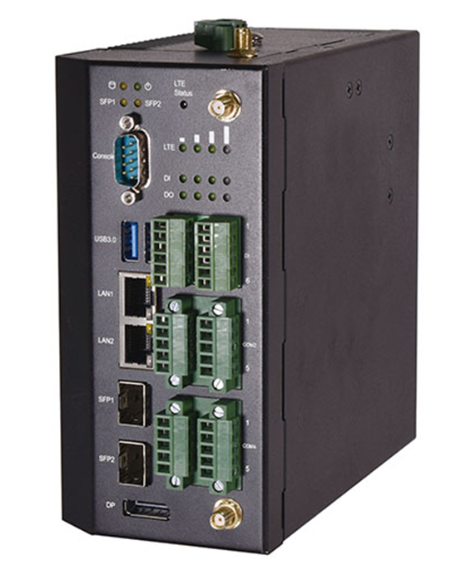

Lanner Fanless Industrial Gateway LTE WiFi 6 DIN Rail Atom CPU

Industrial sites often need a reliable way to collect data from machines that are far from a stable network. When the connection drops, production slows and costly downtime occurs. The Lanner Fanless Industrial Gateway LTE WiFi 6 DIN Rail Atom CPU gives you a rugged, fanless computer that stays online through LTE and Wi-Fi 6, keeping your data flowing without interruption.

Lanner Fanless Industrial Gateway LTE WiFi 6 DIN Rail Atom CPU with Lanner

Meet the Lanner gateway that blends a powerful Intel Atom CPU with built-in LTE and Wi-Fi 6. It is designed for harsh factories, remote stations, and smart buildings where space is limited and heat must be low. You often struggle with noisy fans and limited I/O, and this device removes the fan, adds many ports, and lets you mount it on a DIN rail for easy wiring.

Usages

Use it to connect PLCs in a manufacturing line, to gather sensor data from a wind farm, or to provide secure internet for a retail kiosk. It works well in oil-field monitoring, traffic camera stations, and building automation where a compact, fanless box is required.

Benefits

• Keeps your system running even when the main network fails.
• Saves space with a small DIN-rail design.
• Runs quietly because it has no fan.
• Supports fast Wi-Fi 6 and LTE for reliable wireless links.
• Offers many ports so you can link sensors, cameras, and controllers directly.

Key Features

• Intel Atom X7-E3950 / N3350 CPU, 4 or 2 cores, 1.6 GHz / 1.1 GHz.
• Up to 8 GB DDR3L memory, 1600 MT/s.
• 64 GB eMMC storage plus 1 SATA and 1 mSATA slots.

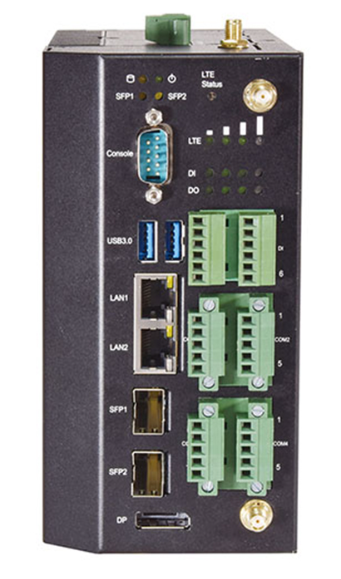

• Four GbE RJ45 ports with optional SFP, 10/100/1000 Mbps.
• Wi-Fi 6 (M.2 E-Key) and LTE (M.2 B-Key with Nano-SIM).
• TPM 2.0 security module.
• 1.5 kV magnetic isolation protection.
• 4 digital inputs, 4 digital outputs (24 V, 200 mA).
• Two isolated RS-232/422/485 ports and one isolated CAN 2.0A/B port.
• Two USB 3.0 Type-A ports, one DB9 console, one DP display port.

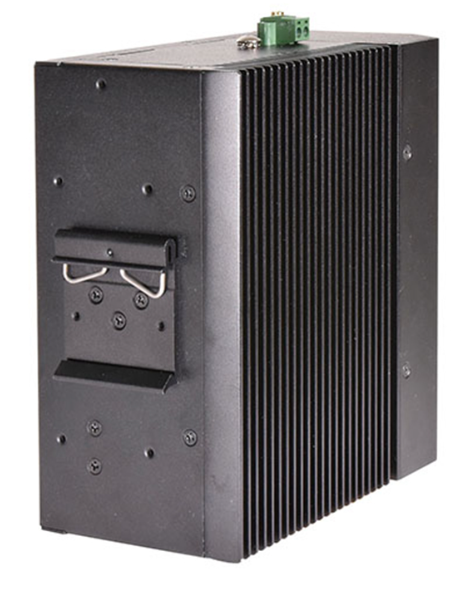

• Fanless aluminum-steel construction, 2 kg weight.

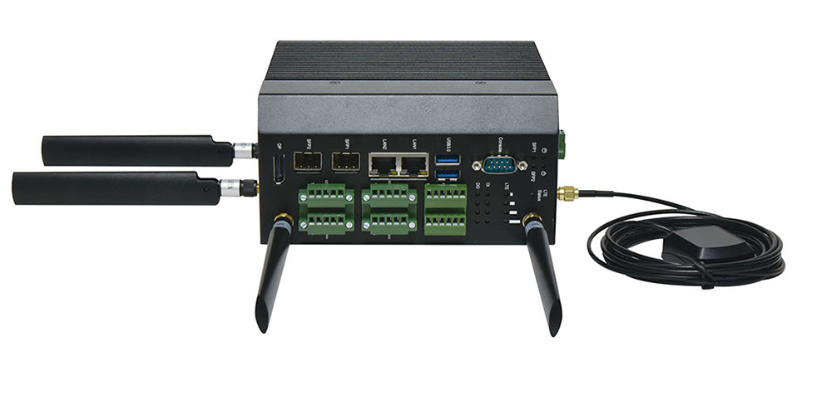

• DIN-rail mounting, optional wall mount, dual 12 V/24 V power inputs.

Specifications
