Tired of network gear that stops working in cold factories or outdoor sites? The Lanner LEC-6032E Industrial Grade PoE Network Appliance with Intel Atom E3845 is built for harsh places. It gives you reliable power over Ethernet and fast data links where you need them most. If your cameras or sensors keep dropping connection because of temperature or vibration, this box solves that.

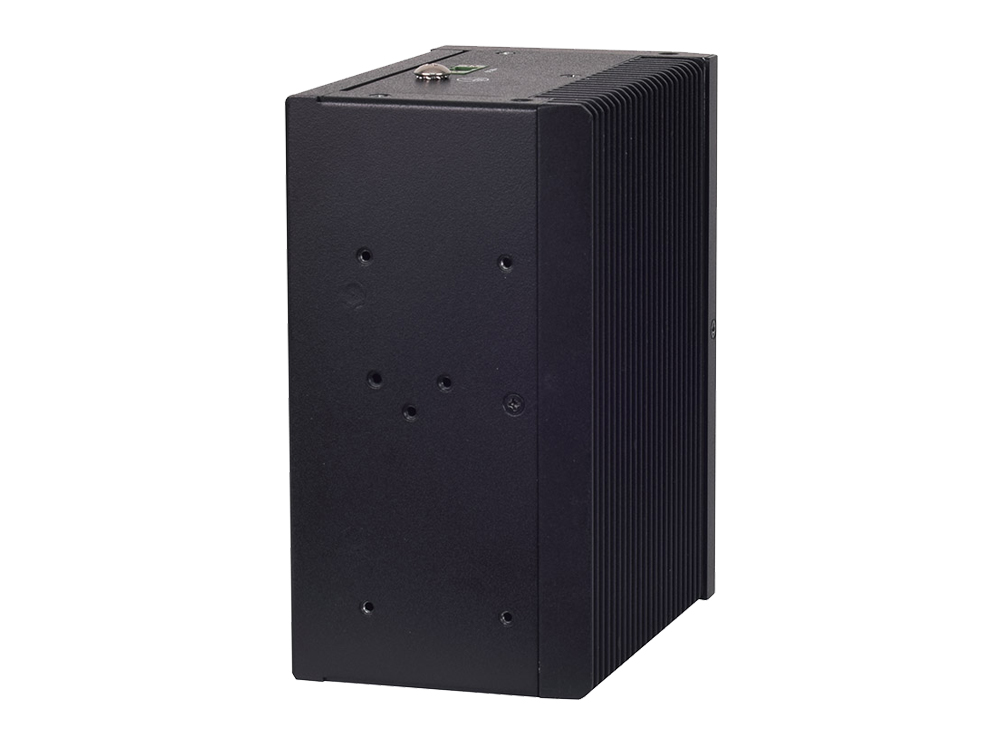

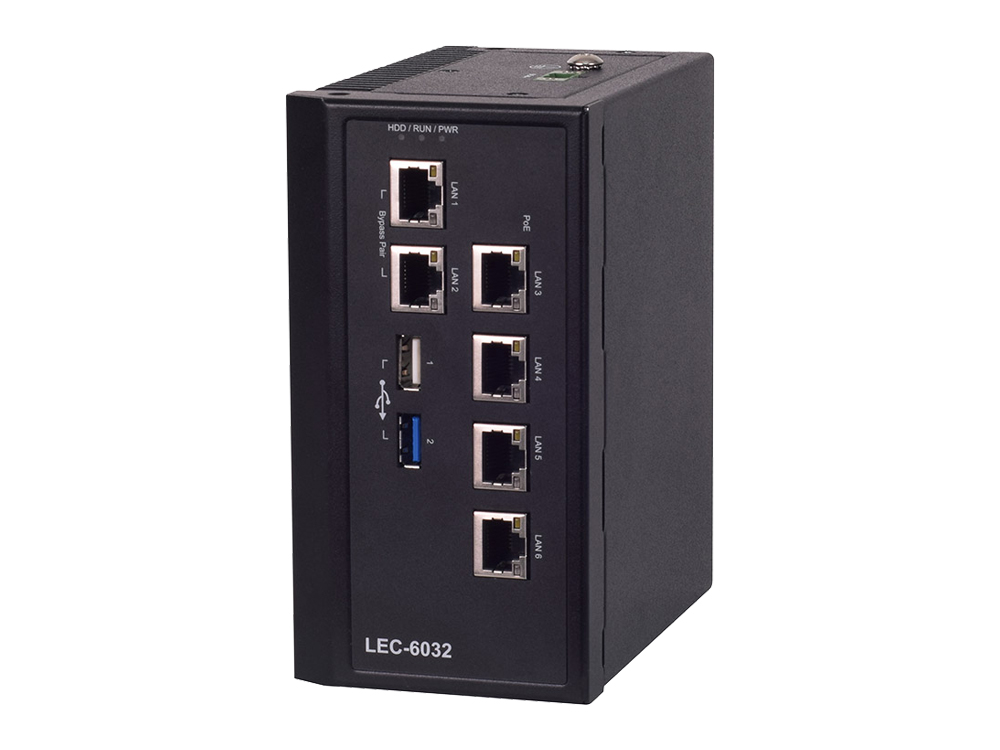

Lanner LEC-6032E Industrial Grade PoE Network Appliance with Intel Atom E3845
Industrial sites often suffer from network downtime caused by extreme heat, cold, or electrical noise. When a single link fails, production can halt and security footage may be lost. The Lanner appliance removes that risk by offering fanless cooling, a wide operating temperature range from -20 C to 55 C, and built-in magnetic isolation that protects the LAN ports from high voltage spikes. With four PoE ports and two gigabit Ethernet ports, you get both power and data on the same cable, simplifying wiring and keeping your system running without interruption.
Usages of Lanner
The appliance fits neatly into oil refineries where temperature swings are common, delivering power to surveillance cameras and sensor arrays. In electrical substations it provides a rugged link that survives lightning-induced surges. Manufacturing plants use it to connect machine-vision stations on the shop floor without adding fans that could collect dust. Remote wind farms and solar farms rely on the device to keep monitoring equipment online even when the enclosure is mounted on a DIN rail in a weather-exposed cabinet.
Benefits
- Fanless design means no moving parts to fail, so uptime stays high.
- Four PoE ports let you power cameras or sensors without extra injectors.
- Wide temperature tolerance lets you install the unit in freezers or hot roofs.
- Magnetic isolation protects your network from dangerous voltage spikes.
- Compact size and DIN-rail or wall mount options save space in crowded panels.
Key Features
- Fanless industrial grade PoE network appliance
- Intel Atom E3845 1.91 GHz processor
- Operating temperature -20 C to 55 C
- 2 GbE ports plus 4 PoE (IEEE 802.3af) ports
- 1.5 kV magnetic isolation on LAN ports
- Gen 3 LAN bypass with one pair
- USB 2.0 and USB 3.0 host connectors
- Supports DIN-rail and wall mounting
- 8 GB DDR3L memory, expandable via SODIMM
- Watchdog timer for automatic system reset
Specifications
| CPU |
Intel Atom E3845 |
| BIOS |
AMI SPI Flash BIOS |
| Memory Technology |
DDR3L, 1333 MHz |
| Memory Capacity |
8 GB |
| Memory Socket |
1 × 204-pin SODIMM |
| SATA Storage |
1 × SATA connector, optional 2.5” drive bay |
| Ethernet Controller |
Intel i210-IT |
| Graphic Controller |
Intel HD Graphics |
| Default LAN |
2 × GbE + 4 × IEEE 802.3af PoE ports |
| Bypass |
1 pair |
| Magnetic Isolation Protection |
1.5 KV built-in |
| Serial Ports |
1 × Internal pin header (RS-232 only) |
| USB 2.0 |
1 × Type A |
| USB 3.0 |
1 × Type A |
| Reset |
Internal reset button |
| Operating System |
Windows 7, Windows 7 Embedded Kernel 3.X |
| Certifications |
CE/FCC, Class A |
| Storage Temperature |
-40°C to 85°C |
| Operating Temperature |
-20°C to 55°C |
| Operating Humidity |
5% to 95% (non-condensing) |
| Dimensions (W × H × D) |
78 mm × 146 mm × 127 mm (3.07" × 5.75" × 5.00") |
| Weight |
1.25 kg (2.75 lbs) |
| Watchdog |
Watchdog timer 256 level time interval system reset, software programmable |
| LEC-6032E |
DIN rail fanless Box PC with Intel Atom E3845 processor, 2 × GbE RJ45 with 1 pair Gen 3 bypass, 1 × USB 3.0 host, 4 × GbE PoE, 1 × USB 2.0 host |
