Tired of blurry video and echo that make every meeting feel like a struggle? Logitechs Rally Bar + Tap IP turns your medium-size room into a crystal-clear conference space. With Logitech technology you get 4K Ultra HD video at 30 fps, automatic PTZ, and built-in echo cancellation, so you hear every voice and see every detail without juggling cables or extra hardware. Install it once with a single PoE connection and start meeting with confidence.

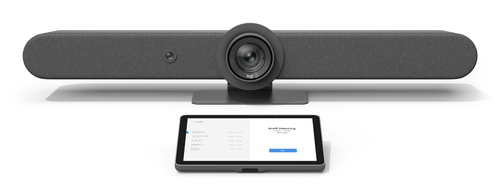

Logitech Rally Bar + Tap IP, 4K Ultra HD, 30 fps, Graphite

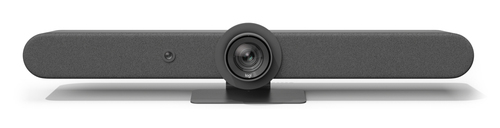

The Rally Bar + Tap IP is an all-in-one video-conferencing system designed for medium to large rooms. The bar houses a 4K camera, six microphones and speakers, while the Tap IP provides a 10.1-inch touch controller that runs meetings directly from the device.
Benefits
- Clear 4K video eliminates missed facial cues.
- Automatic PTZ follows speakers, no manual adjustment needed.
- Built-in echo cancellation makes every voice sound natural.
- Single PoE cable reduces clutter and installation time.
- Touch controller lets you start, mute or share with a tap.
- Expandable design supports larger rooms when needed.
Features
- 4K Ultra HD camera with 90 field of view
- Six omnidirectional microphones, 4.5 m pickup range
- Integrated speakers, 92 dB output level
- PTZ control, -15 to 15 tilt, -25 to 25 pan
- 30 fps maximum frame rate
- Single PoE power and network connection
- 10.1-inch capacitive touchscreen on Tap IP
- Kensington lock slot for cable security
Specifications
| Performance |
| PTZ control |
Yes |
| Tilt angle range |
-15 - 15° |
| Pan range |
-25 - 25° |
| Product colour |
Graphite |
| Product type |
Group video conferencing system |
| Video |
| Maximum frame rate |
30 fps |
| Supported video modes |
576p, 720p, 900p, 1440p, 2160p |
| HD type |
4K Ultra HD |
| Audio |
| Echo cancellation |
Yes |
| Microphone pick-up range |
4.5 m |
| Noise reduction |
Yes |
| RMS rated power |
8 W |
| Sample rates |
0 - 48 kHz |
| Audio beamforming |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Line-out impedance |
4 Ω |
| Output level |
92/99 dB |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB connector type |
USB Type-A, USB Type-C |
| HDMI input ports quantity |
1 |
| HDMI output ports quantity |
2 |
| HDMI ports quantity |
3 |
| Interface module |
| Interface module RJ-45 ports quantity |
1 |
| Network |
| Security algorithms |
128-bit AES |
| Supported network protocols |
IPv4, IPv6 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Camera |
| Remote control interface |
Bluetooth |
| Diagonal field of view |
90° |
| Vertical field of view |
52.2° |
| Horizontal field of view |
82.1° |
| Display |
| Oleophobic coating |
Yes |
| Display brightness |
400 cd/m² |
| Viewing angle, horizontal |
85° |
| Viewing angle, vertical |
85° |
| Touchscreen type |
Capacitive |
| Touchscreen |
Yes |
| Contrast ratio (typical) |
1000:1 |
| Display resolution |
1280 x 800 pixels |
| Display diagonal |
25.6 cm (10.1") |
| Display |
IPS |
| Microphone |
| Number of microphones |
6 |
| Sound pressure level (max) |
90 dB |
| Microphone direction type |
Omnidirectional |
| Microphone frequency |
90 - 16000 Hz |
| Microphone sensitivity |
-36 dB |
| Battery |
| Battery capacity |
220 mAh |
| Computer system |
| Mac operating systems supported |
MacOS |
| Windows operating systems supported |
Yes |
| Features |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Motion sensor |
Yes |
| Telepresence |
No |
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Power |
| Power plug type |
Type G |
| Battery capacity |
220 mAh |
| Battery technology |
Lithium |
| Number of batteries supported |
1 |
| DC input voltage |
19 V |
| Current |
4.754 A |
| AC input voltage |
100 - 240 V |
| Power source type |
AC |
| Weight & dimensions |
| Weight |
7.08 kg |
| Height |
164 mm |
| Depth |
160 mm |
| Width |
910 mm |
| Interface module weight |
1 kg |
| Interface module dimensions (W x D x H) |
246.2 x 171.3 x 56.1 mm |
| Packaging data |
| Package weight |
13 kg |
| Package height |
314 mm |
| Package depth |
1007 mm |
| Package width |
264 mm |
| Packaging content |
| Packaging content |
{loc-value} |
| Camera included |
Yes |
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| HDMI cable length |
2 m |
| Power cable length |
2.5 m |
| Cables included |
AC, DC, HDMI, USB Type-A to USB Type-C |
