Manufacturing lines often need a reliable computer that can survive dust, heat and constant vibration. When a PC fails, the whole production line can stop, costing time and money. The Marposs E9066E-bb Embedded Industrial PC solves this problem by offering a fan-less, disk-less design that runs cool and never needs routine maintenance. It fits into tight spaces and keeps your data acquisition and quality control software running without interruption.

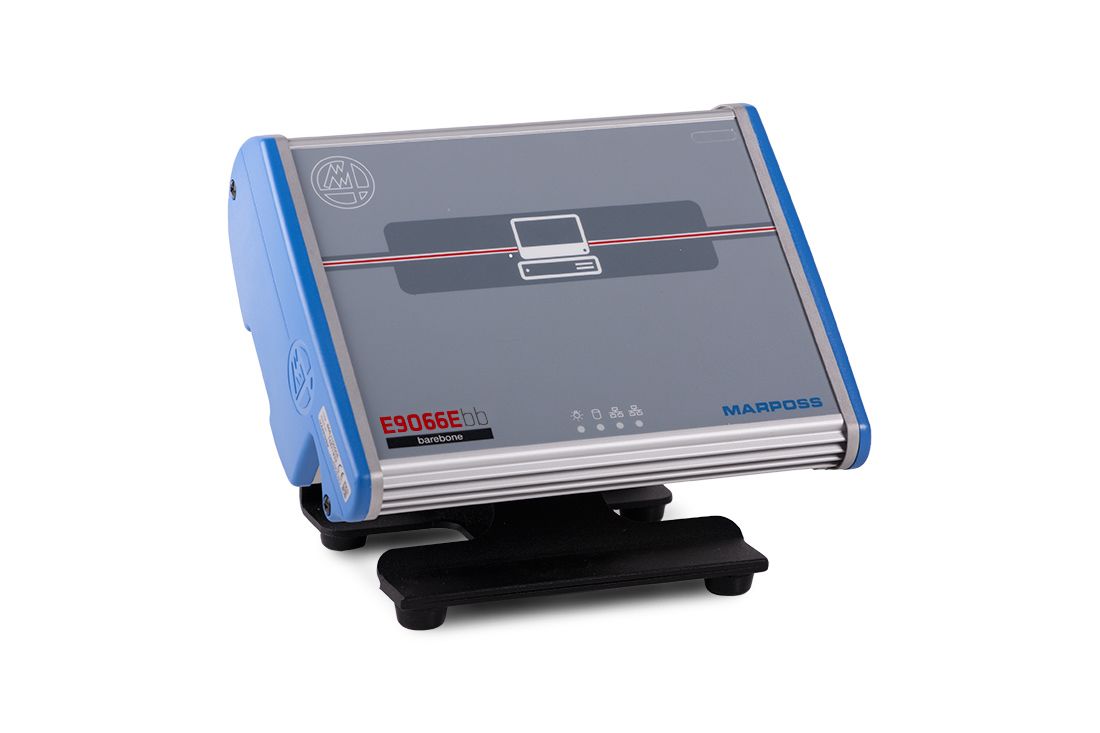

Marposs E9066E-bb Embedded Industrial PC with Marposs
Imagine a small computer that never overheats, never needs a fan replacement and never loses data because of a hard-drive crash. That is what this Marposs device does. It is built on an Intel quad-core processor and runs Windows 10 IoT Enterprise, ready to host the Marposs Quick SPC measurement suite. If your shop floor suffers from frequent downtimes due to fragile PCs, this rugged box gives you a clear, worry-free solution.
Usages
The E9066E-bb fits into any environment where data must be collected in real time. Use it on a CNC machine to log tool wear, on a stamping press to capture force curves, or on a quality inspection station to run SPC analysis. It also works with the Marposs GagePod distributed data acquisition system, making it ideal for multi-sensor setups on the factory floor.
Benefits
- Zero fan noise and no moving parts, so the unit lasts longer.
- Solid-state storage prevents hard-drive failures and tolerates high temperatures.
- Compact size lets you mount it on DIN rails or bench stands easily.
- Integrated UPS keeps the system alive during short power cuts.
- IP65 front protection shields the computer from dust and splashes.
Key Features
- Intel J1900 Quad-Core 2.0 GHz processor, 64-bit.
- 2 GB to 8 GB RAM, expandable for demanding applications.
- 128 GB industrial-grade SSD for fast, reliable storage.
- 15.6-inch HD TFT display with anti-glare coating.
- Two 1 Gbps Ethernet ports for fast network communication.
- Multiple USB ports (four 2.0, one 3.0) for peripherals.
- RS232 serial port for legacy equipment integration.
- Mini-PCI slots for fieldbus or extra Ethernet cards.
- On-board UPS with 12 V battery pack for uninterrupted power.
- Panel-mount and VESA swing-arm options for flexible installation.
Specifications
| Technology |
All-in-one motherboard |
| Processor |
INTEL® J1900 Quad Core 2.0GHz - 64 bit |
| RAM (min - max) |
2GB - 8GB |
| SSD |
128GB (min) |
| Operating System |
Windows 10 IoT Enterprise |
| LCD Type & Size |
15.6" TFT |
| Resolution |
HD (1366x768) |
| Aspect ratio / Contrast |
16:9 / 900:1 |
| Brightness & Backlight |
400 cd/m2 (400 nit) - LED backlight |
| Screen / Touch |
True-flat, impact resistant & anti-glare; 5 wire analog-resistive |
| Protection |
IP65 on front |
| Power Supply |
Nominal 24Vdc (18Vdc ÷ 36Vdc) |
| Ethernet Ports |
2 x 1Gbps (RJ45) |
| USB Ports |
2 x 2.0 (side); 2 x 2.0 (rear); 1 x 3.0 (rear) |
| Serial Port |
1 x RS232C (DBSUB9) |
| Compact Flash |
1 x Type I . SATA III |
| Video Out |
DVI-I (DVI-D + VGA) |
| Video Out Max Res |
1920 x 1200 (24bit per pixel) |
| Bus Expansion |
2 x miniPCI |
| Fieldbus |
miniPCI (In alternative to 3rd Ethernet LAN) |
| UPS |
Integrated on-board |
| UPS Battery Pack |
Pb, 12V/13A max, 2500mA/h |
| Mounting |
Panel mount (standard); Swing-arm VESA on IP54 cabinet |
| Weight |
9.5 Kg (PC + housing) |
| Operating Temp |
0 to 50 °C |
| Relative Humidity |
5 to 80 % (non-condensing) |
