Product Code: SCNR-170

MPN #: MT8227

In a busy warehouse or a noisy factory floor, reading barcodes quickly can be a real headache. Missed or slow reads cause delays, extra labor, and lost productivity. The Marson MT8227 gives you a clear, fast way to capture every 1D and 2D code, even when the label is worn or the light is harsh.

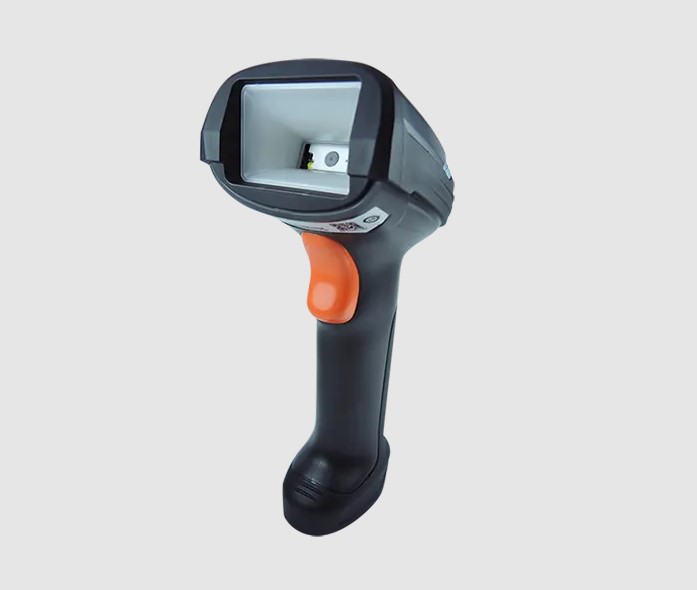

Marson MT8227, 1280 x 800 pixels 1D/2D DPM Industrial Handheld Scanner with Marson

Capture every code, even on the toughest production line. The Marson MT8227, 1280 x 800 pixels 1D/2D DPM Industrial Handheld Scanner with Marson is built for heavy-duty environments. It reads both 1D barcodes and 2D symbols such as QR and Data Matrix in a split second. Operators who struggle with missed scans will find a reliable partner that works under bright sunlight, low-contrast labels, and even after a drop. Plug it into any PC with the USB Type-A connector and start scanning without drivers. It also supports multiple communication modes, so you can connect to legacy systems or modern PCs with ease.





Key Features
    • 1280 x 800 pixel sensor for detailed capture.
    • 3 mil resolution for 1D barcodes.
    • 5 mil resolution for 2D symbols.
    • 46 horizontal and 29 vertical scan angle.
    • 55 pitch and skew tolerance.
    • 360 roll capability for any orientation.

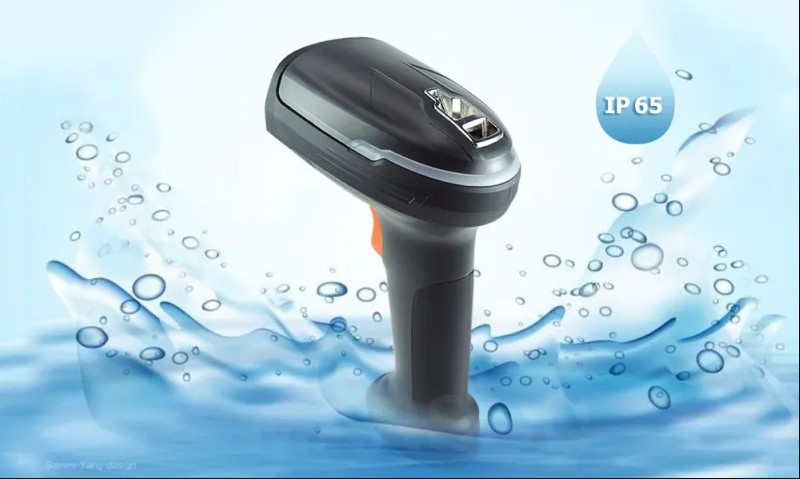

    • IP65 sealed housing protects against dust and water.
    • LED, buzzer, and vibration feedback for instant confirmation.
    • 2 m interchangeable USB Type-A cable.



Specifications
Optic & Performance
Light Source Aimer: 650nm Laser Dot
Light Source Direct Illumination: White LED
Light Source Diffuse Illumination: Red LED, Blue LED
Sensor 1280 x 800
Resolution 3mil (1D)
Resolution 5mil (2D)
Scan Angle Horizontal 46°
Scan Angle Vertical 29°
Pitch Rate ±55°
Skew Angle ±55°
Roll Angle 360°
Print Contrast Ratio 30%
Physical Characteristics
Dimension W181 x D136 x H77 mm
Weight 356g
Color Black
Material ABS
Connector USB Type A
Cable 2M Interchangeable Cable
Trigger Scan Button
Indicator LED, Buzzer, Vibrator
Electrical
Operation Voltage 5.0 VDC ± 5%
Working Current < 430mA
Standby Current < 65mA
Connectivity
Interface/Profile USB HID
Interface/Profile USB VCP
Interface/Profile RS232
User Environment
Operating Temperature 0 ~ 50˚C
Storage Temperature -40 ~ 70˚C
Humidity 5% ~ 95% RH (Non-condensing)
Drop Durability 2.0 M
Sealing IP65
Ambient Light 100,000 Lux (Sunlight)
Decode Capability
Symbologies 1D Symbologies: UPC-A/ UPC-E, EAN-8/ EAN-13, Code128, Code 39, Code 93, Codabar, Plessey, MSI, Interleaved 2 of 5
Symbologies 2D Symbologies: QR Code, Micro QR Code, Data Matrix
Regulatory
ESD Functional after 4KV contact, 8KV air discharge
EMC/RF TBA
Safety Approval IEC60825-1 (Class 1)
Environmental RoHS 2.0
