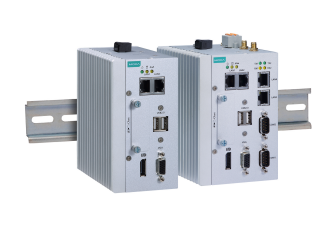

Moxa MC-1100 Industrial Computer Intel Atom E3845 4GB DDR3L DIN Rail

Factories and remote sites often need a small computer that can survive dust, temperature swings and constant vibration. When a standard PC fails, production stops and repair costs rise. The MC-1100 Industrial Computer gives you a rugged, reliable core that fits on a DIN rail, so your control system stays online even in harsh conditions. It runs on low power and offers built-in I/O, making wiring simple.

Moxa MC-1100 Industrial Computer Intel Atom E3845 4GB DDR3L DIN Rail with Industrial

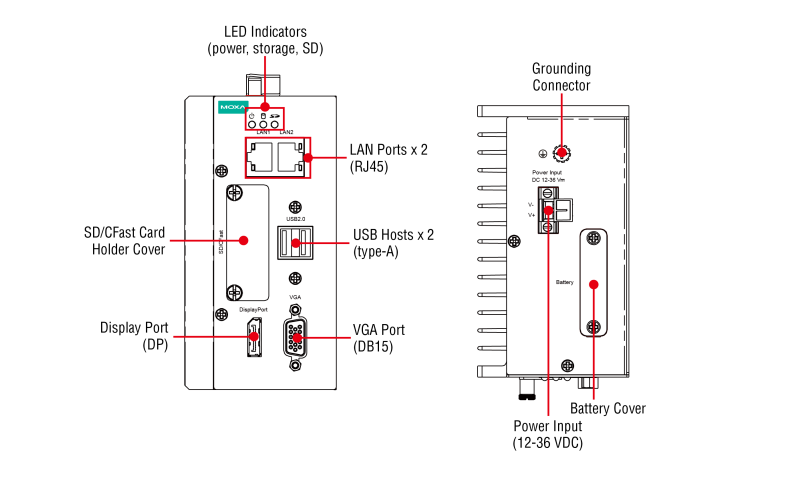

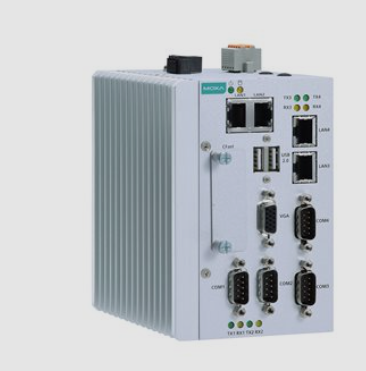

Imagine a controller that never quits, even when the factory floor gets hot or dusty. The MC-1100 is a compact industrial PC built around an Intel Atom E3845 processor. It delivers enough speed for data logging, HMI, and PLC communication while staying within a small metal case. If you struggle with unreliable hardware or need extra serial ports for sensors, this unit solves the problem with four Ethernet ports, four RS-232/422/485 ports, and a CFast storage slot.

Usages

Use it in machine monitoring, conveyor control, and building automation. It fits into electrical cabinets, rail panels, or wall mounts. The built-in digital inputs and outputs let you connect limit switches, alarms, and actuators without extra modules. It also works well for remote telemetry, vending machines, and oil-field monitoring where space and durability matter.

Benefits

• Rugged metal case protects against shock and temperature extremes.
• Four Ethernet ports give fast network redundancy.
• Multiple serial ports simplify connection to legacy devices.
• Low power draw keeps energy costs down.
• Watchdog timer restarts the system automatically if it hangs.

Key Features

• Intel Atom E3845 CPU, 1.91 GHz, 2 MB cache.
• 4 GB DDR3L memory pre-installed, one SODIMM slot.
• CFast storage slot for fast SSD or flash drive.
• Four auto-sensing 10/100/1000 Mbps Ethernet ports.
• Four configurable RS-232/422/485 serial ports (DB9).
• Four digital inputs and four digital outputs for field I/O.
• One mPCIe expansion slot for extra modules.
• TPM 1.2 security chip for data protection.
• VGA video output for local display or debugging.
• Power input 11.4-36 VDC, terminal block connector.
• Operating temperature -40 C to 70 C, humidity 5-95 %.
• Compliant with EN 55032/35, FCC Part 15B, UL 60950-1.
