Tired of running long cables just to control a single computer from another room? The MicroBox-1200A KVM Extender PC with HDMI USB RS232 Wall Mount lets you manage a PC over great distances without the clutter. It combines video, keyboard, mouse, USB and serial signals into one reliable link, so you can keep your workstation where it works best and still stay in control. If you need a clean, secure KVM solution that saves space and time, this device is made for you.

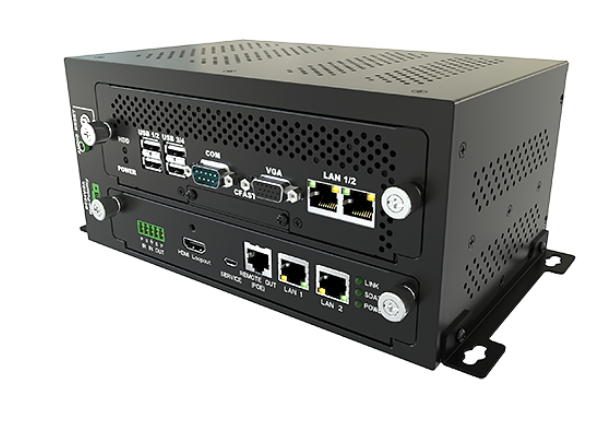

Arista MicroBox-1200A KVM Extender PC with HDMI USB RS232 Wall Mount
Many offices and control rooms struggle with limited desk space and long cable runs that degrade signal quality. When the video becomes fuzzy or the keyboard lags, productivity drops and frustration rises. This industrial PC extender solves the problem by sending full-HD video, USB peripherals and RS-232 data over a single Ethernet cable up to 100 meters. The result is crystal-clear display, instant input response and a tidy installation that fits into any wall or DIN-rail mount.
Benefits
- Extend high-definition HDMI up to 100 m, keeping images sharp.
- Control a PC from a remote desk without moving the machine.
- Reduce cable clutter by combining video, USB and serial into one link.
- Mount securely on a wall or DIN-rail for a professional look.
- Support up to 8 GB RAM and Windows 10 for smooth operation.
Usages
The extender is perfect for factory control panels where space is at a premium, for medical imaging rooms that need reliable video and input, for broadcast studios that require remote PC access, and for schools that want to share a single computer across multiple classrooms. It also works well in retail kiosks, security monitoring stations and any environment where a PC must stay hidden while users interact from a distance.
Key Features
- Intel Celeron J1900 or Atom E3845 processor.
- Intel Gen7 graphics for smooth HDMI output.
- HDMI loop-out and optional VGA second display.
- 4 local USB 2.0 ports and 4-port remote USB hub.
- One RS-232 port on both local and remote sides.
- Two Gigabit Ethernet ports (local) or mixed Gigabit/10-100 hub (remote).
- 24 VDC power supply, max 90 W consumption.

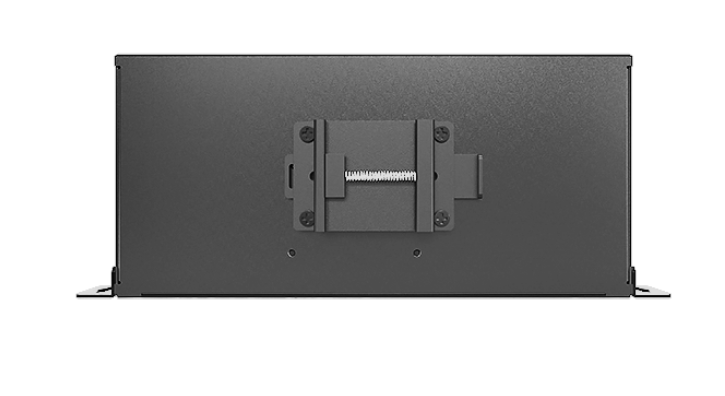

- Wall mount and DIN-rail mounting options.
- Operating temperature 0-50 C, humidity 0-95 %.
- Dimensions 9.80 4.02 5.37 in, weight 6.6 lb.
Specifications
| Model Name |
Model Name |
MicroBox-1200A |
| System |
CPU |
Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU |
| |
Chipset |
(By CPU) |
| |
Memory |
up to 8GB DDR3 SO-DIMM |
| |
Video Controller |
Intel Gen7 Graphics |
| |
Storage Option |
2.5" SSD |
| |
Remote Boot |
ThinManager Ready, PXE |
| Local I/O Communication |

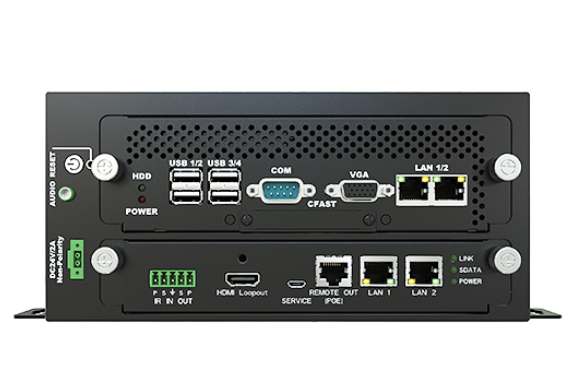

Video Output |
HDMI Loopout, VGA (2nd Display) |
| |
USB Port |
4 x USB 2.0 (Local), 4-port USB Hub (Remote) |
| |
Serial Port |
1x RS-232 Local, 1x RS-232 Remote |
| |
LAN |
2 x Gigabit (Local) or 1x Gigabit (Local)+2x 10/100 Hub (Remote) |
| OS Support |
OS Support |
Windows 10 |
| Receiver I/O Communication |
Video Output |
HDMI |
| |
USB Port |
4-port USB Hub |
| |
Serial Port |
1x RS-232 |
| |
LAN |
2-port 10/100 Ethernet Hub |
| Power / Thermal Specs |
Power Requirement (Max) |
[email protected] |
| |
Power Consumption (Max) |
90W |
| |
Heat Dissipation |
307BTU/hr |
| Physical Information |
Mounting |
Wall Mount / DIN-Rail Mount |
| |
Net Weight |
6.6 Lbs / 2.99 kgs |
| |

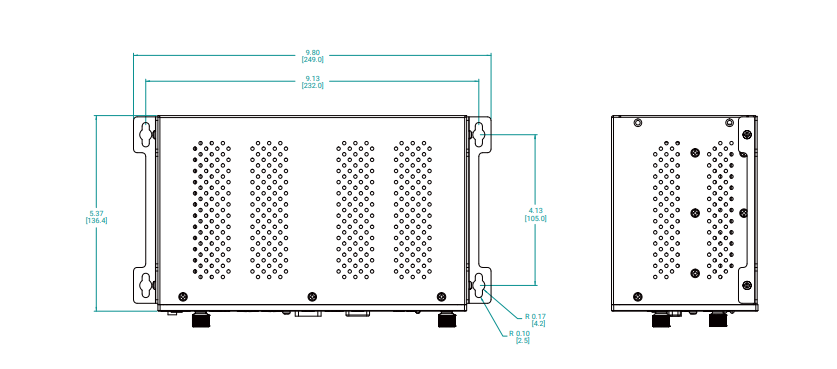

Dimensions (Imperial) |
9.80 x 4.02 x 5.37 inch |
| |
Dimensions (Metric) |
249.0 x 102.0 x 136.4 mm |
| Environmental |
Operating Temperature |
0-50ºC (32~122ºF) |
| |
Storage Temperature |
-20~60ºC (-4~140ºF) |
| |
Relative Humidity |
0~95% |
| Certification |
Certification |
N/A |
