The 48 port champion you’ve been waiting for - now with PoE-out!

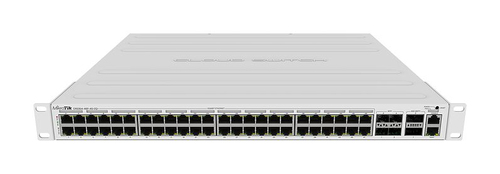

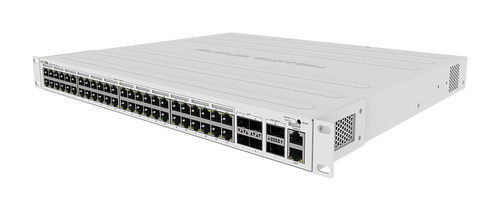

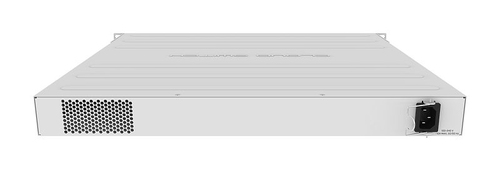

If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.
This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.
CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.
The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
Specifications
| Management features |
| Switch layer |
L3 |
| Switch type |
Managed |
| Ports & interfaces |
| Console port |
RJ-45 |
| QSFP+ module slots quantity |
2 |
| SFP+ module slots quantity |
4 |
| Gigabit Ethernet (copper) ports quantity |
48 |
| Fast Ethernet (copper) ports quantity |
1 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
| 10G support |
Yes |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Design |
| Form factor |
1U |
| Rack mounting |
Yes |
| Performance |
| Flash memory |
16 MB |
| Internal memory |
64 MB |
| Memory type |
Flash |
| Processor model |
Qualcomm Atheros QCA9531 |
| Built-in processor |
Yes |
| Power |
| Power consumption (max) |
800 W |
| Power consumption (typical) |
85 W |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) voltage |
53 V |
| Power over Ethernet (PoE) ports quantity |
48 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
-20 - 60 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
382 mm |
| Width |
443 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Cables included |
AC |
| Packaging data |
| Screws included |
Yes |
| Certificates |
| Certification |
CE/RED, EAC, RoHS |
