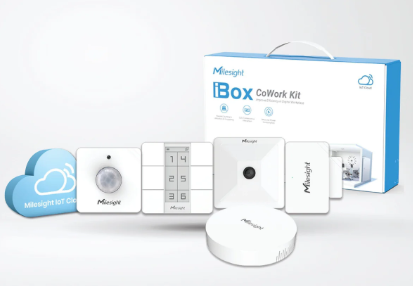

Milesight iBox CoWork Kit-B Smart Office IoT LoRaWAN Automation Kit

Running a modern office means juggling many devices, lights, doors and climate controls. When each item is managed separately, you waste time, lose energy and miss important data about how the space is used. This hurts productivity and raises costs. The Milesight iBox CoWork Kit-B gives you a single, easy-to-install LoRaWAN solution that connects buttons, sensors and controllers, so you can automate and monitor everything from one dashboard.

Milesight iBox CoWork Kit-B Smart Office IoT LoRaWAN Automation Kit with Milesight

Imagine a workspace that reacts to you, not the other way around. The iBox CoWork Kit-B is a compact set of smart devices that talk over LoRaWAN and Milesight D2D links. It lets you turn lights on, lock doors, count people and trigger scenes with a single press. Offices that struggle with high energy bills, manual key cards or unclear occupancy data will find this kit the missing piece for a truly intelligent environment.

Usages

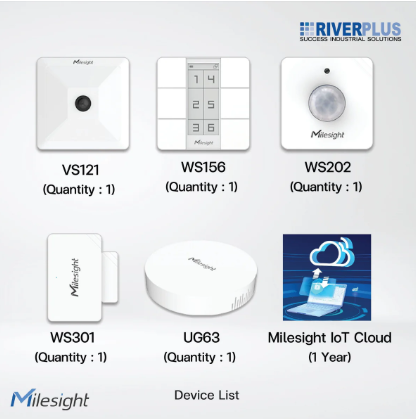

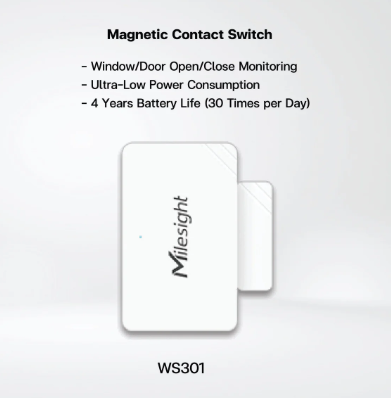

Use the WS101 smart button at reception to welcome guests and start a meeting mode. Install the WS301 magnetic contact on conference room doors to get open/close alerts and tamper warnings. Deploy the VS121 AI occupancy sensor in open areas to track real-time headcount and adjust HVAC automatically. Place the WS156 e-ink scene panel on a wall to let staff switch lighting, blinds or audio with six customizable icons. The UC100 Modbus-to-LoRaWAN controller can bring legacy building systems into the same network, while the UG56 gateway gathers all data and sends it to cloud servers.

Benefits

• Cut energy use by automating lights and climate based on real occupancy.
• Reduce admin work with single-press controls and remote monitoring.
• Improve security with instant door-open, close and tamper alerts.
• Gain clear insight into space utilization for better desk planning.
• Future-proof your office by adding new LoRaWAN devices without rewiring.

Key Features

• WS101 smart button with multi-band LoRaWAN (EU868, US915, etc.).
• Replaceable battery lasting up to five years.
• Supports single, double and long press actions.
• IP30 protection and NFC for quick configuration.

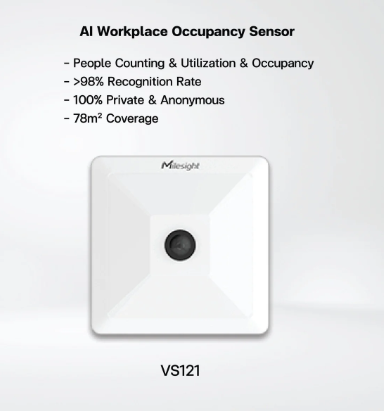

• VS121 AI occupancy sensor with 190 field of view and 98% counting accuracy.
• Privacy mask and dwell-time detection for compliance.
• WS156 e-ink panel with six programmable scene buttons.
• Battery powered for up to three years, plus Type-C power option.
• UC100 Modbus-to-LoRaWAN controller with RS485 interface and up to 16 registers.
• UG56 8-channel LoRaWAN gateway with quad-core 1.3 GHz ARM CPU.
• Connectivity options: Ethernet, Wi-Fi, 4G LTE, PoE or 5 V Type-C.
• Embedded network server compatible with TTN and ChirpStack.

SPECIFICATIONS:

Model Name	Specification Detail
LPS8v2 LoRaWAN Gateway	CPU: Quad-core Cortex-A7 1.2Ghz
	RAM: 512MB
	eMMC: 4GB
	Interface: 10M/100M RJ45 Ports x 1
	Multi-Channel LoRaWAN Wireless
	WiFi 802.11 b/g/n
	Max Output Power: 27dBm
	Sensitivity: -140dBm
	Work Temperature: -20 ~ 70°C
	Power Input: 5V, 2A, DC
LA66 LoRaWAN Shield	CPU: 32-bit 48 MHz
	Flash: 256KB
	RAM: 64KB
	Input Power Range: 1.8v ~ 3.7v
	Power Consumption: < 4uA
	Frequency Range: 150 MHz ~ 960 MHz
	Max Power: +22 dBm
	High sensitivity: -148 dBm
	Operating Temp: -40 ~ +85°C
	I/O Voltage: 3.3v
LA66 USB LoRaWAN Adapter	CPU: 32-bit 48 MHz
	Flash: 256KB
	RAM: 64KB
	Input Power Range: 5v
	Frequency Range: 150 MHz ~ 960 MHz
	Max Power: +22 dBm
	High sensitivity: -148 dBm
	Operating Temp: -40 ~ +85°C
	LoRa Rx current: < 9 mA
Temp & Humidity Sensor	Supply Voltage: 2.5v ~ 3.6v (Battery)
	Temp Range: -40 to + 80°C
	Temp Accuracy: ±0.2 @ 0-90 °C
	Humidity Range: 0 ~ 99.9% RH
	Humidity Accuracy: ± 2%RH
	LoRa Frequency: 862 ~ 1020 Mhz
	RX sensitivity: -139 dBm
	Battery Capacity: 8500mAh
	Sleep Mode: 5uA @ 3.3v
	Transmit Mode: 125mA @ 20dBm
Discrete RGB LED	Forward Voltage (Red): 2.0V - 2.2V
	Forward Voltage (Green/Blue): 3.0V - 3.2V
	Forward Current (   ): 20mA (per channel)
	Wavelength (Red): 620 - 640nm
	Wavelength (Green): 515 - 525nm
	Wavelength (Blue): 465 - 475nm
	Luminous Intensity (Red): 1000 - 2000mcd
	Luminous Intensity (Green): 3000 - 5000mcd
	Luminous Intensity (Blue): 2000 - 3000mcd
