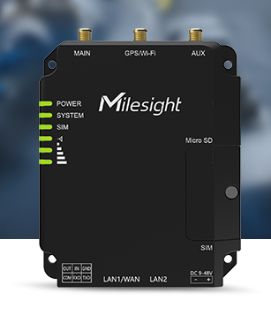

Milesight UR32 industrial cellular router front view compact 4G LTE device
Milesight UR32 industrial cellular router front view compact 4G LTE device

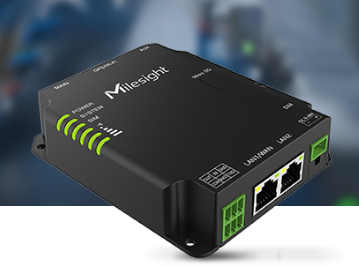

Milesight UR32 industrial router metal housing pocket sized rugged design

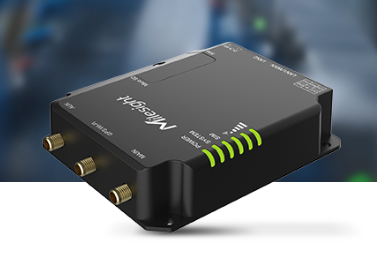

Milesight UR32 4G LTE industrial router rear panel Ethernet and power ports

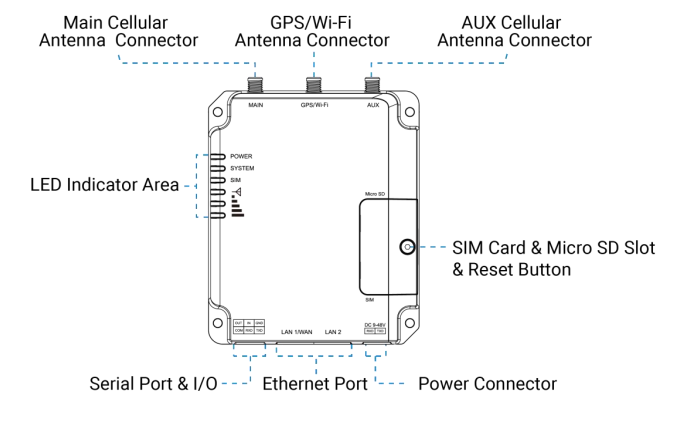

Milesight UR32 industrial router dual SIM LTE ports and antenna connectors

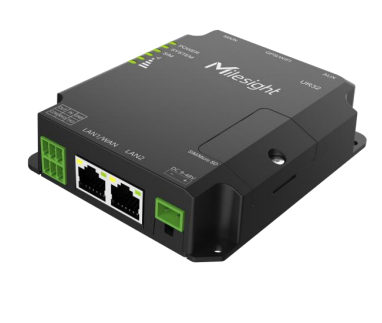

Milesight UR32 compact industrial cellular router DIN rail mounting design

Milesight Industrial Cellular Router UR32 4G LTE Dual SIM Compact Router

UK Free Shipping UK Free Shipping over £249


Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: ROHO-006

MPN #: UR35-L04EU-G-P-W

Imagine your remote equipment losing connection just when you need it most. The Milesight Industrial Cellular Router UR32 4G LTE Dual SIM Compact Router keeps your data flowing even in harsh places. It is a small, rugged router that brings 4G LTE to machines, sensors, and cameras. If you have ever worried about network downtime, this device solves that problem with two SIM slots and reliable cellular links.



Milesight Industrial Cellular Router UR32 4G LTE Dual SIM Compact Router

Many industrial sites cannot rely on wired Ethernet because cables are expensive to run and can be damaged by weather or vibration. When a wired link fails, production stops and monitoring data is lost, costing time and money. The UR32 router answers this need by offering a plug-and-play cellular connection that works where wires cannot. Its dual SIM design lets you choose the strongest carrier or switch automatically if one network drops, so you always stay online. Built for tough environments, the router survives extreme temperatures and dust, giving you a stable link without costly infrastructure. The router also includes optional Wi-Fi and GNSS modules, so you can add wireless local networking or precise location tracking without extra hardware.



Usages of Milesight

You can mount the UR32 on a solar-powered weather station to send temperature and humidity readings to the cloud. It fits inside a factory machine to report status updates over 4G, keeping supervisors informed. City officials use it to connect traffic cameras where fiber is not yet installed. In oil and gas fields, the router powers remote sensors and safety alarms, even when the site is far from power grids. Utility companies place the UR32 on transformer stations to monitor voltage and current remotely, reducing field visits. Fleet managers install it in trucks and buses to provide real-time GPS and video streams, ensuring drivers and assets are always tracked.

<

Specifications
Category Parameter Details
Hardware System CPU ARM Cortex-A7, 528 MHz
  Memory 128 MB DDR3 RAM and 128MB Flash
  Extendable Storage 1 × Micro SD Slot
Cellular Interface Network 4G LTE (CAT 4) / WCDMA / GSM (Regional)
  Antenna Connector 2 × 50 Ω SMA Connectors (Center PIN: SMA Female)
  SIM Slots 2 × SIM Slot (Mini SIM-2FF), 1.8V/3V
  Tx Power LTE: Class 3 (23 dBm ± 2 dB)
Ethernet Interface Numbers 2 × RJ45 10/100 Mbps
  Property 1 × WAN + 1 × LAN or 2 × LAN
  Mode Full or half duplex (Auto-Sensing)
  Ethernet Isolation 1.5 kV RMS
  PoE (Optional) 2 × 802.3 af/at PoE PSE on LAN Ports
Wi-Fi (Optional) Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: RP-SMA Female)
  Standards IEEE 802.11 b/g/n, 2.4GHz
  Tx Power (802.11b) 16 dBm +/-1.5 dBm (11 Mbps)
  Tx Power (802.11g) 14 dBm +/-1.5 dBm (54 Mbps)
  Tx Power (802.11n) 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7)
GNSS (Optional) Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: SMA Female)
  Technology GPS/GLONASS/BDS/Galileo/QZSS
  Positioning Accuracy 2.5m CEP (Open Air)
Serial Port Numbers 1 × RS232 (RS485 Hardware Optional)
  Connector 3.5mm Terminal Block
  Baud Rate 300bps to 230400bps
DI/DO Numbers 1 × DI + 1 × DO, Galvanic Isolation
  Connector 3.5mm Terminal Block
  Digital Input Dry Contact
  Digital Output Wet Contact, maximum 0.3A @ 30VDC
Physical & Power Reset Button 1 × RESET
  LED Indicators 1 × POWER, 1 × SYSTEM, 1 × SIM, 3 × Signal strength
  Power Connector 1 × 2-pin 5.08 mm Terminal Block (Surge & Reverse Polarity Protection)
  Watchdog Built-in Watchdog, Timer
  Power Input 9-48 VDC (48V required for PoE output)
  Power Output (Opt) 2 × 802.3 af/at PoE PSE (Per Port 30W Max, Total 60W Max)
  Power Consumption Typical 1.9 W, Max 2.4 W (In Non-PoE mode)
  Ingress Protection IP30
  Housing & Color Metal, Black
  Weight 271 g
  Dimension 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
  Installation Desktop, Wall or DIN Rail Mounting
Environmental Operating Temp -40°C to +70°C (Performance reduced above 60°C)
  Storage Temp -40°C to +85°C
  Relative Humidity 0% to 95% (non-condensing) at 25°C
Software - Network Protocols IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, MQTT, MQTTS, TR069, etc.
  Routing Static Routing, Priority Based Routing, RIP, OSPF
  Reliability VRRP, WAN Failover, Dual SIM Backup
  QoS Upload/Download Bandwidth Limit
  IP Passthrough Support to assign Cellular IP address to the device
Software - Security Firewalls Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS & DDoS Protection, Filtering (IP & Domain)
  VPN OpenVPN, IPsec, GRE, L2TP, PPTP, DMVPN, WireGuard, ZeroTier
  Authentication Radius, Tacacs+, LDAP, Local Authentication, 802.1x
Software - Others Wi-Fi Modes AP or Client mode (Supports 15 simultaneous users)
  Wi-Fi Security WEP/WPA-PSK/WPA2-PSK/WPA-EAP/WPA2-EAP, TKIP/AES
  Serial Mode Transparent (TCP/UDP/MQTT), Modbus Gateway (RTU to TCP), DLMS
  App Python SDK
Management Configuration Web, CLI (SSH/Telnet), SMS, SNMP v1/v2c/v3, TR069, DeviceHub
  Updates Web, DeviceHub, Milesight Development Platform
Approvals Regulatory CE, FCC, RCM, NBTC, JATE, Telec, Verizon (Carrier)
  Environmental RoHS
  EMC/EMS EN 55032, EN 55035; IEC 61000-4-2/3/4/5/6/8/11
  Radio/Safety EN 301 489, EN 301 511, EN 301 908, EN 62368-1
