Tired of a slow desktop that takes up too much space? The MINISFORUM MS-02 Ultra gives you desktop-class power in a tiny box. It is a barebone mini PC built for gamers, creators, and professionals who need fast processing, AI work, and many ports without a big tower. If you have limited desk space or want a quiet machine that can handle 4K video, heavy multitasking, and AI tasks, this device is made for you.

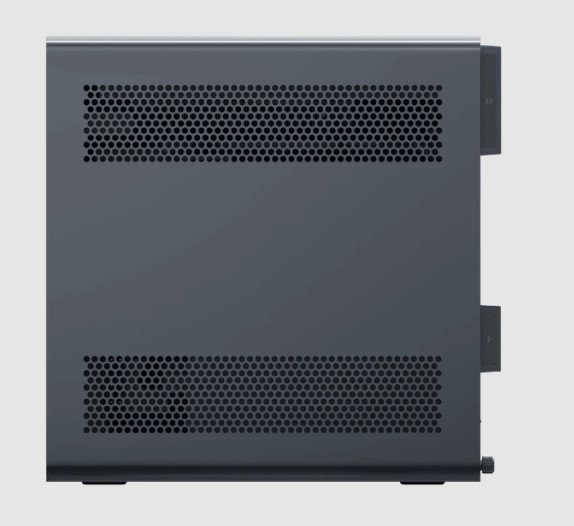

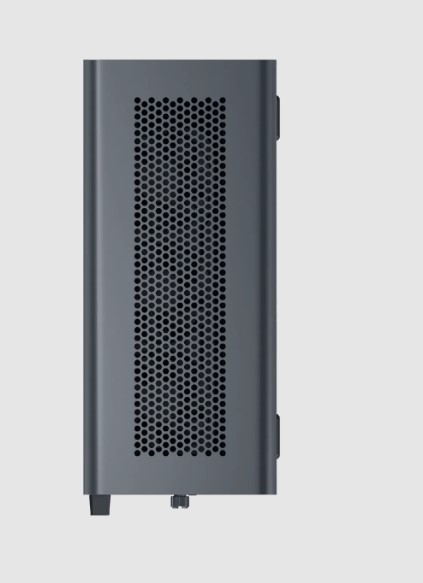

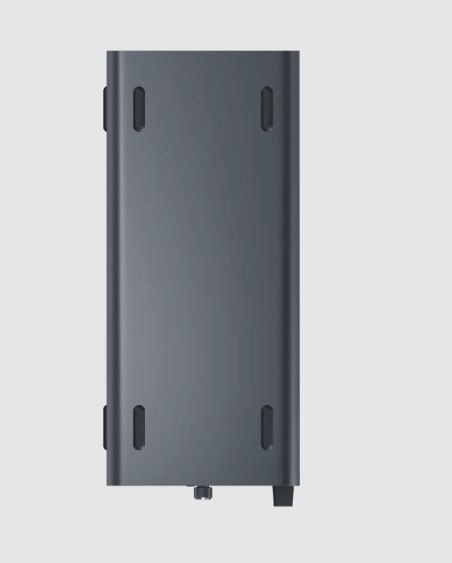

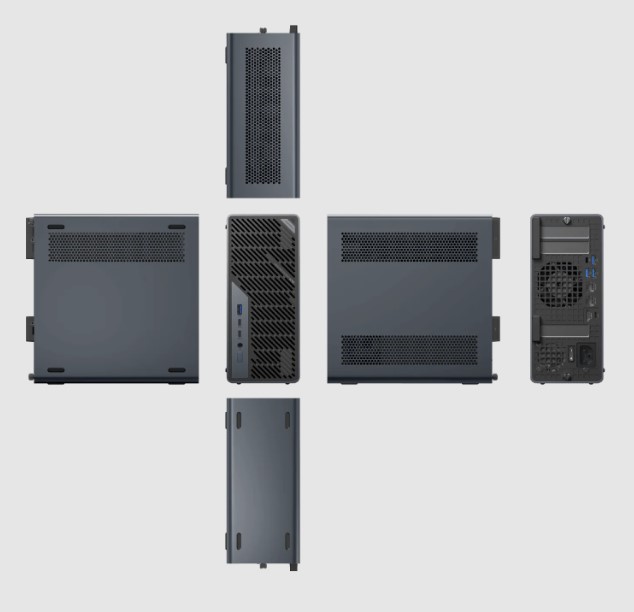

MINISFORUM MS-02 Ultra, Intel Core Ultra 9 285HX, Barebone Mini PC
Many users struggle with slow performance and lack of connectivity on older PCs. The problem becomes costly when work stalls or games lag. The MS-02 Ultra solves this by packing a 24-core Intel Core Ultra 9 processor, Wi-Fi 7, and multiple 25 GbE ports into a 3.45 kg chassis. You get instant speed, future-proof networking, and the ability to add storage or memory as your needs grow.
Key Features
- Intel Core Ultra 9 285HX, 24 cores, up to 5.5 GHz.
- Integrated Intel graphics, 2 GHz GPU clock.
- Intel AI engine delivering up to 13 TOPS.
- 4 DDR5 SO-DIMM slots, up to 256 GB ECC memory.
- Two PCIe 4.0 4 NVMe slots (up to 8 TB each) plus two PCIe 3.0 4 slots inside 25 GbE NIC.
- Six-heatpipe radiator with phase-change material, fan up to 5000 RPM.
- Wi-Fi 7 and Bluetooth 5.4 for wireless speed.
- Two 25 GbE SFP+, one 10 GbE RJ45, one 2.5 GbE RJ45 ports.
- HDMI 2.1 FRL and USB4 with DisplayPort Alt Mode, all support 8K@60 Hz.
Specifications
| CPU |
Intel® Core™ Ultra 9 285HX, 24 Cores (8 P-Cores + 16 E-Cores), 24 Threads, Max Clock: 5.5 GHz |
| TDP |
Without dGPU: 100W PL1 / 140W PL2, With dGPU: 90W PL1 / 110W PL2 |
| GPU |
Intel® Graphics (Integrated), Max GPU Clock: 2 GHz |
| AI Engine Performance |
Intel® AI, NPU Computing Power: Up to 13 TOPS |
| Memory |
4 × DDR5 SO-DIMM Slots, ECC Supported, XMP Overclocking Not Supported,
Maximum Frequency: 4800 MHz, Maximum Capacity: 256GB
|
| Storage |
2 × M.2 2280 NVMe SSD Slots (PCIe 4.0 ×4, Up to 8TB Each),
2 × M.2 2280 NVMe SSD Slots (Inside 25GbE NIC,
Up to 8TB per Slot with PCIe 3.0 ×4 or Up to 4TB per Slot with PCIe 4.0 ×4)
|
| Cooling System |
Six-Heatpipe Radiator with Phase Change Material (PCM),
Maximum CPU Fan Speed: 5000 RPM
|
| Wireless Connectivity |
Wi-Fi 7, Bluetooth® 5.4 |
| Ethernet |
2 × 25GbE SFP+, 1 × 10GbE LAN (RJ45), 1 × 2.5GbE LAN (RJ45) |
| Video Output |
1 × HDMI™ 2.1 FRL (Up to 8K@60Hz / 4K@120Hz),
1 × USB4 with DisplayPort Alt Mode (Up to 8K@60Hz / 4K@120Hz),
2 × USB4 V2 with DisplayPort Alt Mode (Up to 8K@60Hz / 4K@120Hz)
|
| Audio Output |
1 × HDMI™, 1 × USB4, 2 × USB4 V2, 1 × 3.5 mm Audio Jack |
| Audio Input |
1 × 3.5 mm Combo Jack (TRRS) |

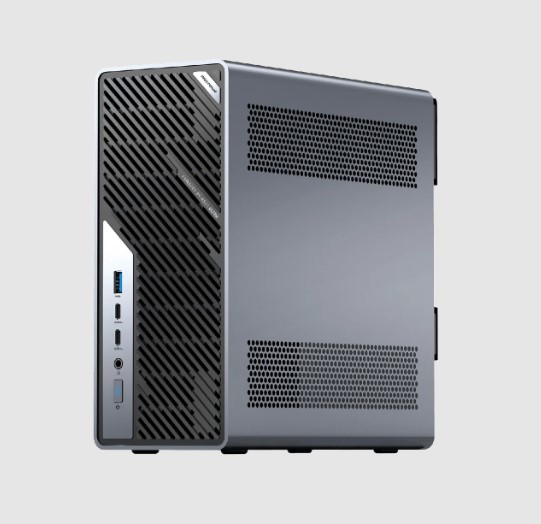

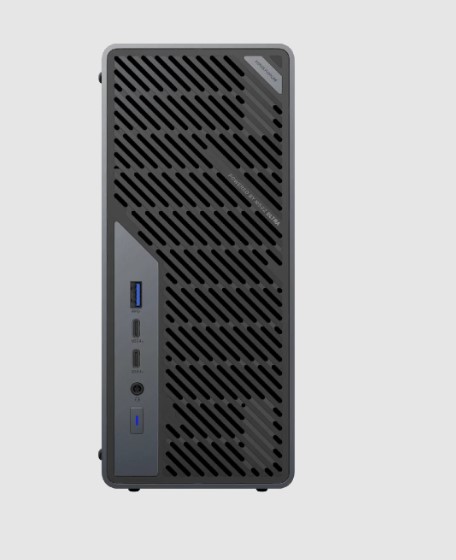

| Front I/O Ports |
2 × USB4 V2 Type-C (80 Gbps, DP 2.0 Alt Mode, 15W PD), 1 × USB 3.2 Gen 2 Type-A (10 Gbps),
1 × 3.5 mm Audio Jack, 1 × Power Button
|
| Rear I/O Ports |
2 × 25GbE SFP+ (Intel E810), 1 × 10GbE RJ45 (Realtek RTL8127), 1 × 2.5GbE RJ45 (Intel I226-LM, vPro Enabled),
1 × HDMI™ 2.1 FRL, 1 × USB4 Type-C (40 Gbps, DP 2.0 Alt Mode, 15W PD), 3 × USB 3.2 Gen 2 Type-A (10 Gbps)
|
| Internal Expansion |
1 × PCIe 5.0 ×16 Slot (Bifurcation Support), 1 × PCIe 4.0 ×16 Slot (PCIe 4.0 ×4 + ×4 + ×4) with Pre-installed
25GbE NIC, 1 × PCIe 4.0 ×4 Slot
|
| Buttons / Controls |
Clear CMOS Button ×1 |
| Operating System |
Windows 11 Pro |
| Power |
AC Input: 100–240V, 6A, 50–60Hz, 1U 350W Max |
| VESA Mount |
N/A |
| Weight |
3.45 kg |
