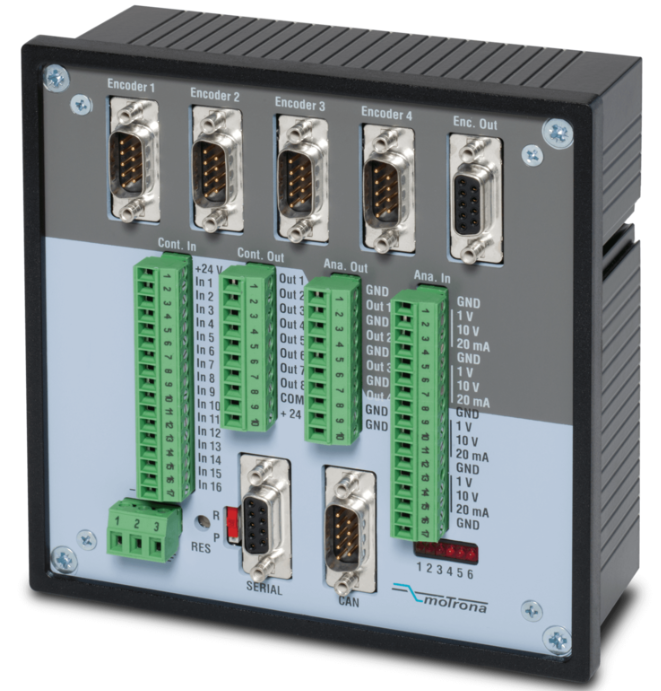

MOTRONA MC700 Motion Controller 4 Axis Drive Control RS232 CANopen

Imagine a production line that stops because one motor refuses to follow the command. You lose time, you lose money, and the pressure builds. The MOTRONA MC700 Motion Controller 4 Axis Drive Control RS232 CANopen is built to stop that frustration. It is a compact controller that drives up to four axes with precise timing and reliable communication. If you need a controller that can handle complex motion without glitches, this unit gives you the stability you have been missing.

MOTRONA MC700 Motion Controller 4 Axis Drive Control RS232 CANopen

Many small and medium factories struggle with controllers that cannot speak both RS232 and CANopen. The result is a tangled wiring system and frequent communication errors that halt production. This problem matters because every minute of downtime adds cost and reduces confidence in the equipment. The MC700 solves it by offering dual serial interfaces, built-in power protection, and a robust microcontroller that runs at 20 MHz. You get clear, fast commands to each axis and instant feedback from encoders. The controller also supports analog and digital I/O, so you can integrate sensors, safety switches, and other devices without extra hardware. In short, it turns a complex motion task into a simple, reliable process.

Benefits

• Control up to four axes from a single unit, reducing cabinet space and wiring.
• Dual RS232 and CANopen ports let you connect to existing PLCs or PC systems.
• Built-in encoder power and protection keep signals clean and reliable.
• 12-bit resolution on analog inputs gives precise sensor feedback for fine tuning.
• High MTBF and IP20 rating ensure long service life in industrial environments.

Usages

The MC700 fits well in robotic arms where each joint needs accurate speed control. It is also ideal for CNC milling machines that require synchronized motion on X, Y, Z and spindle axes. Packaging lines can use the controller to drive conveyor belts, pick-and-place heads, and labeling stations. In material handling, the unit can manage palletizers, stackers and automated guided vehicles. Anywhere you need reliable multi-axis drive with simple wiring, this controller delivers the performance you expect.

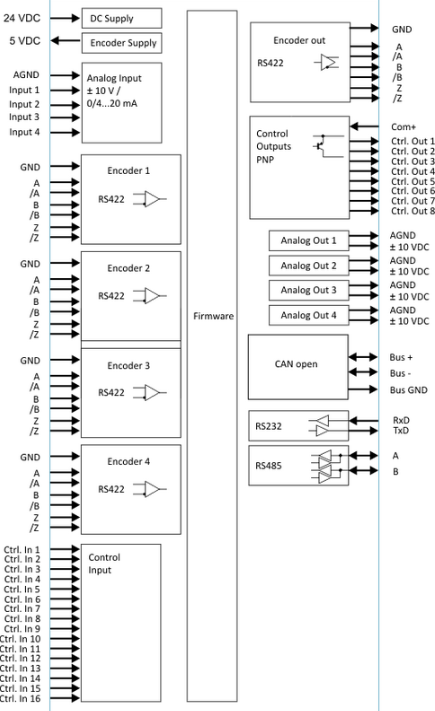

Key Features

• Input voltage 18 35 VDC with reverse polarity protection.
• Four incremental encoder inputs supporting RS422 and TTL levels.
• Sixteen digital control inputs with PNP/HTL signaling.
• Eight digital control outputs, 5 30 VDC, active-high PNP.
• Four analog inputs, 10 V range, 12-bit resolution.
• Four analog outputs, 10 V range, 12-bit resolution.
• RS232/RS485 serial interface selectable from 2400 to 38400 baud.
• CANopen DIN ISO 11898 (CiA DS301) for networked motion control.
• Aluminum housing, top-hat rail mounting, dimensions 144 144 73 mm.
• Operating temperature 0 C +45 C, storage -25 C +70 C.
• MTBF of 19.4 years at 60 C, IP20 protection.
• Complies with EMC 2014/30/EU, RoHS II/III, EN 61000, EN 61326-1.
