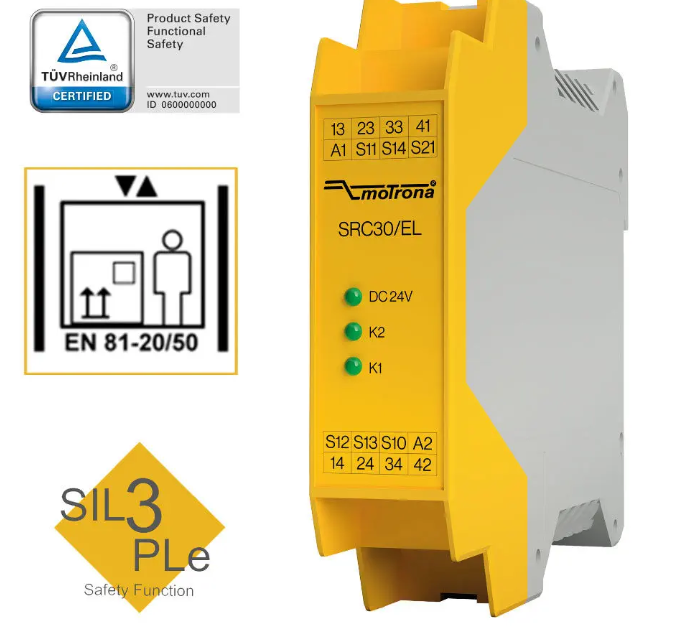

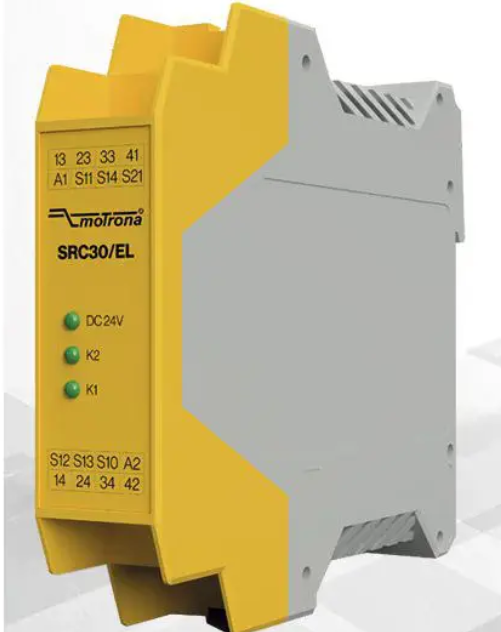

MOTRONA SRC30 Safety Relay Compact 24VDC 3NO 1NC DIN Rail

Stop guessing if your machine will stay safe during an emergency. The MOTRONA SRC30 Safety Relay Compact 24VDC 3NO 1NC DIN Rail is a tiny but powerful safety device that watches your equipment and cuts power the moment a fault is detected. If you have ever faced costly downtime because a safety circuit failed, you know why a reliable relay is essential. This relay gives you the confidence that every stop is controlled and every worker stays protected.

MOTRONA SRC30 Safety Relay Compact 24VDC 3NO 1NC DIN Rail

Many factories struggle with safety relays that are too big, slow, or cannot handle the voltage range of modern machines. When a relay lags, the machine may keep running long enough to cause injury or damage. The SRC30 solves this by delivering fast switch-on and switch-off delays under 50 ms, handling up to 250 V AC and 24 V DC, and fitting neatly on a DIN rail. It gives you a clear, instant safety response without taking up space.

Usages of MOTRONA

The SRC30 is ideal for conveyor belts that need a quick stop, robotic cells where a safety gate must shut down power, and packaging lines that require an auxiliary contact for alarms. It also works well in lift control panels, CNC machines, and any equipment that uses a 24 VDC safety circuit. Wherever you need three normally open safety contacts and one normally closed auxiliary contact, this relay fits the job.

Benefits

• Fast reaction time keeps people safe and stops damage.
• Compact DIN-rail design saves panel space.
• Low power consumption (2.6 W) reduces energy costs.
• Robust contact material (AgSnO2) ensures long life.
• IP20 rating protects the relay from dust and accidental contact.

Key Features

• Operating voltage 24 VDC 10 %.
• Three NO safety contacts and one NC auxiliary contact.
• Contact rating 250 V AC, 2000 VA, 8 A for resistive loads.
• Switch-on delay less than 50 ms, switch-off delay less than 40 ms.
• Inrush current 5 A for about 250 s.
• External fuse options 10 A gG (NO) and 6 A gG (NC).
• Maximum switching voltage 250 V AC.
• Thermal current rating up to 5 A per contact.
• Dielectric strength 4 kV (EN 60664-1).
• Mounting on DIN rail EN 60715 TH35.
• Weight around 150 g for easy handling.
• Operating temperature -15 C to +55 C, storage up to +85 C.
