Looking for a reliable way to keep your factory network running without surprise downtime? The Moxa EDS-408A-MM-ST, 2 Layer, 8 Ports Managed Industrial Switch is built for harsh plants and remote sites. It connects Ethernet and fiber devices while protecting you from network failures that can stop production. If you need a sturdy switch that survives heat, vibration and power spikes, this is the answer.

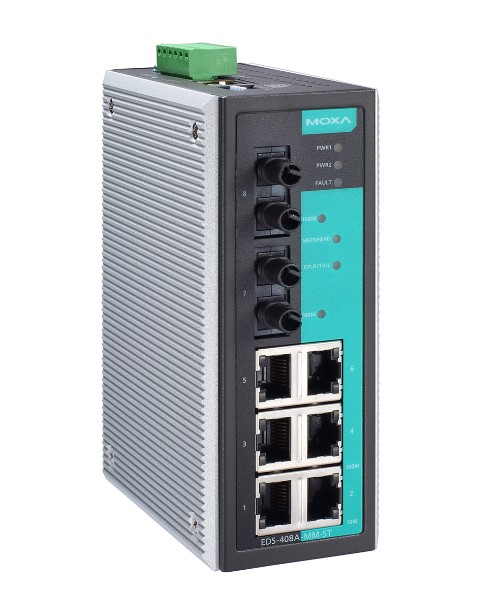

Moxa EDS-408A-MM-ST, 2 Layer, 8 Ports Managed Industrial Switch
Industrial networks often suffer from noisy cables, accidental loops and sudden power loss. Those problems cause data loss, slow response and costly line stops. The Moxa switch tackles these issues with built-in protection, managed traffic control and dual power inputs. By giving you clear visibility and automatic recovery, it lets you keep machines talking and your plant moving.
Key Features
- 6 x 10/100Base-T RJ45 ports and 2 x 100Base-FX multi-mode fiber ports.
- Layer 2 switching with port mirror, rate limit and flow control.
- ST fiber connector for reliable multi-mode connections.
- Support for EtherNet/IP and Modbus TCP industrial protocols.
- SNMP v1/v2c/v3, HTTP/HTTPS, Telnet and LLDP for easy management.
- STP, RSTP, Turbo Ring and Turbo Chain for network redundancy.
- IEEE 802.1Q VLAN tagging and 802.1p QoS class of service.
- 1 Mbit packet buffer and 8K MAC address table for smooth traffic.
- RS-232 console port for direct command line access.
- Metal housing, DIN-rail or wall mount, IP30 rating for tough environments.
Specifications
| Product Type |
Layer 2 Managed Industrial Ethernet Switch |
| Ethernet Ports |
6 x 10/100BaseT(X) RJ45 ports |
| Fibre Ports |
2 x 100BaseFX Multi-Mode Fibre ports |
| Fibre Connector |
ST Connector |
| Fibre Type |
Multi-mode |
| Ethernet Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Switching Layer |
Layer 2 |
| Switching Features |
Port Mirror, Rate Limit, Loop Protection, Broadcast Storm Protection, Port-based VLAN, Flow Control |
| Industrial Protocols |
EtherNet/IP, Modbus TCP |
| Network Management |
SNMPv1/v2c/v3, HTTP, HTTPS, Telnet, LLDP, RMON, Syslog |
| Redundancy |
STP, RSTP, Turbo Ring, Turbo Chain |
| VLAN |
IEEE 802.1Q VLAN Tagging |
| QoS |
IEEE 802.1p Class of Service |
| MAC Address Table |
8K entries |
| Packet Buffer |
1 Mbit |
| IGMP Groups |
256 |
| Console Port |
RS-232 RJ45 Console Port |
| Configuration |
Web Console, CLI, Telnet, Console, DIP Switch, MXconfig Utility |
| Alarm Output |
1 x Relay Output |
| Relay Rating |
1A @ 24VDC |
| Power Input |
Dual Redundant Power Input |
| Input Voltage |
9.6 – 60 VDC |
| Power Protection |
Reverse Polarity Protection, Overload Current Protection |
| Housing |
Metal Industrial Housing |
| Mounting |
DIN Rail, Wall Mount |
| Dimensions |
53.6 x 135 x 105 mm |
| Weight |
890 g |
| IP Rating |
IP30 |
| Operating Temperature |
-10 to 60°C |
| Storage Temperature |
-40 to 85°C |
| Humidity |
5 to 95% RH (non-condensing) |
