Tired of slow, unreliable connections in harsh industrial sites? The Teltonika TSW212000000 gives you a fast, sturdy network that keeps machines talking even in extreme temperature or vibration. If your production line stops because of a network glitch, you lose time and money. This switch solves that problem with rugged design and 20 Gbps non-blocking bandwidth, so you can keep every device online.

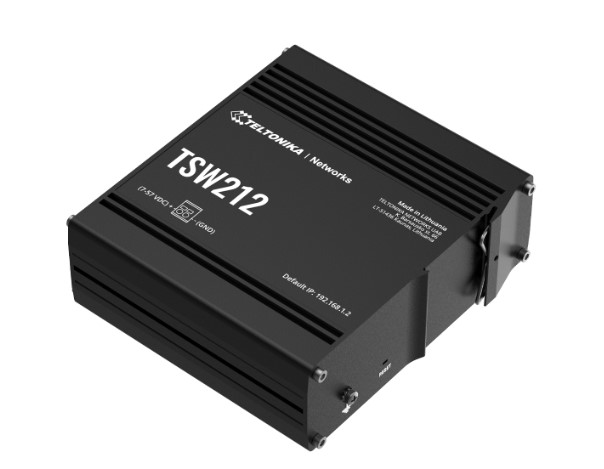

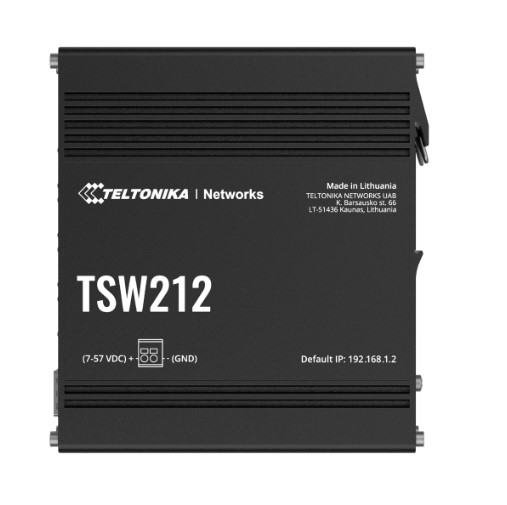

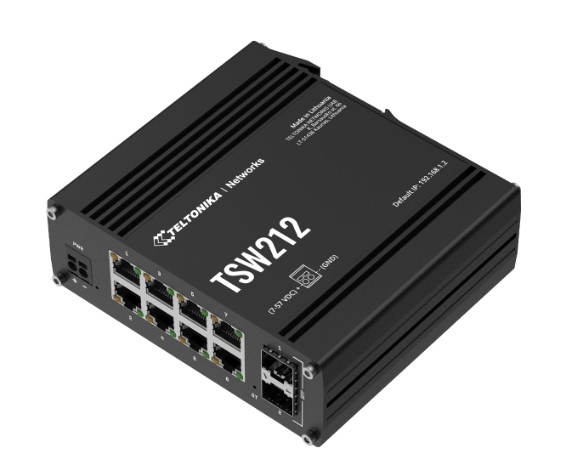

Teltonika TSW212000000, 20Gbps, Industrial L2 Managed Ethernet Switch
Many factories face network congestion when many sensors, PLCs and cameras share a single link. The congestion creates delays that affect safety and product quality. This switch removes the bottleneck by offering eight gigabit Ethernet ports, two SFP fibre ports and a full 20 Gbps backplane. With Layer-2 management you can shape traffic, set VLANs and protect against loops, giving you a clear, reliable solution for demanding environments.
Key Features
- 8 x RJ45 10/100/1000 Mbps ports with auto MDI/MDIX.
- 2 x SFP slots for fibre uplinks.
- 20 Gbps non-blocking backplane.
- 802.1p QoS, 802.1Q VLAN, 802.1x port security.
- LLDP and SNMP V2/V3 for network monitoring.
- 802.3ad LACP port aggregation.
- Loop protection, STP/RSTP, and MRP manager/client.
- 512 KB packet buffer and 8K MAC table.
- Industrial DC input 7-57 V, max 6 W power draw.
- Anodized aluminium case, DIN-rail and wall mount options.
- IP30 protection, CE, FCC, UL and other global certifications.
Specifications
| Ethernet |
Multi-layer managed, 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| Fibre |
2 x SFP ports |
| IEEE 802.3 Standards |
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Services |
EtherNet/IP, SNMP V2/V3, LLDP |
| Network Management |
802.1p Class of Service, 802.1x Port-based Network Access Control, 802.1Q VLAN |
| MRP |
MRP Client role, MRP Manager role |
| Port Aggregation |
802.3ad (LACP) |
| Layer 2 Features |
Loop protection, Forwarding table, VLAN, STP/RSTP |
| RAM |
128 MB DDR3 |
| Flash Storage |
16 MB Serial Flash |
| Firmware Update |
Web UI, FOTA, RMS |
| Configuration |
FW update, Configuration profiles, Backup & restore, Keep settings after update |
| Bandwidth (Non-blocking) |
20 Gbps |
| Forwarding Rate |
14.88 Mpps |
| Packet Buffer |
512 KB |
| MAC Address Table |
8K entries |
| Jumbo Frame Support |
10000 bytes |
| Power Connector |
2-pin industrial DC power socket |
| Input Voltage |
7 – 57 VDC |
| Power Consumption |
Idle: <2.5 W, Max: 6 W |
| Surge Protection |
AC mains: 1kV line-line, 2kV line-ground, Ethernet: 1kV line-ground |

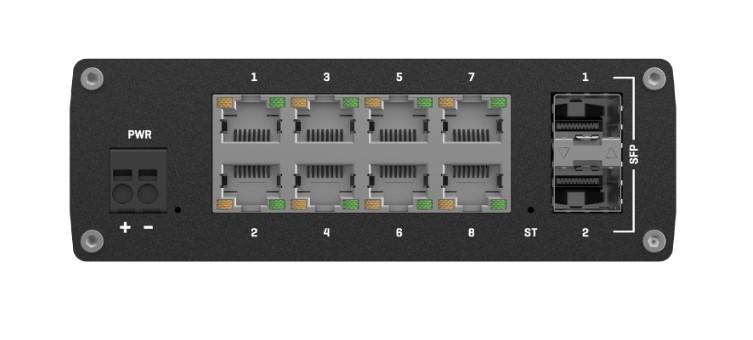

| Ethernet Interface |
8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre Interface |
2 x SFP ports |
| LEDs |
1 x Power LED, 1 x Aux LED, 16 x ETH LEDs, 2 x SFP LEDs |
| Reset |

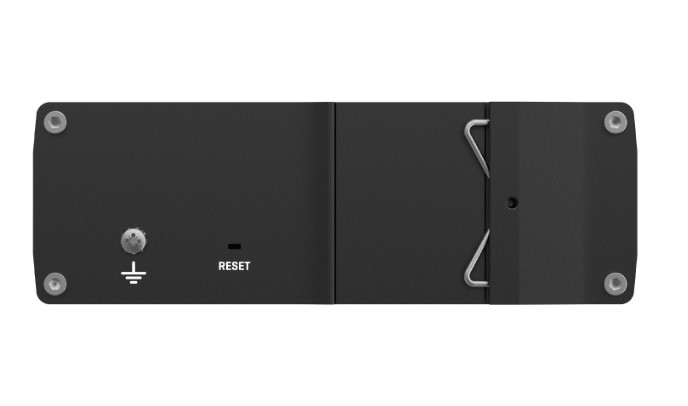

Software reset button |
| Other |
1 x Grounding screw |
| Housing |
Anodized aluminium housing and panels |
| Dimensions |
132 x 44.2 x 122.2 mm |
| Weight |
615 g |
| Mounting |
Integrated DIN rail bracket, Wall mount, Flat surface mounting |
| Operating Temperature |
-40 °C to 75 °C |
| Operating Humidity |
5% to 95% RH non-condensing |
| Ingress Protection |
IP30 |
| Certifications |
CE, UKCA, RCM, ANRT, FCC, IC, CB, WEEE, RoHS, REACH, SDPPI,
JATE, Kenya, ICASA, Giteki, NBCT, PROFINET, UL Safety, MTCTE
|
