Imagine a factory floor where a single network glitch can stop an entire production line. The Moxa EDS-510E, 3 Gigabit Ethernet ports, Managed Switch is built to stop that from happening. It is a compact, industrial-grade switch that lets you connect and control critical devices over a reliable Ethernet link. If you have been frustrated by unreliable connections, limited ports, or lack of management tools, this switch gives you the control and stability you need.

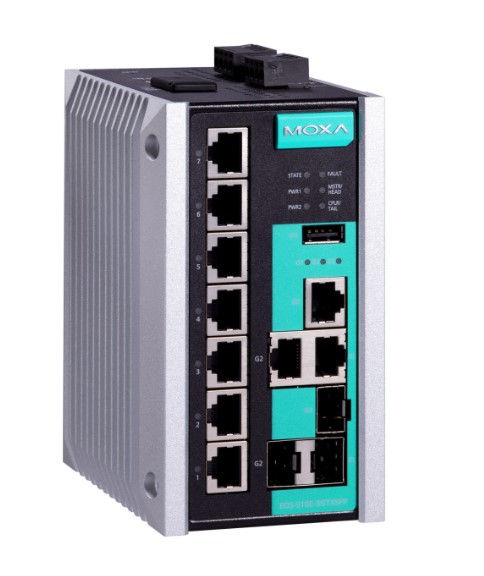

Moxa EDS-510E, 3 Gigabit Ethernet ports, Managed Switch
Many small to medium industrial networks suffer from congestion, accidental misconfiguration, and exposure to harsh environments. Those problems cause downtime, lost data, and higher maintenance costs. The EDS-510E solves them by offering managed traffic, VLAN support, and a rugged metal case that meets IP30 standards. With three combo ports that accept copper or fiber, you can expand your network without replacing hardware. The built-in web interface and console port let you monitor and adjust settings quickly, keeping your operation running smoothly.
Key Features
- Three 10/100/1000Base-T or SFP+ combo ports.
- Auto-negotiation speed and duplex detection.
- Four priority queues for traffic shaping.
- 64 VLANs with full ID range support.
- 8 K MAC table for large device counts.
- 1 Mbit packet buffer to handle bursts.
- USB Type-A storage port for firmware updates.
- LED indicators for power, link, and fault status.
- Redundant 12/24/48 VDC power inputs with overload protection.
- DIP switches for ring, master, and coupler settings.
Specifications
| Input/Output Interface |
|
| Alarm Contact Channels |
1 |
| Relay output with current carrying capacity of |
1 A @ 24 VDC |
| Buttons |
Reset button |
| Digital Input Channels |
1 |
| Digital Inputs |
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
|
| Ethernet Interface |
|
| 10/100BaseT(X) Ports (RJ45 connector) |
7Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
|
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) |
3 |
| 10/100/1000BaseT(X) Ports (RJ45 connector) |
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
|
| Switch Properties |
|
| IGMP Groups |
2048 |
| MAC Table Size |
8 K |
| Max. No. of VLANs |
64 |
| Packet Buffer Size |
1 Mbits |
| Priority Queues |
4 |
| VLAN ID Range |
VID 1 to 4094 |
| USB Interface |
|
| Storage Port |
USB Type A |
| LED Interface |
|
| LED Indicators |
PWR1, PWR2, STATE, FAULT, 10/100M (TP port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL |
| Serial Interface |
|
| Console Port |
USB-serial console (Type B connector) |
| DIP Switch Configuration |
|
| DIP Switches |
Turbo Ring, Master, Coupler, Reserve |
| Power Parameters |
|
| Connection |
2 removable 4-contact terminal block(s) |
| Input Current |
0.68 A @ 24 VDC |
| Input Voltage |
12/24/48/-48 VDCRedundant dual inputs |
| Operating Voltage |
9.6 to 60 VDC |
| Overload Current Protection |
Supported |
| Reverse Polarity Protection |
Supported |
| Physical Characteristics |
|
| Housing |
Metal |
| IP Rating |
IP30 |
| Dimensions |
79.2 x 135 x 116 mm (3.12 x 5.31 x 4.57 in) |
| Weight |
1263 g (2.78 lb) |
| Installation |
DIN-rail mountingWall mounting (with optional kit) |
| Environmental Limits |
|
| Operating Temperature |
EDS-510E-3GTXSFP: -10 to 60°C (14 to 140°F)
|
| Storage Temperature (package included) |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
