Imagine a factory floor where cameras, sensors and controllers need power and data, but the wiring is a tangled mess. The Moxa EDS-G512E gives you a tidy, reliable way to connect up to twelve devices while feeding them power over Ethernet. If you are tired of separate power supplies and slow network links, this switch solves the problem and keeps your production line running smoothly.

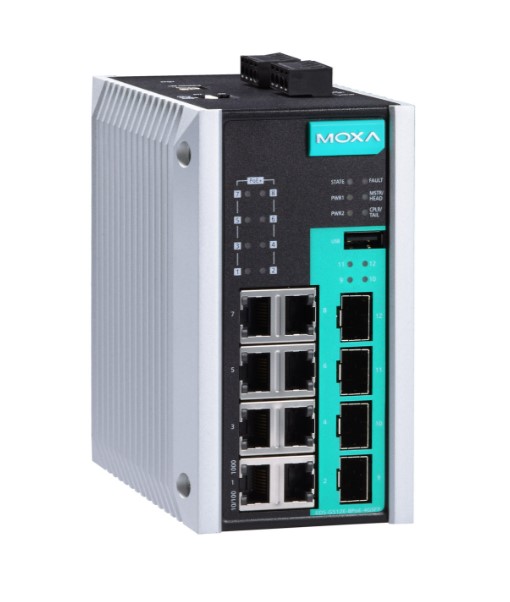

Moxa EDS-G512E, 12-Port Switch, 8 PoE+ & 4 SFP Slots Gigabit Managed Switch
Many industrial networks suffer from limited bandwidth and unreliable power delivery. When a device loses power, the whole line can stop, causing costly downtime. The EDS-G512E fixes this by delivering up to 240 W of PoE+ power and 20 Gbps of switching capacity on a single, rugged chassis. It also adds four fiber SFP slots so you can extend the network over long distances without losing speed. In short, you get a single piece of hardware that powers, protects and manages all your critical devices.
Key Features
- 8 PoE+ RJ45 ports, 36 W per port, 240 W total budget.
- 4 SFP slots for 100 Mbps or 1 Gbps fiber links.
- Layer-2 management with VLAN, QoS and priority queues.
- Supports STP, RSTP, MSTP, Turbo Ring and Turbo Chain for redundancy.
- SNMP v1/v2c/v3, LLDP, DHCP server/client, syslog and web HTTPS interface.
- Security includes SSH, RADIUS, TACACS+, ACL and MAC authentication.
- Four priority queues and IEEE 802.1p/DSCP for traffic shaping.
- Digital input, relay output and alarm contact for device monitoring.
- Dual redundant 44-57 VDC power inputs with overload and reverse polarity protection.
- DIN-rail mounting, optional wall kit, IP30 metal enclosure.
Specifications
| Product Type |
Layer 2 Managed Industrial Gigabit PoE Ethernet Switch |
| Ethernet Ports |
8 x 10/100/1000BaseT(X) RJ45 PoE/PoE+ Ports |
| Fibre Ports |
4 x 100/1000Base SFP Slots |
| Total Ports |
12 Ports |
| PoE Standard |
IEEE 802.3af / 802.3at PoE / PoE+ |
| PoE Ports |
Port 1–8 |
| PoE Power per Port |
Max. 36 W per port |
| Total PoE Budget |
Max. 240 W |
| Ethernet Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z |
| Layer |
Layer 2 Managed |
| Switching Bandwidth |
20 Gbps |
| Packet Buffer |
4 Mbits |
| MAC Address Table |
8K entries |
| Jumbo Frame Support |
9.6 KB |
| VLAN |
IEEE 802.1Q VLAN, Port-based VLAN |
| Maximum VLANs |
256 |
| Priority Queues |
4 |
| IGMP Groups |
2048 |
| Industrial Protocols |
EtherNet/IP, Modbus TCP, PROFINET IO Device |
| Redundancy Protocols |
STP, RSTP, MSTP, Turbo Ring, Turbo Chain, MRP |
| Link Aggregation |
Supported |
| Network Management |
SNMP v1/v2c/v3, LLDP, DHCP Server/Client, Syslog, RMON, Telnet, TFTP, HTTP/HTTPS |
| Security |
HTTPS/SSL, SSH, RADIUS, TACACS+, SNMPv3, ACL, MAC Authentication, Port Lock |
| QoS |
IEEE 802.1p, DSCP, Port Priority |
| Flow Control |
IEEE 802.3x, Back Pressure |
| Management Interface |
Web Console, CLI, Telnet, Serial Console |
| Console Port |
USB Serial Console (Type B) |
| USB Port |
USB Type-A Storage Port |
| Digital Input |
1 x Digital Input |
| Relay Output |
1 x Relay Output, 1A @ 24VDC |
| Alarm Contact |
1 Channel |
| Power Input |
Dual Redundant Power Input |
| Power Connector |
2 x 4-contact Terminal Blocks |
| Input Voltage |
44–57 VDC |
| Recommended PoE Voltage |
>50 VDC |
| Reverse Polarity Protection |
Yes |
| Overload Current Protection |
Yes |
| Max Power Consumption |
14.36 W (without PoE load) |
| Housing |
Metal Industrial Housing |
| Installation |
DIN Rail Mounting, Wall Mount (optional kit) |
| IP Rating |
IP30 |
| Dimensions |
79.2 x 135 x 137 mm |
| Weight |
1.54 kg |
| Operating Temperature |
-10 to 60°C |
| Storage Temperature |
-40 to 85°C |
| Humidity |
5–95% RH (non-condensing) |
| Standards |
UL 508, EN 62368-1, FCC Class A |
| Industrial Compliance |
IEC 61850-3, IEEE 1613, EN 50121-4, NEMA TS2 |
| Vibration |
IEC 60068-2-6 |
| Shock |
IEC 60068-2-27 |
| Warranty |
5 Years |
