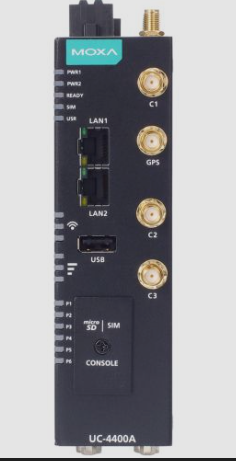

Moxa UC-4454A-T-5G Industrial PC with 5G, 4 Serial, Dual Ethernet

Industrial sites often need a computer that can survive harsh conditions, keep data safe, and stay connected even when wired networks fail. When a controller loses network access, production can stop and costly downtime follows. The Moxa UC-4454A-T-5G Industrial PC gives you a rugged, secure, and always-online solution. It combines a fast processor, built-in 5G, and multiple serial ports so you can keep machines talking and data flowing without a single point of failure.

Moxa UC-4454A-T-5G Industrial PC with 5G, 4 Serial, Dual Ethernet with Moxa

Imagine a computer that never quits, even in a factory floor or a remote field station. The Moxa UC-4454A-T-5G is a compact industrial PC built for tough environments. It runs a quad-core Arm Cortex-A53 processor, 4 GB RAM and 16 GB eMMC storage, giving you enough power for edge analytics and control tasks. With built-in 5G, dual Ethernet, and four selectable serial ports, you can replace fragile cabling and keep critical equipment online. This solves the common pain of unreliable connectivity and limited I/O in one solid package.

Usages

The UC-4454A-T-5G fits well in automation lines where PLCs need a reliable edge computer. It works in transportation hubs to collect sensor data and send it over 5G to a cloud server. In energy plants it can monitor meters, control valves, and log events while standing up to high voltage spikes. Remote oil-field sites use the built-in GPS and dual SIM slots for precise location tracking and backup communication. Any place that demands rugged hardware, many serial connections, and constant network access can benefit.

Benefits

• Stay online with 5G even when wired networks are down, reducing production loss.
• Four software-selectable serial ports let you connect legacy devices without extra adapters.
• Built-in TPM and Secure Boot protect your data from tampering and cyber threats.
• Wide temperature range and IP30 housing let you install the PC in extreme climates.
• Dual power inputs (9-48 V) provide redundancy, so power glitches wont stop operation.

Key Features

• Arm Cortex-A53 quad-core CPU at 1.6 GHz for fast processing.
• 4 GB LPDDR4 memory and 16 GB eMMC storage for reliable operation.
• Built-in 5G NR (NSA/SA) supporting multiple global bands.
• Two 10/100/1000 Mbps Ethernet ports with 1.5 kV magnetic isolation.
• Four RS-232/422/485 ports, software selectable, with 2 kV isolation on two ports.
• Two CAN 2.0 A/B ports with 2 kV isolation for vehicle and industrial networks.
• Four digital I/O channels (dry/wet, 3 kV isolation) and four sink-type digital outputs.
• M.2 E-key slot for Wi-Fi 6E expansion, adding flexible wireless options.
• Dual Nano-SIM slots for cellular redundancy and global coverage.
• Wide-band GNSS receiver supporting GPS, GLONASS, BeiDou, and Galileo.
• TPM v2.0, Secure Boot, LUKS disk encryption, and intrusion detection for strong security.
• DIN-rail or wall mounting, metal SECC case, dimensions 141.5 120 41 mm, weight 750 g.

Specifications
