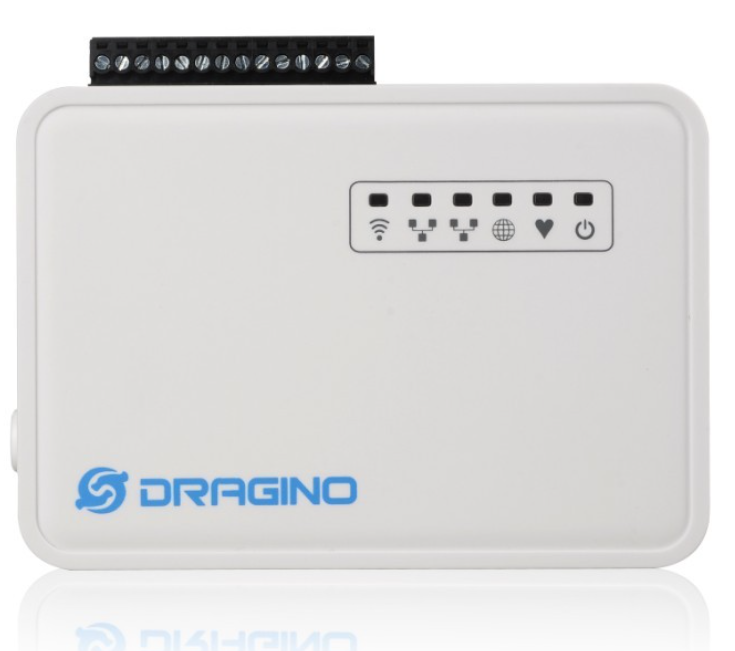

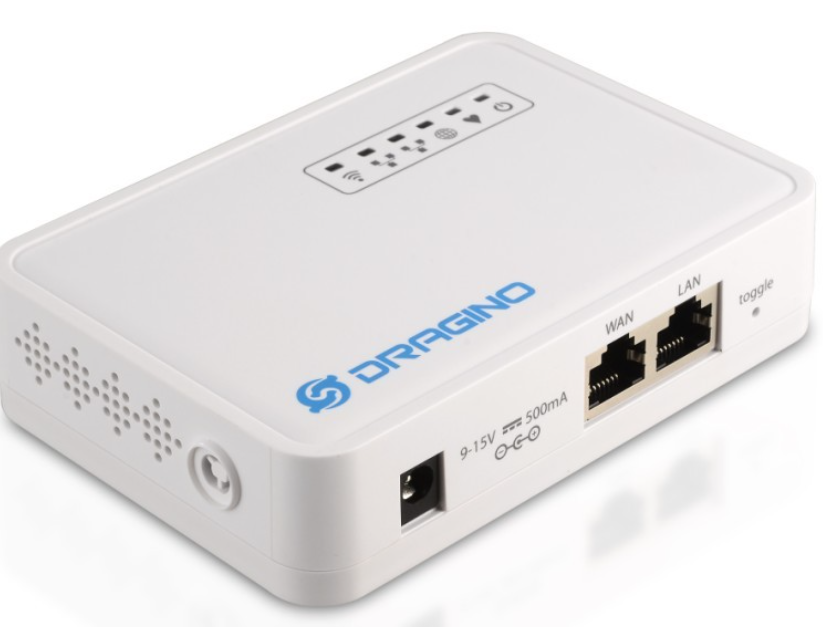

Dragino MS14N Linux IoT Interface board with WiFi Ethernet USB for MCU Projects

Tired of juggling separate Wi-Fi, Ethernet and USB modules for your micro-controller project? The MS14N gives you all three connections on one board, so you can focus on building instead of wiring. It runs Linux, talks to any MCU, and lets you add network or cellular links in minutes. If you have ever lost time fixing mismatched pins or unstable drivers, this board solves that problem instantly.

Dragino MS14N Linux IoT Interface board with WiFi Ethernet USB for MCU Projects

Many developers struggle with fragmented hardware that forces them to buy several adapters, write custom drivers, and manage power separately. That adds cost, size and risk of failure. The MS14N interface I/O board removes those hurdles by combining Wi-Fi, dual Ethernet ports, a USB host, and optional 4G/3G modules into a single, Linux-ready board. You get reliable networking, simple power from 9-12 V, and a clean layout that fits into tight enclosures.

Usages of MS14N

Use the MS14N to create a smart home hub that controls lights and sensors over Wi-Fi. Build an industrial gateway that streams data through Ethernet or 4G LTE to a cloud server. Design a portable weather station that sends measurements via cellular when Wi-Fi is unavailable. Teach students how Linux runs on embedded hardware with a ready-to-use platform. Prototype any IoT device without hunting for extra adapters.

Benefits

• All-in-one networking saves space and reduces component count.
• Linux support lets you run familiar tools and libraries.
• Dual Ethernet ports provide redundancy and high-speed wired links.
• Optional 4G/3G modules give reliable connectivity anywhere.
• Simple 9-12 V power input works with common battery packs.

Key Features

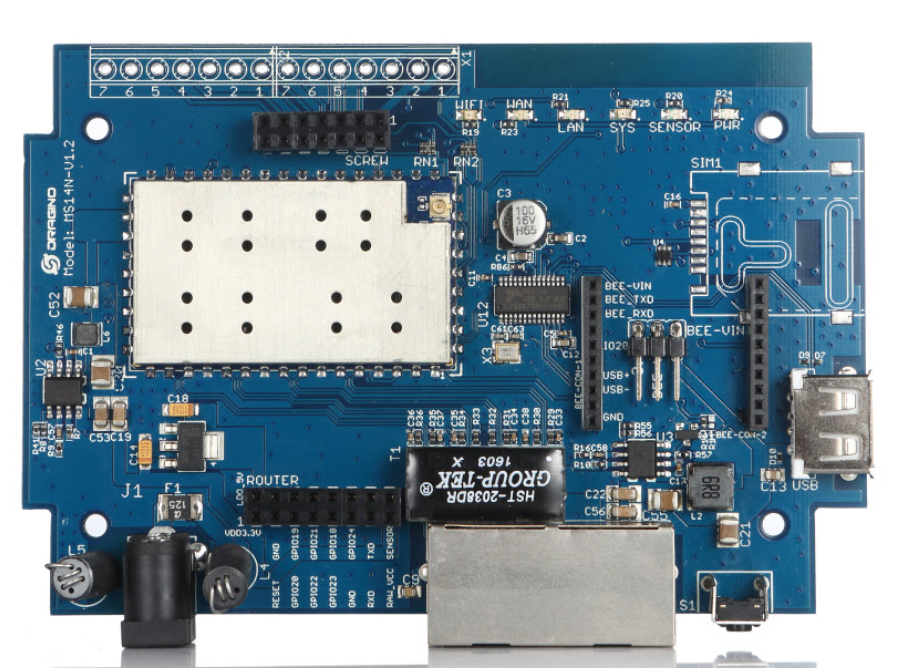

• AR9331 CPU for efficient Linux operation.
• 64 MB DDR RAM for smooth multitasking.
• 16 MB Flash storage for firmware and apps.

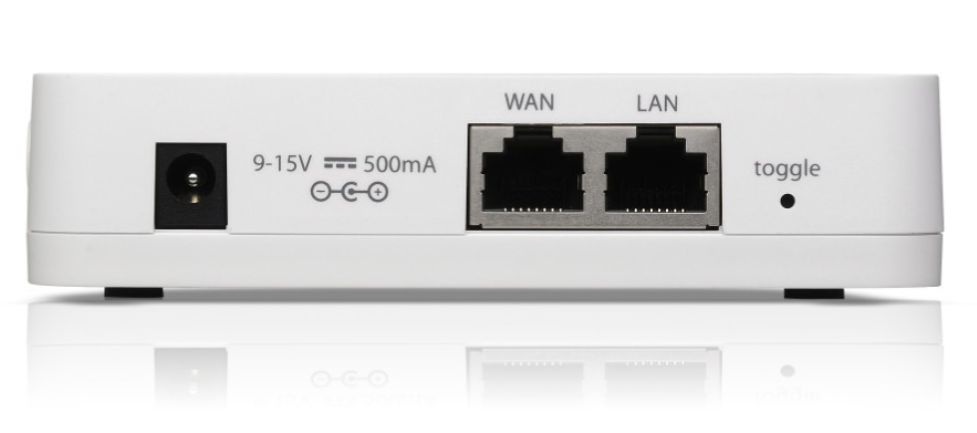

• 2 10/100 Mbps RJ45 Ethernet ports.
• 802.11 b/g/n Wi-Fi with internal antenna.

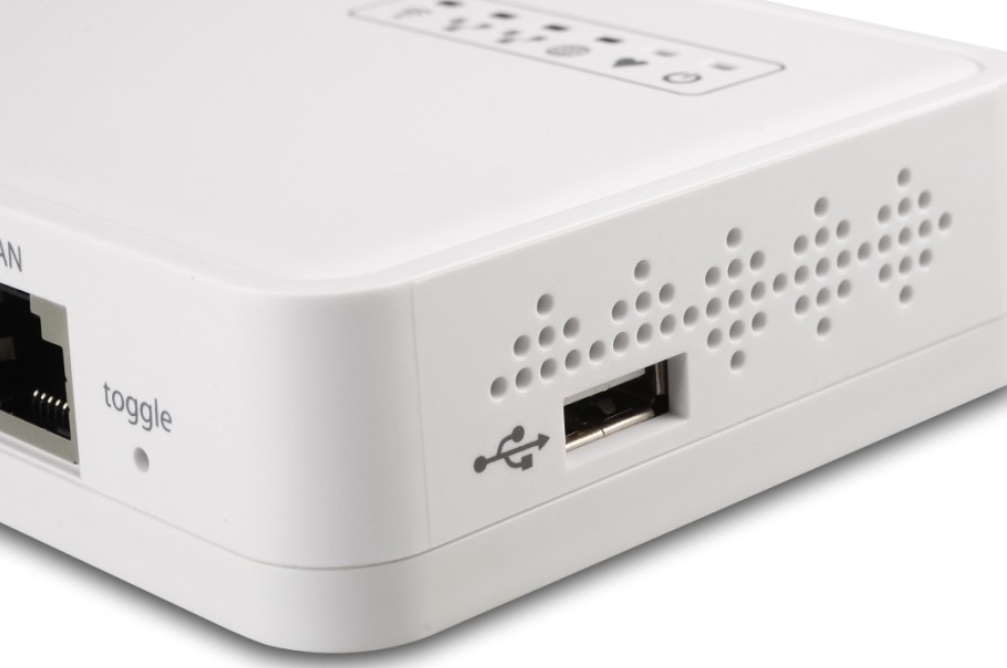

• 1 USB host port and 1 Internet USB interface.
• 14 screw-terminal positions for easy wiring.
• 9 ~ 12 V DC power input range.

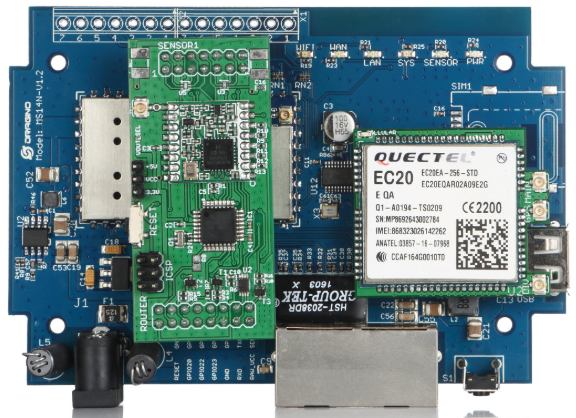

• Optional Quectel EC20 4G LTE module with micro-SIM slot.
• Optional Quectel UC20 3G module with diversity antennas.

Specifications
