Tired of cramped cases that let your GPU overheat? You need a chassis that keeps heat low and shows off your build. MSIs MAG PANO 110R PZ gives you a panoramic side window, built-in ARGB fans and solid metal construction. It fits ATX, micro-ATX and Mini-ATX boards, so you can install your components without fighting for space. The result is a cool, quiet system that looks as good as it performs.
PANO 110R Black Midi Tower PC Case Gaming ATX Front Mesh RGB Lights

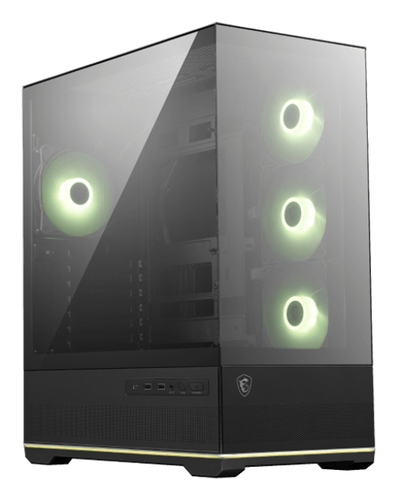

The MAG PANO 110R PZ is a black PC Case case designed for gamers who want reliable cooling and a clean look. It comes with three ARGB side fans and one rear fan, all controllable via MSI Mystic Light. The tempered-glass side panel offers a 270-degree view of your hardware. With room for a 20 cm graphics card and a 16 cm CPU cooler, it handles most mainstream builds.
Benefits
- Keeps temperatures low even during long sessions.
- Shows off components with a 270-degree glass view.
- Easy ARGB control through a single hub.
- Quiet operation thanks to optimized fan layout.
- Sturdy metal frame resists flex and vibration.
- Simple cable management with built-in routing.
Features
- 270-degree panoramic tempered glass side panel

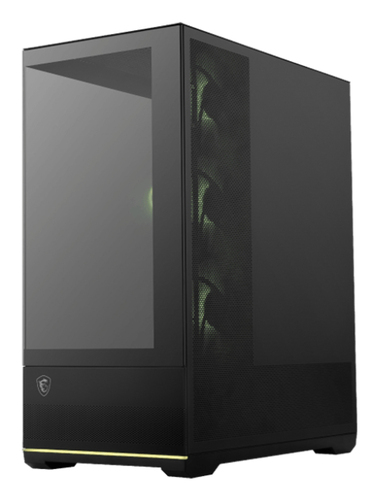

- Three 120 mm ARGB side fans pre-installed
- One 120 mm ARGB rear fan included
- Supports ATX, micro-ATX, Mini-ATX motherboards
- Max GPU length 20 cm, CPU cooler 16 cm
- Bottom PSU placement up to 40 cm
- 7 expansion slots, 22.5 and 23.5 bays
- 1-to-5 ARGB fan control hub
Specifications
| Design |
| Maximum PSU length |
40 cm |
| Maximum graphics card length |
20 cm |
| Maximum CPU cooler height |
16 cm |
| LED indicators |
Yes |
| On/off button |
Yes |
| Illumination location |
Case fans |
| Suitable for |
Gaming |
| Side window |
Yes |
| Number of expansion slots |
7 |
| Number of 2.5" bays |
2 |
| Number of 3.5" bays |
2 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ATX |
| Product colour |
Black |
| Material |
Tempered glass |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
| Supported power supply form factors |
ATX |
| Power supply location |
Bottom |
| Power supply included |
No |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Cooling |
| Top radiator sizes supported |
120,240,360 mm |
| Rear radiator sizes supported |
120 mm |
| Bottom radiator sizes supported |
120,240,360 mm |
| Side radiator sizes supported |
120,240,360 mm |
| Bottom fans diameters supported |
120,140,160 mm |
| Number of bottom fans supported (max) |
3 |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 120 mm |
| Side fans diameters supported |
120,140 mm |
| Number of side fans supported (max) |
3 |
| Side fans installed |
3x 120 mm |
| Storage |
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
| Height |
485 mm |
| Depth |
420 mm |
| Width |
225 mm |
