Tired of constantly rebooting because your board cant keep up with a high-end CPU? You need a platform that lets an Intel Core i9 run at full speed without overheating or instability. The MSI PRO H610M-G Motherboard gives you exactly that - stable LGA 1700 support, DDR5 memory up to 96 GB, and smart cooling that reacts to temperature changes automatically. Get reliable performance for work or play without the endless troubleshooting.

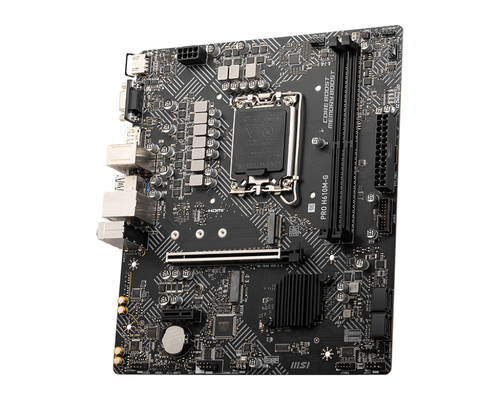

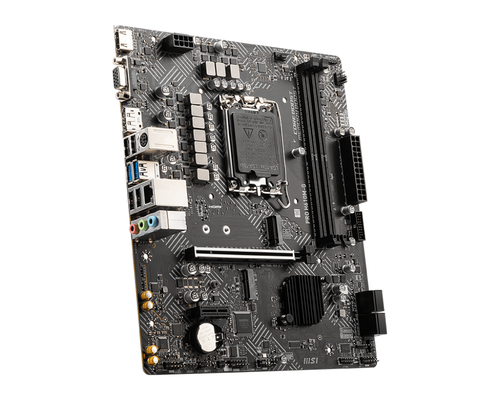

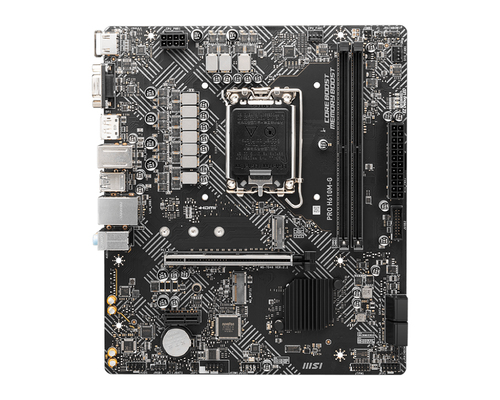

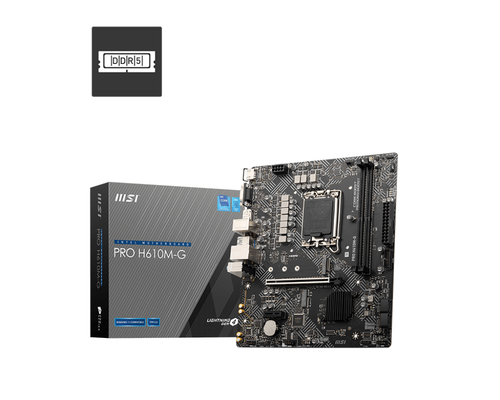

MSI PRO H610M-G Motherboard, Intel LGA 1700, Core i9 Support, DDR5, 96GB RAM
This micro-ATX motherboard is built for professionals who need a solid foundation for Intel 12th-gen processors. It fits small-form-factor cases, offers four SATA-III ports, one M.2 slot, and a Gigabit Ethernet port, making it ideal for workstations, content creation rigs, or compact gaming builds.
Benefits
- Stable performance with Core i9 on LGA 1700 socket.
- MSI AI cooling adjusts fan speed to keep temps low.
- DDR5 support up to 5600 MHz for fast data handling.
- Four SATA-III connections for ample storage options.
- Integrated Gigabit LAN ensures low-latency online work.
- Durable build reduces troubleshooting and extends lifespan.
Features
- Intel H610 chipset
- LGA 1700 socket for 12th-gen CPUs
- 2 DDR5 DIMM slots, 96 GB max
- PCIe 4.0 x16 slot, steel armor
- 1 M.2 slot, SATA-III x4
- Realtek ALC897 7.1-channel audio
- USB 3.2 Gen 1 Type-A x2, USB 2.0 x4
- UEFI AMI BIOS with 256 Mbit flash
Specifications
| Processor |
| Supported processor sockets |
LGA 1700 |
| Compatible processor series |
Intel® Core™ i9 |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
96 GB |
| Supported memory clock speed (max) |
5600 MHz |
| Supported memory clock speeds |
5600 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
SSD |
| Graphics |
| On-board graphics card |
No |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| 12V power connector |
Yes |
| TPM connector |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA connectors |
0 |
| Number of SATA II connectors |
0 |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
2 |
| Rear panel I/O ports |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
0 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Network |
| Wi-Fi |
No |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Product colour |
Black |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC897 |
| Motherboard chipset |
Intel H610 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
1 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
| BIOS |
| System Management BIOS (SMBIOS) version |
3.4 |
| ACPI version |
6.4 |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Weight & dimensions |
| Depth |
243.8 mm |
| Width |
211 mm |
| Packaging content |
| Drivers included |
Yes |
| Cables included |
SATA |
| Other features |
| Maximum internal memory |
96 GB |
| mSATA ports quantity |
0 |
