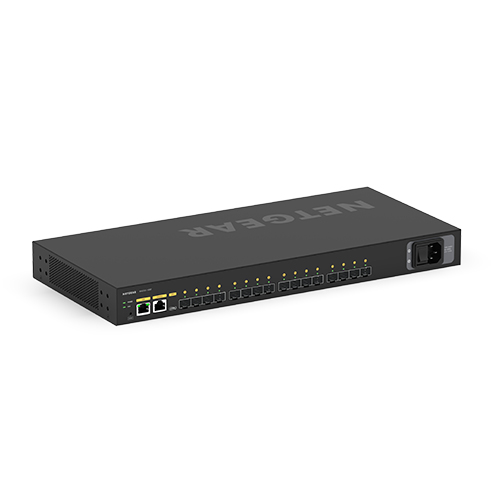

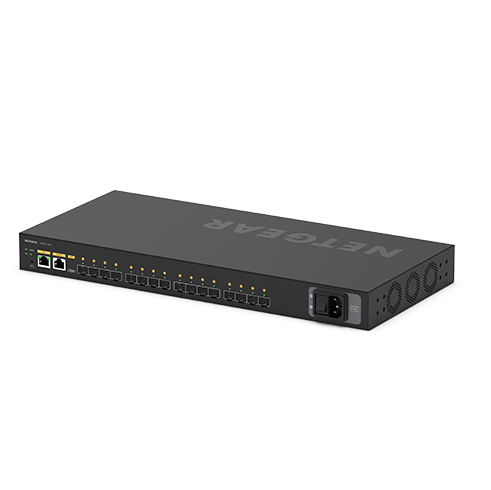

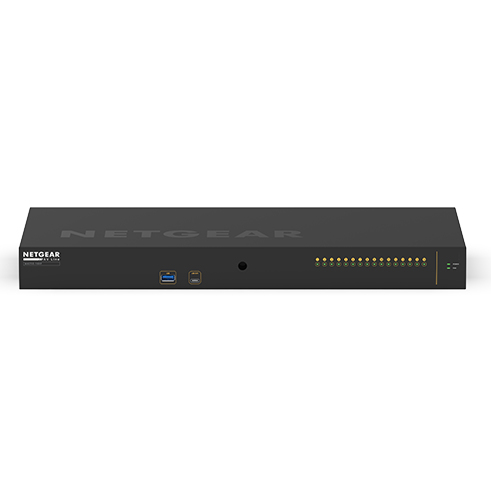

Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
Specifications
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
| Console port |
RJ-45/USB Type-C |
| SFP+ module slots quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
No |
| Network |
| Number of VLANs |
4093 |
| Virtual LAN features |
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support |
Yes |
| Broadcast storm control |
Yes |
| Link aggregation |
Yes |
| Rate limiting |
Yes |
| Spanning tree protocol |
Yes |
| Full duplex |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
16 MB |
| Jumbo frames |
12000 |
| Jumbo frames support |
Yes |
| Number of queues |
8 |
| Latency (10 Gbps) |
0.811 µs |
| Latency (1 Gbps) |
1.274 µs |
| Store-and-forward |
Yes |
| Throughput |
238.08 Mpps |
| Throughput |
238.08 Mpps |
| Switching capacity |
320 Gbit/s |
| MAC address table |
16000 entries |
| Security |
| Authentication |
MAC-based authentication |
| Authentication type |
RADIUS |
| BPDU filtering/protection |
Yes |
| Loop protection |
Yes |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Multicast features |
| IPv6 multicast entries |
2000 |
| IPv4 multicast entries |
2000 |
| Multicast support |
Yes |
| Design |
| LED indicators |
PoE, Power, Status |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Performance |
| Mean time between failures (MTBF) |
778769 h |
| Noise level |
56.7 dB |
| Internal memory |
2048 MB |
| Processor frequency |
1250 MHz |
| Processor model |
ARM Cortex-A9 |
| Built-in processor |
Yes |
| Power |
| Power consumption (typical) |
47.84 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
163.33 BTU/h |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
| Weight |
1.74 kg |
| Height |
43.2 mm |
| Depth |
100 mm |
| Width |
440 mm |
