Tired of missing or unreadable barcodes that slow down your checkout or inventory work? The Newland HR23 Dorada NLS-HR2300-S5 1D/2D 640x480 pixels Handheld Barcode Scanner is built to read every code quickly, even the damaged or low-contrast ones. It plugs into a USB port and lets you capture data without extra steps. If you need a reliable scanner that saves time and reduces errors, this device is the answer.

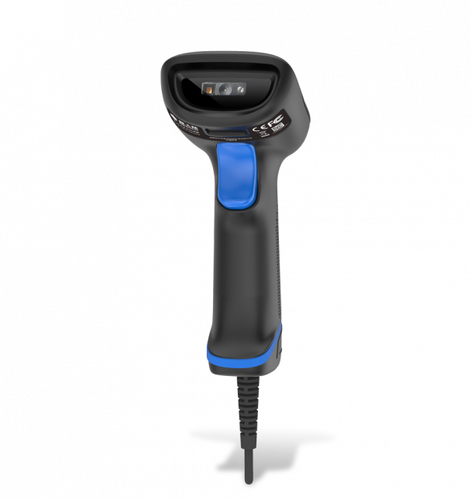

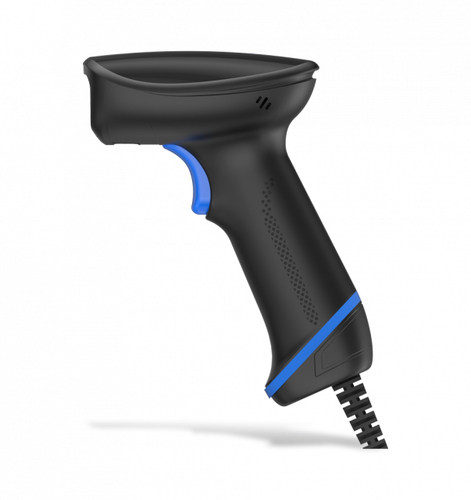

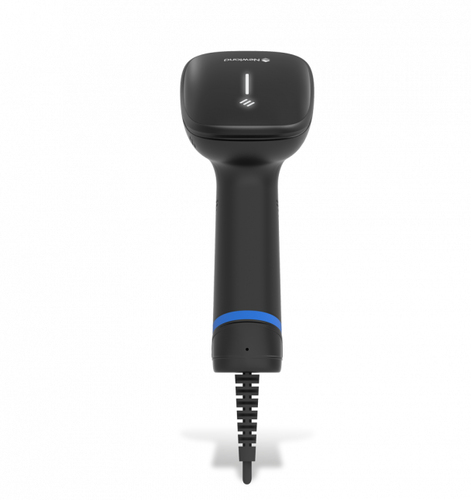

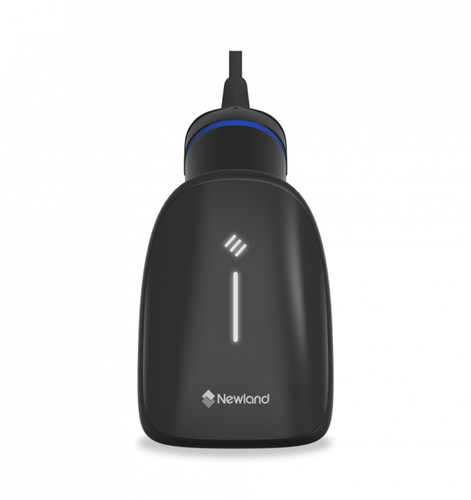

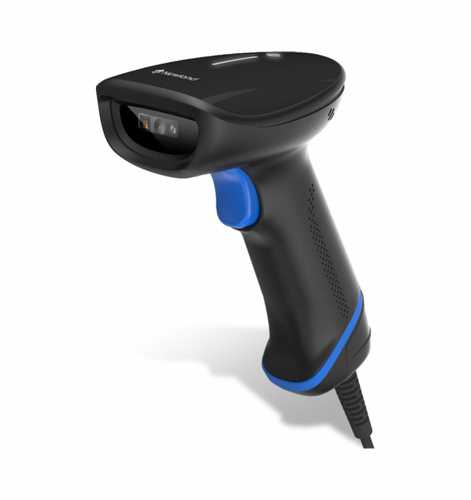

Newland HR23 Dorada NLS-HR2300-S5 1D/2D 640x480 pixels Handheld Barcode Scanner
Many shops and warehouses struggle with scanners that cannot read high-density or distorted codes, causing bottlenecks and lost sales. When a scanner fails, workers have to re-type numbers, which is slow and prone to mistakes. The Newland HR23 Dorada solves this by using advanced decoding technology that captures both 1D and 2D barcodes at entry-level cost. Its powerful CMOS sensor and wide field of view turn hard-to-read tags into instant reads, keeping your line moving. The scanner also includes Easyset software, so you can change settings, update firmware, or clone devices without touching the hardware. This flexibility lets IT staff roll out the scanner across many workstations quickly.
Key Features
640 x 480 pixel CMOS sensor for clear image capture.
-
- 34 vertical and 45 horizontal field of view covers large codes.
- Supports QR, Data Matrix, PDF417, Aztec, and all common 1D symbologies.
- IP52 rating protects against dust and splashes.
- Drop resistance up to 1.5 m safeguards against accidents.
- Built-in buzzer and LED indicators confirm successful reads.
- Adjustable Smart Stand and gooseneck options for hands-free use.
- USB 2.0 interface provides fast
Specifications
| Scanning |
| Pitch reading angle |
0 - 60° |
| Tilt reading angle |
0 - 360° |
| Vertical field of view |
34° |
| Horizontal field of view |
45° |
| Optical sensor resolution (W x H) |
640 x 480 pixels |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Linear (1D) barcodes supported |
AIM-128, China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Databar RSS14, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 2 of 5, UPC-A, UPC-E, ISBT 128, GS1 Composite |
| Sensor type |
CMOS |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| USB 2.0 ports quantity |
1 |
| Standard interfaces |
USB |
| Connectivity technology |
Wired |
| Performance |
| Certification |
IEC62471 |
| Vibration function |
Yes |
| Print contrast |
20% |
| Buzzer |
Yes |
| LED indicators |
Yes |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Power |
| Power consumption |
190 mA |
| Input voltage |
5 V |
| Battery voltage |
5 V |
| Power source type |
USB |
| Weight & dimensions |
| Weight |
137 g |
| Height |
161 mm |
| Depth |
68 mm |
| Width |
95 mm |
| Operational conditions |
| Drop resistance |
1.5 m |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Technical details |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
