Many businesses lose time and money when a scanner cannot read damaged or crowded barcodes. Missed reads slow down checkout lines, cause inventory errors, and frustrate staff. You need a device that works fast, even on poor quality codes, and that can survive a busy work environment. The Newland HR33 Marlin gives you reliable, quick scans so you can keep the workflow moving without interruptions.

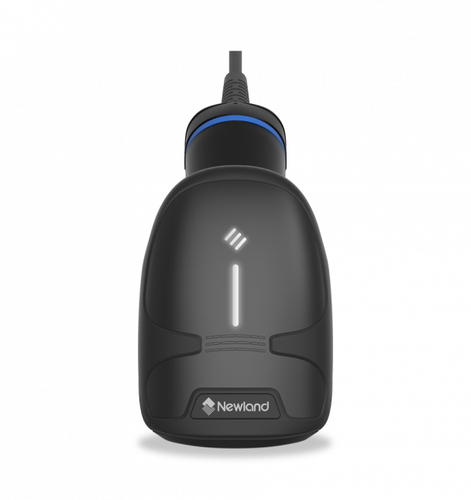

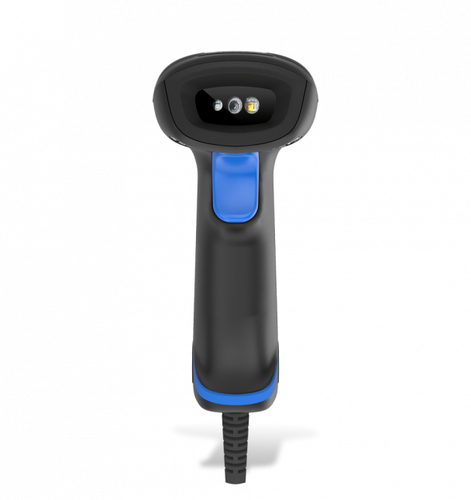

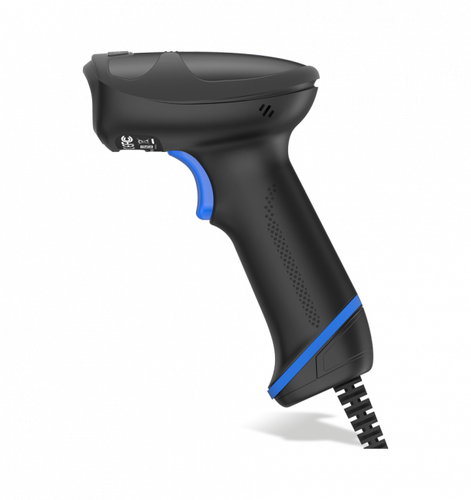

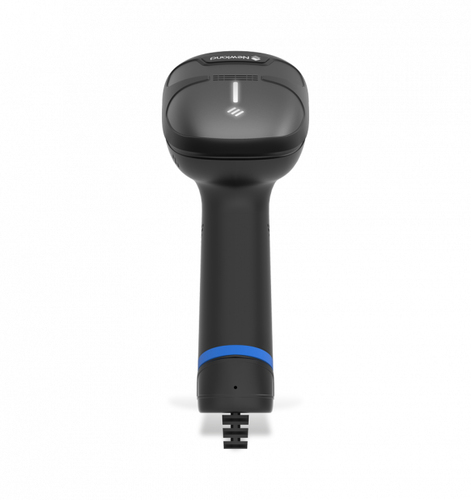

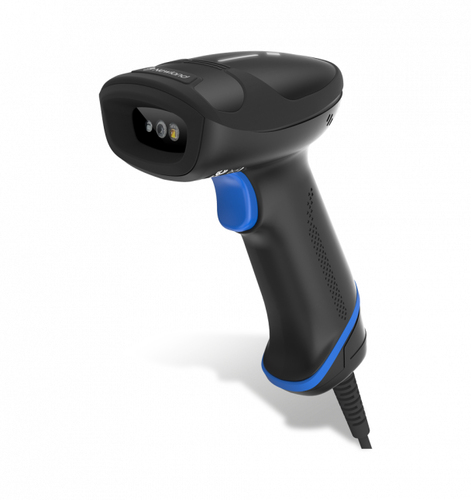

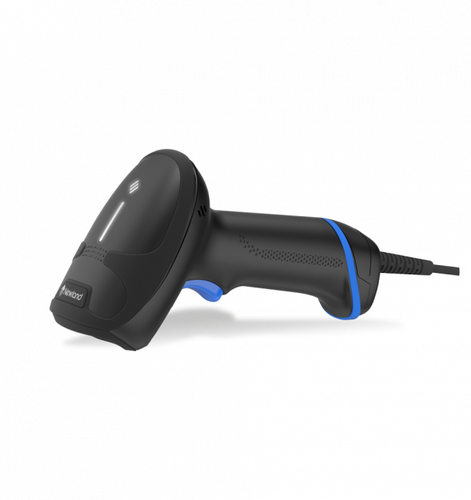

Newland HR33 Marlin NLS-HR3300-S5 1D/2D 1280x800 pixels Handheld Barcode Scanner with Newland - SCNR-135
Imagine a scanner that never hesitates, even on tiny QR codes or scratched UPCs. The Newland HR33 Marlin is a corded handheld reader built for fast 1D and 2D barcode capture. It is perfect for retail counters, warehouses, and ticketing booths where every second counts. If you have struggled with missed reads or broken scanners, this device solves the problem with a powerful sensor, laser guide, and sturdy design. Newland brings the latest decoding technology to your daily tasks.
Key Features
- 1280 x 800 pixel CMOS sensor for clear image capture.
- Laser guide (Acuscan) for precise targeting of close-spaced codes.
- Supports a full range of 1D barcodes, 2D matrix codes, and OCR types.
- Horizontal field of view 48, vertical field of view 30.
- USB 2.0 connection with optional RS-232 interface.
- Adjustable auto-sense stand and gooseneck stand for hands-free operation.
- Built-in buzzer and LED indicators give instant feedback.
- Operating temperature -20 C to 60 C and humidity 5-95%.
- Compliant with CE, FCC, RoHS, IEC62471, IEC60825 standards.
Specifications
| Scanning |
| Pitch reading angle |
0 - 60° |
| Tilt reading angle |
0 - 360° |
| Vertical field of view |
30° |
| Horizontal field of view |
48° |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| Laser guide |
Yes |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Chinese Sensible Code, Code 1, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Linear (1D) barcodes supported |
AIM-128, China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Composite, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 2 of 5, UPC-A, UPC-E |
| OCR types supported |
China Travel Permit OCR, Chinese ID Card, Passport OCR |
| Sensor type |
CMOS |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| USB 2.0 ports quantity |
1 |
| Standard interfaces |
RS-232, USB |
| Connectivity technology |
Wired |
| Performance |
| Certification |
IEC62471, IEC60825 |
| Vibration function |
Yes |
| Print contrast |
15% |
| Buzzer |
Yes |
| LED indicators |
Yes |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Power |
| Power consumption |
281 mA |
| Power source type |
USB |
| Weight & dimensions |
| Weight |
140 g |
| Height |
166 mm |
| Depth |
68 mm |
| Width |
95 mm |
| Operational conditions |
| Drop resistance |
1.5 m |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Technical details |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
