Looking for a computer that can run nonstop in a factory, a warehouse or a remote site? The Nodka NP-6116-N97 is a fanless DIN-rail box PC that stays cool, fits in tight spaces and talks to many devices at once. If you have been fighting overheating, loose connections or hard-to-manage cables, this unit solves those issues so your system runs smooth and reliable.

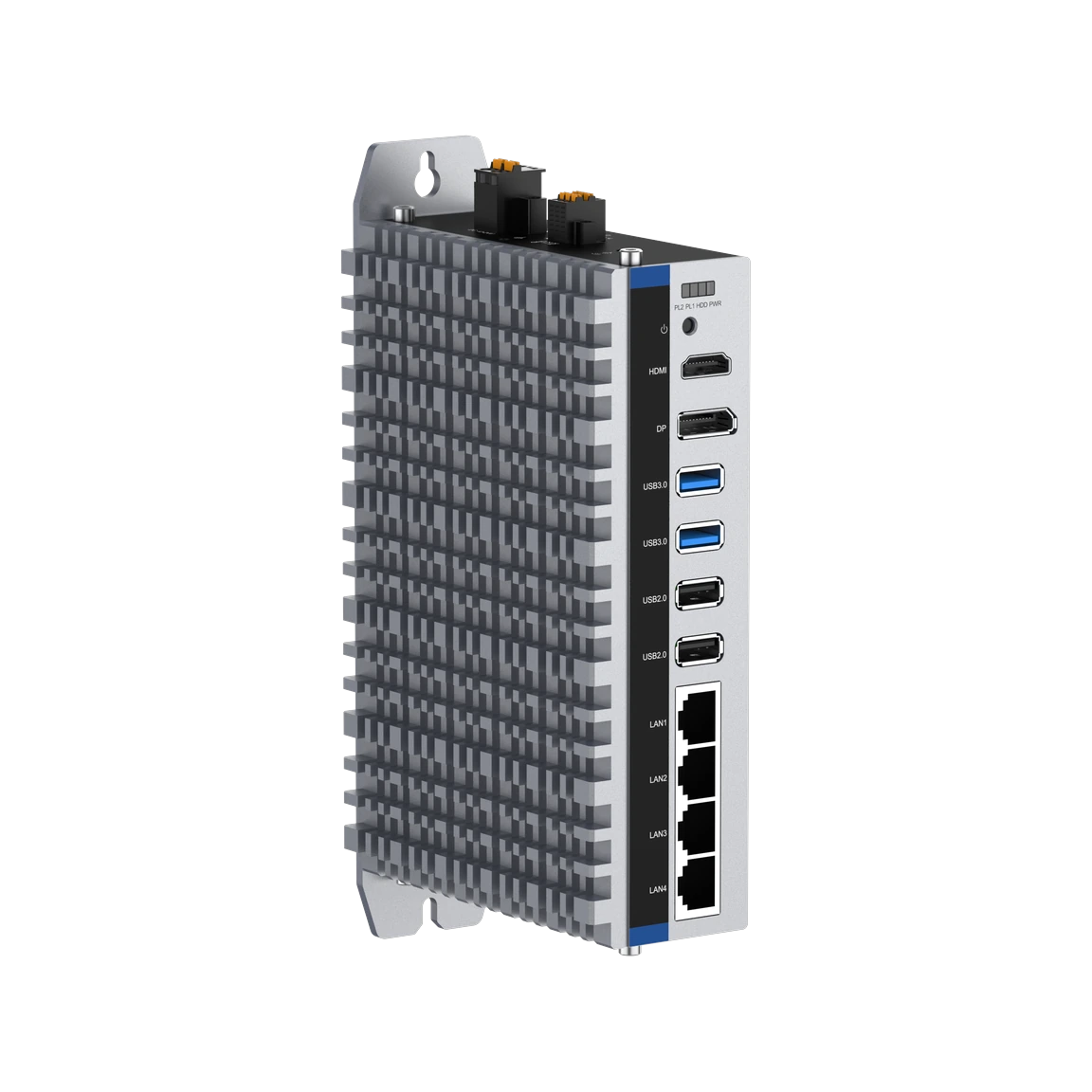

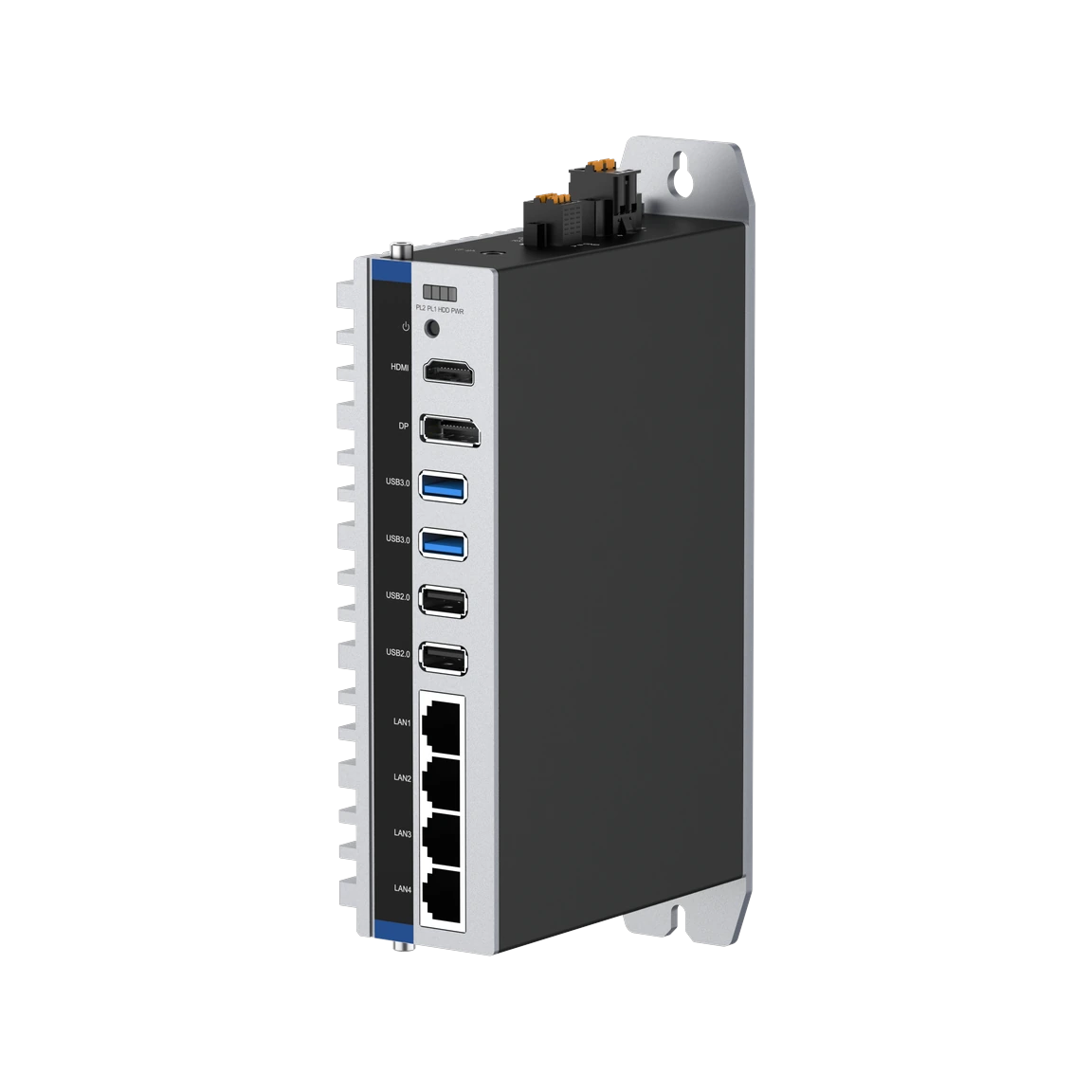

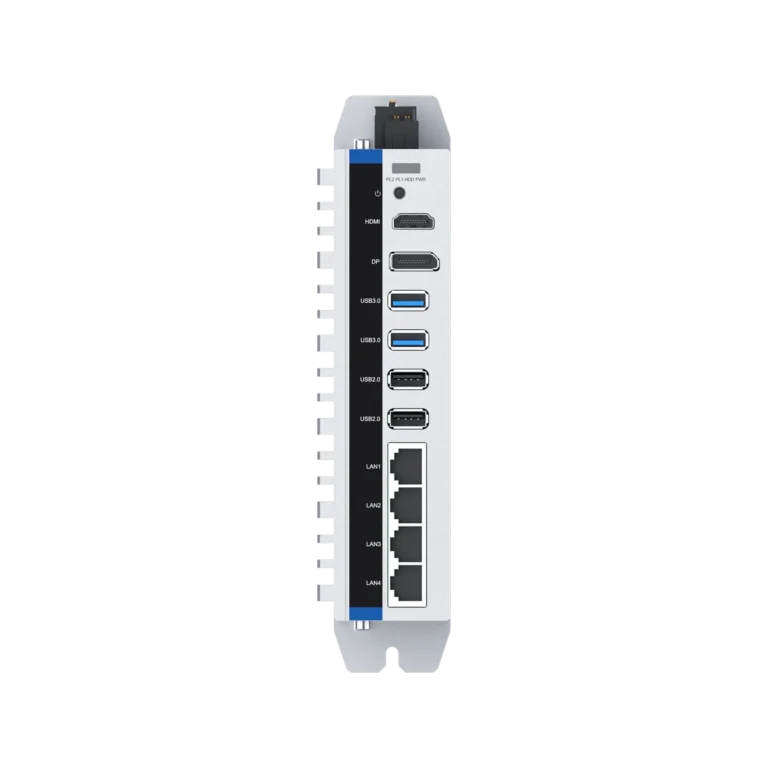

Nodka NP-6116-N97 | Fanless DIN Rail Box PC with 4 LAN, Dual Display & M.2 SSD
Industrial control panels often need a small computer that never stops, even in dusty or hot places. When a PC overheats or fails, the whole line can shut down and cost money. This Nodka box removes the fan, so there is no dust build-up and no moving parts to wear out. It gives you four gigabit Ethernet ports, two video outputs and fast M.2 storage, all in a rugged metal case that mounts on a DIN rail. The result is a stable, low-maintenance core for any automation task.
Usages of Nodka
Use it as the controller for a production line that runs 24/7. It works well in building-management systems that need many network connections. It can be the edge computer for a smart-factory sensor hub. It also fits in transportation cabinets where space and vibration resistance are critical. In each case the box provides reliable computing without fans and with easy DIN-rail installation.
Benefits
- Fanless design prevents dust and reduces maintenance.
- Four LAN ports let you connect multiple machines without extra switches.
- Dual 4K displays give clear graphics for operators.
- M.2 SSD provides fast data logging and quick boot times.
- Rugged metal case survives temperature swings and vibration.
Key Features
- Fanless aluminum-magnesium alloy chassis.
- Intel N97 quad-core CPU, 12 W TDP.
- 4 Intel i210-AT Gigabit Ethernet ports.
- 1 HDMI and 1 DisplayPort, up to 4K resolution.
- 2 USB 3.0 and 2 USB 2.0 connectors.
- 1 M.2 2242 M-Key slot for SSD.
- 1 Mini PCIe slot with SIM holder for 4G or Wi-Fi.
- RS232 and RS485 COM ports for serial devices.
- 12-24 V DC input with over-voltage, over-current and reverse-polarity protection.
- Compact size 170 112 48 mm, DIN-rail or wall mount.
- Operating temperature -20 C to 60 C, shock and vibration rated.
- Supports Windows 10 and Ubuntu Linux.
Specifications
| Model |
NP-6116-N97 |
| CPU |
Intel® N97, 4 cores, 6MB Intel® Smart Cache, 12W TDP |
| BIOS |
AMI UEFI BIOS |
| Memory |
1 x SO-DIMM DDR4-3200MHz, up to 16GB |
| Storage |
1 x M.2 SSD 2242 M-Key |
| USB |
2 x USB 3.0, 2 x USB 2.0 |
| COM Ports |
1 x RS232 (COM1), 1 x RS485 (COM2) |
| LAN |
4 x Intel® i210-AT Gigabit Ethernet |
| Audio |
1 x 3.5mm audio port |
| Display |
1 x HDMI (3840 x 2160 @30Hz), 1 x DP (4096 x 2160 @60Hz) |
| LED |
2 x Programmable LEDs |
| Expansion |
1 x Full-size Mini PCIe slot with SIM card holder |
| Power Input |
DC 12-24V ±10%, with overcurrent, overvoltage, and reverse polarity protection |
| Power Consumption |
Max. 60W |
| Structure |
Aluminum-magnesium alloy, Fanless, Wall-mount or DIN-Rail |
| Dimensions |
170mm (L) x 112mm (W) x 48mm (H) |
| Net Weight |
1.25 Kg |
| Operating Temperature |
-20°C ~ 60°C (with airflow and SSD) |
| Storage Temperature |
-40°C ~ 80°C |
| Humidity |
5-95% RH (non-condensing) |
| Vibration |
1.5Grms (5~500Hz, with SSD, IEC60068-2-64) |
| Shock |
20G peak acceleration (11ms duration), IEC60068-2-27 |
| EMC |
CE/FCC Class A |
| OS Support |
Windows 10, Ubuntu Linux |
