Imagine a data center that stalls every time traffic spikes. The bottleneck is not the servers, but the network switch that cannot keep up. The NVIDIA MSN2010-CB2F 25/100GbE 1U Open Ethernet Switch is built to erase that bottleneck. It delivers fast, reliable Ethernet connections for demanding workloads, so you never lose performance when the load grows.

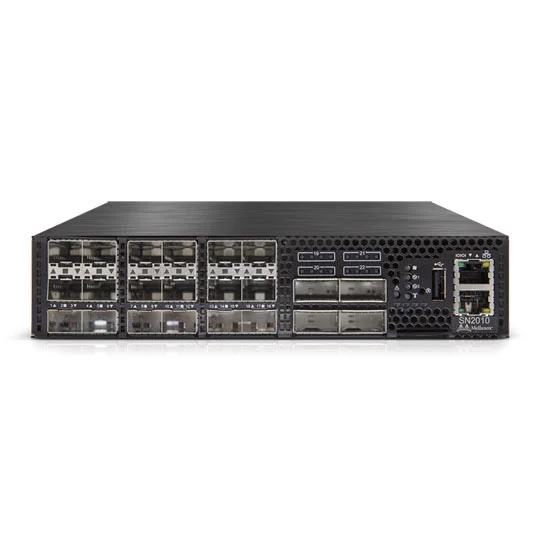

NVIDIA MSN2010-CB2F 25/100GbE 1U Open Ethernet Switch
Many businesses struggle with slow data transfer and frequent packet loss because their switches cannot handle mixed-speed traffic. This problem hurts productivity, raises latency, and can cause costly downtime. The MSN2010-CB2F solves the issue by offering 18 ports that support 10/25 GbE and four ports that can split into 40 GbE or 100 GbE, all managed by NVIDIA Spectrum. With a 1.7 Tb/s throughput and 300 ns latency, the switch moves data quickly and keeps your network stable, no matter how heavy the load.
Key Features
- 18 ports of 10/25 GbE plus 4 splittable 40/100 GbE ports.
- Intel x86 2.40 GHz quad-core CPU for advanced packet processing.
- 8 GB DDR3L SDRAM and 16 GB M.2-SATA SSD for fast buffering.
- NVIDIA Spectrum switch ASIC delivering 1.26 Bpps forwarding capacity.
- Throughput of 1.7 Tb/s and latency as low as 300 ns.
- Operating temperature 0 C to 40 C, suitable for most data-center environments.
- Power input 100-240 V ac, typical consumption 66 W with passive cables.
- Comprehensive safety and EMC certifications (CE, FCC, CB, etc.).
Specifications
| Mechanical |
|
| Size |
43.8mm (H) x 200mm (W) x 508mm (D)
1.72" (H) x 7.87" (W) x 20" (D)
|
| Mounting |
19” Rack mount |
| Weight |
4.5kg |
| Speed |
10/25/40/50/56/100GbE per port |
| Environmental |
|
| Temperature: |
Operational: 0° to 40°CNon-Operational: -40° to 70°C |
| Humidity: |
Operational: 10% - 85% non-condensingNon-Operational: 10% - 90% non-condensing |
| Altitude: |
3050m |
| Noise level: |
73.7 dB(A) |
| Regulatory |
|
| Safety/ EMC: |
CB, cTUVus, CE, CU, S_Mark, CE, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC |
| RoHS: |
RoHS complaint |
| Power |
|
| Input Voltage: |
1x/2x, 100-240Vac, 4A |
| Global Power Consumption: |
Typical power with passive cables (ATIS): 66W |
| Main Devices |
|
| CPU |
Intel x86 2.40GHz Quad Core |
| PCIe |
4x Gen2.0 |
| Switch |
NVIDIA Spectrum |
| Memory |
SDRAM: 8GB DDR3L 1600 MT/s SO-DIMM |
| Storage |
16GB Dual Channel MLC M.2-SATA SSD |
| Throughput |
1.7Tb/s |
| Forwarding capacity |
1.26 Bpps |
| Latency |
300ns |
