Upgrade your build with the NZXT F420 RGB Core 140mm Fan and experience cooler, quieter performance while adding striking white RGB lighting that makes every component shine. This all‑in‑one fan module delivers powerful airflow and dynamic lighting with a single, easy‑to‑install frame.
NZXT F420 RGB Core 140mm Fan White PWM RGB Case Cooling Airflow PC Module

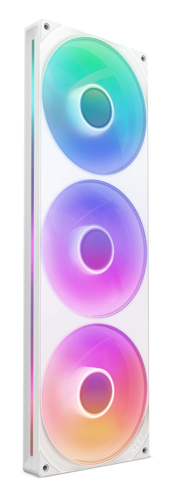

Designed for effortless setup, the F420 integrates three 140 mm fans into one sleek chassis. You connect just one cable to an NZXT controller or a motherboard ARGB header, and the CAM software lets you fine‑tune speed and lighting. Fluid Dynamic Bearings keep noise low and ensure a 60,000‑hour lifespan.

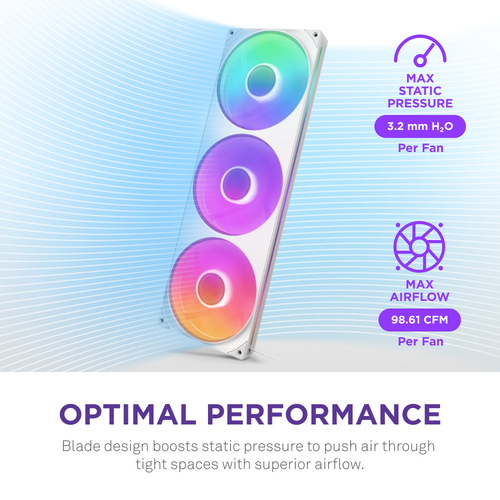

The blade geometry creates 3.2 mmH₂O static pressure, pushing air through tight spaces for optimal cooling. With PWM support, the fans automatically adjust to your system’s temperature, delivering efficiency when you need it and quiet operation when you don’t.
Anti‑vibration rubber corners and Zero RPM Mode silence the fans during light loads, while eight aRGB LEDs per fan shine through semi‑translucent blades for vivid, customizable effects.
Benefits
- Powerful static pressure (3.2 mmH₂O) clears heat from dense components.
- Fluid Dynamic Bearings provide ultra‑low noise and a 60,000‑hour lifespan.
- Zero RPM Mode shuts fans off at low temperatures for silent operation.
- Eight aRGB LEDs per fan deliver vibrant, customizable lighting.
Uses of the product
- Cooling high‑performance CPUs and GPUs in compact cases.
- Enhancing airflow in radiators and heat‑sink setups.
- Adding synchronized RGB lighting to match other NZXT accessories.
- Creating a quiet, temperature‑responsive environment for workstations.
Features
- All‑in‑one frame with three 140 mm fans and a single 8‑pin connector.
- PWM control up to 2000 RPM for dynamic speed adjustment.

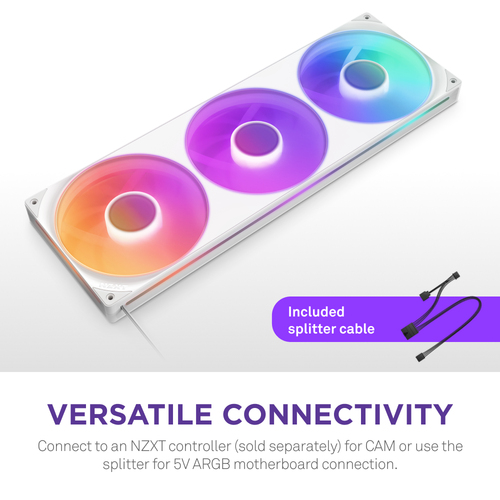

- Integrated splitter cable for easy connection to any 5V ARGB header.
- Anti‑vibration rubber corners and 34.5 dB noise level for a smooth, quiet experience.
Specifications
| Performance |
| Fan's mean time to failure (MTTF) |
60000 h |
| Fan speed (max) |
2000 RPM |
| Fan speed (min) |
500 RPM |
| Fan static pressure |
3.2 mmH2O |
| Quantity per pack |
1 pc(s) |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support |
Yes |
| Maximum airflow |
98.61 cfm |
| Noise level |
34.5 dB |
| Fan diameter |
14 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
| Fan connector |
8-pin |
| Illumination colour |
Multi |
| Number of LEDs |
8 |
| Illumination LED |
Yes |
| Number of fans |
3 fan(s) |
| Material |
Plastic, Rubber |
| Product colour |
White |
| Power |
| Fan current |
0.95 A |
| Fan voltage |
12 V |
| Fan power consumption |
11.4 W |
| Weight & dimensions |
| Cable length |
600 m |
| Fan dimensions (W x D x H) |
140 x 140 x 26 mm |
| Height |
420 mm |
| Depth |
26 mm |
| Width |
140 mm |
| Technical details |
| Warranty period |
5 year(s) |
| Packaging content |
| Number of screws |
4 |
| Screws included |
Yes |
| Other features |
| Noise level |
34.5 dB |
