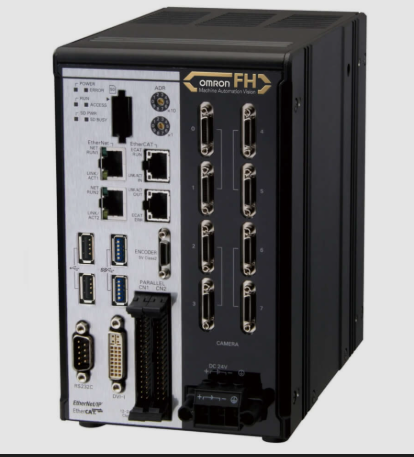

OMRON FH-5552-20 Vision Controller Core High Speed Multi Camera

Imagine a production line that never misses a defect, even when you run at full speed. The OMRON FH-5552-20 Vision Controller Core High Speed Multi Camera makes that possible. It is a powerful controller that links up to eight industrial cameras and processes images in real time. If you struggle with slow inspection or missed parts, this device gives you the speed and reliability you need to keep quality high and waste low.

OMRON FH-5552-20 Vision Controller Core High Speed Multi Camera

Manufacturers often face the dilemma of choosing between fast line speeds and accurate visual inspection. Slow controllers force you to reduce throughput, while fast ones may miss subtle defects. This gap can cost time, money, and reputation. The FH-5552-20 camera solves the problem by offering eight-camera support, 8-core processing, and parallel image handling. You get true high-speed vision without sacrificing detection quality, so your line can run at its designed pace with confidence.

Benefits

• Run at full line speed while still catching tiny defects.
• Connect up to eight cameras for flexible inspection layouts.
• Reduce downtime thanks to built-in parallel processing.
• Easily integrate with Ethernet/IP, PROFINET, and EtherCAT networks.
• Simple flow-editing setup lets you change inspection logic fast.

Usages

The FH-5552-20 fits any factory that needs fast visual checks. Use it on a bottling line to verify fill levels, on a electronics board line to detect missing components, or on a packaging line to read barcodes and check label placement. It also works well in automotive assembly for weld verification and in food processing for surface quality. Wherever you need multiple cameras to look at different angles at the same time, this controller delivers the speed and accuracy you require.

Key Features

• 8-core processor for high-speed parallel image handling.
• 32 GB RAM and 128 GB ROM for large vision programs.
• Supports up to 8 FH-S and FZ-S series cameras.
• Standard, multi-line, and non-stop operation modes.
• RS-232C serial port and dual 1000BASE-T Ethernet ports.
• EtherNet/IP, PROFINET, TCP/UDP, and EtherCAT slave support.
• 19 inputs and 34 outputs for extensive I/O integration.
• USB 3.0 (2 ports) and USB 2.0 (4 ports) for fast data transfer.
• DVI-I monitor output for real-time image display.
• Power supply 20.4-26.4 VDC, max 12.2 A current.
• Operating temperature 0 to +45 C, humidity 35-85 % RH.
• Robust housing of zinc-plated steel/aluminum, vibration tolerance 15 m/s.
