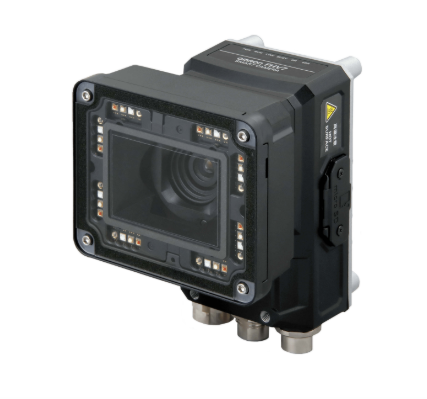

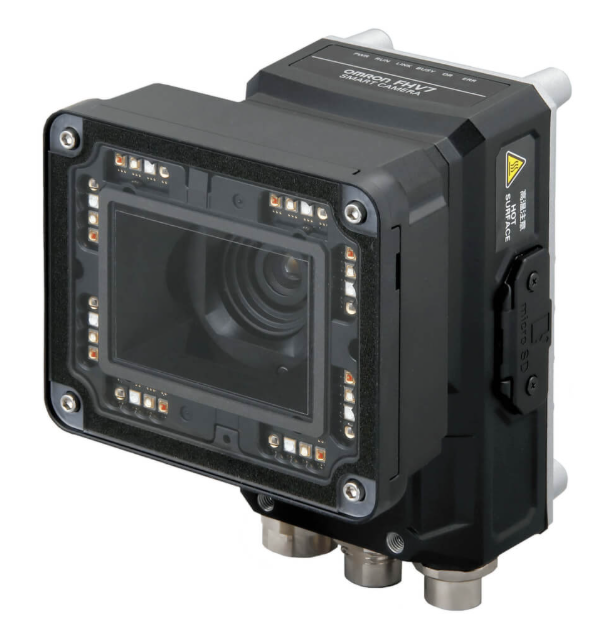

OMRON FHV7X Smart Vision Camera 1.6MP 224fps IP67

In fast moving factories, missing a defect or a wrong part can stop the line and cost money. Operators need a camera that can see tiny details, work at high speed, and survive dust, water and temperature changes. The OMRON FHV7X Smart Vision Camera gives you that reliability and speed in one rugged package.

OMRON FHV7X Smart Vision Camera 1.6MP 224fps IP67 with OMRON

See every detail, even when the line runs at full speed. The OMRON FHV7X Smart Vision Camera 1.6MP 224fps IP67 is a high-performance monochrome vision sensor built for industrial automation. It captures clear images at 224 frames per second, so fast moving parts never blur. Factories that struggle with missed reads, slow inspection or equipment that fails in harsh conditions will find this camera solves those problems. With built-in Ethernet, PROFINET and EtherCAT connections, you can plug it straight into your control system.

Usages

This camera works wherever you need fast, accurate vision. Use it to guide 2-D robots along a conveyor, inspect beads on a production line, read and verify barcodes or QR codes, count items in a bin, detect surface defects, measure dimensions, perform OCR on labels, or simply check for the presence or absence of a part. It fits both clean-room and dusty shop floor environments thanks to its IP67 rating.

Benefits

• Capture sharp images at 224 fps, so fast motion never blurs.
• 1.6 MP resolution reveals tiny defects that lower-resolution cameras miss.
• IP67 housing protects the camera from water, dust and extreme temperatures.
• Easy integration with Ethernet/IP, PROFINET, EtherCAT and RS-232C saves wiring time.
• Motorized autofocus with 16 mm lens adapts quickly to changing part distances.

Key Features

• Monochrome CMOS sensor, 1.6 MP (1440 1080) resolution.
• Global shutter eliminates rolling-shutter distortion.
• 224 fps frame rate for high-speed inspection.
• 16 mm motorized lens with autofocus range 110-2000 mm.
• White LED illumination for consistent lighting.
• IP67 protection rating for water and dust resistance.
• Ethernet/IP, PROFINET, EtherCAT and RS-232C communication ports.
• Supports code reading, OCR, measurement and defect detection.
• Compact design fits tight mounting spaces.
• Suitable for 2D robot guidance, bead inspection, counting and presence checking.
