OMRON G9SR-EX031-T90-RC Safety Relay 24VDC 3NO Timer Expansion Unit

When a machine needs a safe way to start and stop, missing timing control can cause accidents or costly downtime. This problem matters because unsafe stops can damage equipment and put workers at risk. The OMRON G9SR-EX031-T90-RC Safety Relay 24VDC 3NO Timer Expansion Unit adds reliable timing and safe switching, giving you a clear solution that protects people and keeps production running.

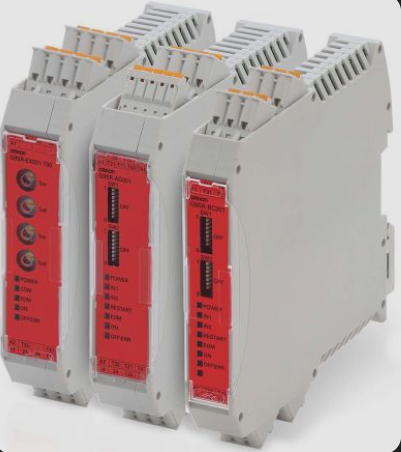

OMRON G9SR-EX031-T90-RC Safety Relay 24VDC 3NO Timer Expansion Unit with OMRON

This unit is a compact expansion module that works with an OMRON advanced safety relay. It adds three safety contacts and a built-in timer, so you can set safe ON-delay and OFF-delay periods. If you have a line that must wait before a motor starts, or you need a guaranteed stop time, this relay gives you that control. It solves the common issue of missing safe timing in automated equipment.

Usages

The expansion unit fits into any OMRON safety system that needs extra timing. Use it on conveyor belts where a short pause prevents product jams. Install it on robotic cells to give a safe gap before a robot arm moves. It also works well in packaging machines that require a delay before sealing. The module can be placed up to one meter from the main unit, making wiring simple.

Benefits

• Adds safe ON and OFF delays to protect workers and equipment.
• Three safety contacts give flexible wiring for multiple safety circuits.
• Compact size saves panel space and simplifies installation.
• High mechanical life reduces replacement costs over time.
• Easy terminal block with spring-type clamps speeds up wiring.

Key Features

• Rated voltage 24 VDC with 20 % tolerance.
• Three PST-NO safety outputs, one immediate and two timed.
• Built-in safe ON-delay and OFF-delay up to 90 seconds.
• 16 discrete time steps for precise delay setting.
• 5 A switching capacity on safety outputs.
• Solid-state auxiliary PNP output for extra signaling.
• Response time max 50 ms, off-to-on max 150 ms.
• Operating temperature -10 C to +55 C, no condensation.
• Safety category PLe (ISO 13849-1) and SIL 3 (EN 62061/61508).
• Supports up to three expansion units per advanced unit, 1 m spacing.
