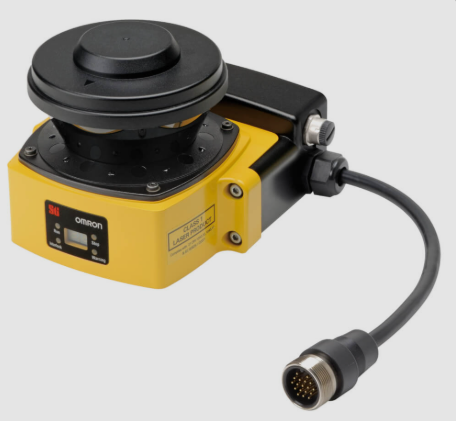

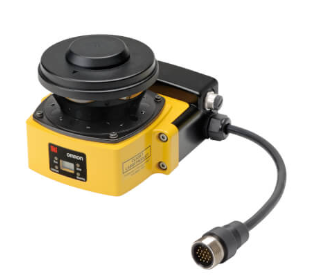

OMRON OS32C-SP1-DM Safety Laser Scanner 3m Range 270° Scan IP65

When a machine works close to people, a missed detection can cause serious injury and costly downtime. Factories need a reliable way to stop a robot or conveyor the moment someone enters a danger zone. Without a fast, accurate safety scanner, you risk non-compliance with safety standards and loss of productivity. The OMRON OS32C-SP1-DM Safety Laser Scanner 3m Range 270 Scan IP65 gives you a clear, instant barrier that protects hands, arms and the whole work area.

OMRON OS32C-SP1-DM Safety Laser Scanner 3m Range 270 Scan IP65 with OMRON

This compact laser scanner watches a 270 field up to 3 m away and sends a safety signal in less than 80 ms. It is built for harsh industrial sites with an IP65 rating, so dust and water will not stop it. If a person or object crosses the virtual safety boundary, the scanner instantly cuts power to the machine. You get a simple plug-and-play solution that meets IEC 61496-1 safety class 3 and keeps your line running safely.

Usages

Use this scanner on robot arms that move near operators, on palletizing machines that work side by side with workers, and on conveyor belts that cross human traffic lanes. It also fits safety gates for doors, loading zones and collaborative work cells. The side cable entry lets you mount it in tight spaces while the Ethernet/IP port integrates it with existing PLCs.

Benefits

• Fast 80 ms response stops accidents before they happen.
• Wide 270 scan angle covers large work zones with one device.
• IP65 protection lets you install it in dusty or wet environments.
• Easy Ethernet/IP connection reduces wiring time and error.
• Configurable resolution lets you match safety needs to each application.

Key Features

• Maximum safety range 3 m, warning range 10 m
• Scanning interval 0.4 Hz for stable monitoring
• Object resolution options 30, 40, 50, 70 mm
• 140 safety fields for detailed zone definition
• PNP output type for easy integration
• Two protected semiconductor outputs, two signalling outputs
• Class 1 laser protection for safe operation
• Supply voltage 16.8-30 V DC, max output 250 mA
• Side cable entry with pigtail connector
• Alert field output for additional warning signals

Specifications
