When a control system needs a steady 24 V supply, many cheap adapters give noisy or unstable power. Unstable voltage can cause sensors to reset, motors to stall, and production lines to stop. It also shortens the life of sensitive electronics. The OMRON S8VK-G06024 60W 24V Switch Mode Power Supply fixes this by delivering clean, reliable power that meets industrial standards, so your equipment runs smoothly and lasts longer.

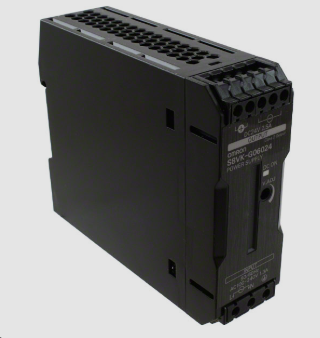

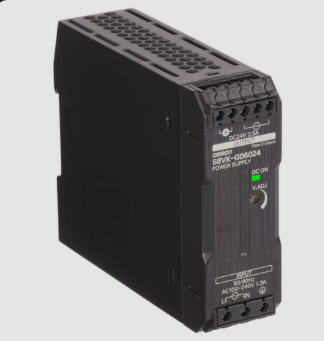

OMRON S8VK-G06024 60W 24V Switch Mode Power Supply with OMRON
You need a power source that never quits. This OMRON unit is a 60 W, 24 VDC switch-mode supply built for factories, automation panels, and heavy-duty devices. It accepts 100-240 VAC, so it works worldwide, and it stays within tight voltage limits even when the load changes. The design includes overload and short-circuit protection, which keeps your system safe. Without this power supply, you risk frequent trips, overheating, and costly downtime.
Usages
The supply fits on a DIN rail and can power PLCs, motor drives, sensor arrays, and safety circuits. It is ideal for assembly lines that need constant 24 V for conveyors, for HVAC controllers that run all day, and for test rigs that require precise voltage during measurement. Its compact size also makes it a good choice for portable control cabinets and retrofit projects where space is limited. You can also use it in vending machines, lighting control, and small robotics.
Benefits
- Stable 24 V output keeps your machines running without unexpected resets.
- High efficiency (88 %) reduces energy cost and heat buildup.
- Wide input range (85-264 VAC) lets you use the supply in many regions.
- Built-in protection limits inrush current, protecting wiring and components.
- IP20 housing and rugged design survive harsh industrial environments.
Key Features
- Rated power 60 W delivering up to 2.5 A continuous current.
- Adjustable voltage from 21.6 V to 27.6 V for fine tuning.
- Ripple and noise limited to 210 mVp-p for clean signal.
- Peak current boost to 3 A for short load spikes.
- Input voltage 100-240 VAC with 85-264 VAC allowable range.
- Frequency operation 50/60 Hz (47-450 Hz) for flexible power grids.
- DIN-rail mounting (35 mm) for easy installation.
- Screw terminals for secure wiring connections.
- Operating temperature -40 C to 70 C for extreme conditions.
- Certified to UL 508, EN 50178, EN 60950-1 and other safety standards.
Specifications
| Power rating |
60 W |
| Output voltage |
24 VDC |
| Efficiency |
87 % typ. (at 100 VAC input)
88 % typ. (at 200 VAC input) |
| Input |
Rated input voltage |
100 to 240 VAC |
| Allowable input voltage variable range |
85 to 264 VAC (Single-phase)
90 to 350 VDC |
| Frequency |
50/60Hz (47 to 450 Hz) |
| Rated input current |
1.2 A typ. (at 100 VAC input)
0.75 A typ. (at 200 VAC input) |
| Leakage current |
0.5 mA max. (at 100 VAC input)
1.0 mA max. (at 200 VAC input) |
| Inrush current (cold start at 25 ℃) |
16 A typ. (at 100 VAC input)
32 A typ. (at 200 VAC input) |
| Output |
Rated output current |
2.5 A |
| Output voltage variable range |
-10 to +15 % With V.ADJ |
| Maximum peak current |
3 A |
| Ripple |
210 mV(p-p) max. at 20 MHz |
| Static input variation influence |
0.4 % max. |
| Static load variation influence |
0.8 % max. |
| Ambient temperature variation influence |
0.05 %/℃ max. |
| Start up time |
700 ms typ. (at 100 VAC input)
500 ms typ. (at 200 VAC input) |
| Hold time |
20 ms typ. (at 100 VAC input)
90 ms typ. (at 200 VAC input) |
| Additional functions |
Overload protection |
Yes, automatic reset |
| Overvoltage protection |
Yes, Shut off the input voltage and turn on the input again |
| Series operation |
Yes (Up to 2 Power Supplies with external diode) |
| Parallel operation |
Yes (Up to 2 Power Supplies) |
| Output indicator |
Yes (color: green, lighting from 80 to 90% or more of rated voltage) |
| Insulation |
Dielectric strength |
Between all input terminals and all output terminals: 3 kVAC for 1 min, Cut-off current: 20 mA
Between all input terminals and PE terminals: 2 kVAC for 1 min, Cut-off current: 20 mA
Between all output terminals and PE terminals: 1 kVAC for 1 min, Cut-off current: 20 mA |
| Insulation resistance |
Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC |
| Environment |
Vibration resistance |
10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance |
150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) |
-40 to 70 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) |
-40 to 85 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) |
95 %RH max. |
| Ambient humidity (Storage) |
95 %RH max. |
| Reliability |
MTBF |
135,000 hours min. |
| Life expectancy |
10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting) |
| Construction |
Construction |
Covered type |
| Connection |
Terminal blocks |
| Terminal type |
Rod terminal |
| Mounting |
DIN track mounting |
| Cooling fan |
Cooling fan No |
| Degree of protection |
IP20, EN/IEC 60529 |
| Weight (Main) |
260 g max. |
