VGC10's advantages and features
Based on the award-winning VG10 electric vacuum gripper, the VGC10 is smaller and lighter than its predecessor, without compromising on the payload. It is a highly customizable end-of-arm tooling that allows manufacturers to focus on their application rather than the complexities of the robot. This compact gripper is perfectly suited for constrained environments and smaller robot arms while still offering an impressive payload. Despite the compact size, this end-of-arm tooling can lift up to 15kg (35 lb.)
- Payload 15 kg (35 lb):Can lift objects up to 15 kg
- Compact, lightweight, and powerful:Grip and move a wide array of small, multi-dimensional, and heavy objects even with a lighter payload robot arm

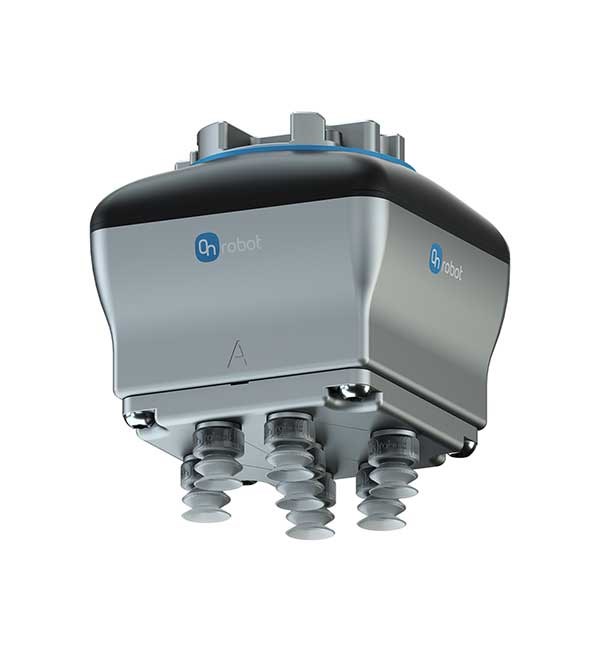

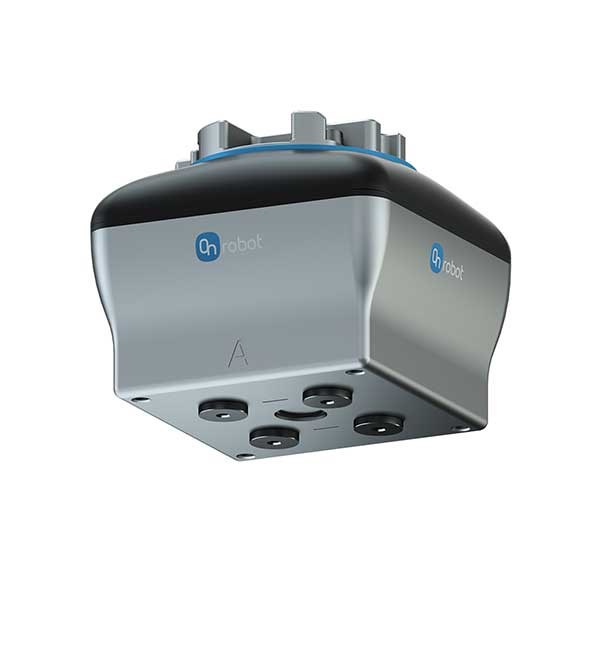

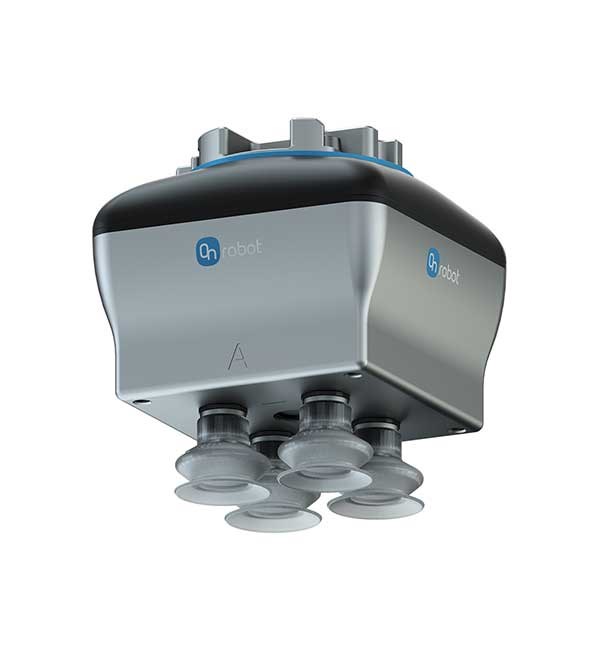

- Configurable suction cups: Suction cups can be easily changed, fitting to your application needs.
- Unlimited Customization: Easily changeable suction cup options and the ability to add or replace arms to fit highly specific application needs
- Independent air channels for dual gripping:Control the right and left sides of the vacuum gripper independently of one another, further increasing efficiency on your production line.
- Integrated software: The gripper comes with pre-integrated software that is easy to install and program, so even employees with no technical background can set it up.
- Built-in electric vacuum: No external air supply needed, saving maintenance cost
Overview

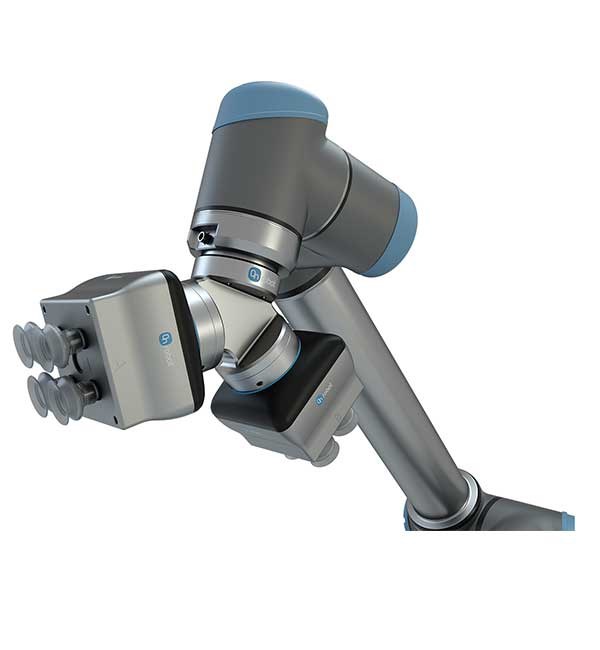

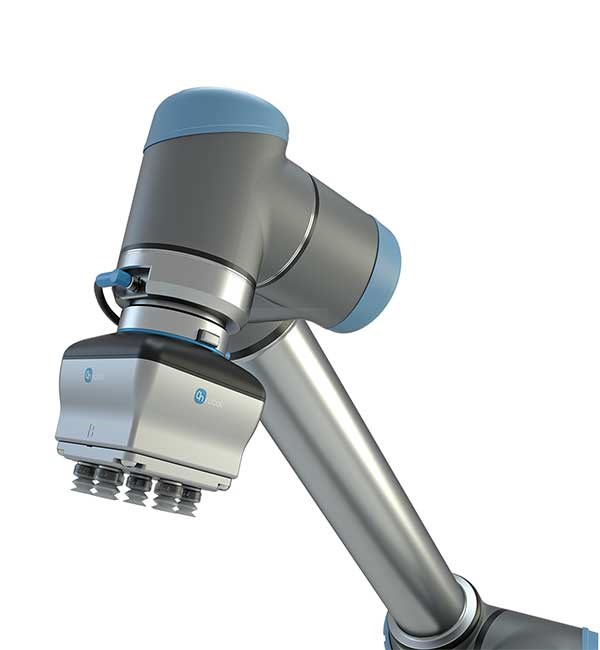

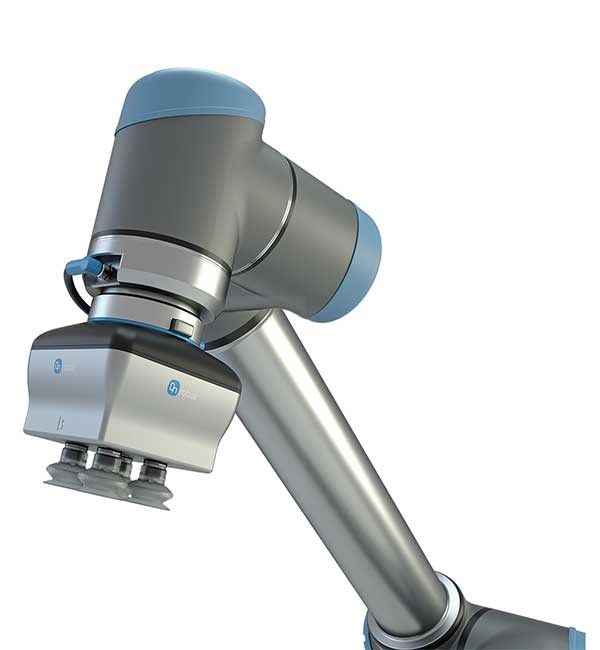

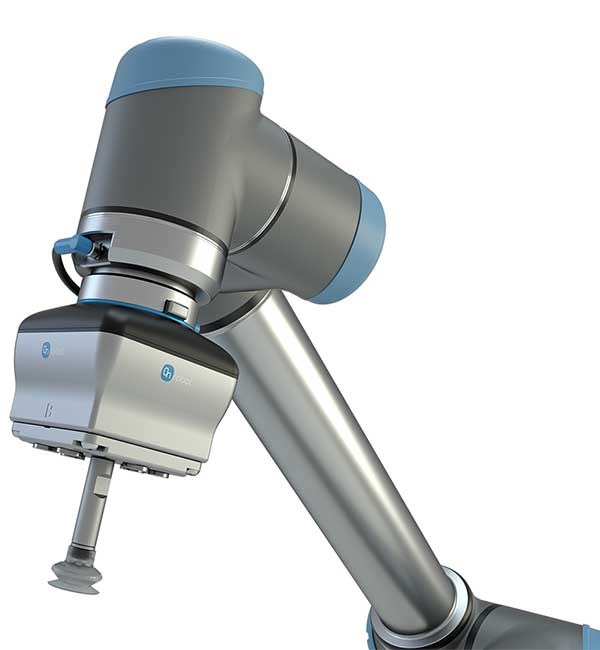

COMPACT, CONFIGURABLE ELECTRICAL VACUUM GRIPPER• Flexible electric vacuum gripper with unlimited customization fits all your application needs• Small, lightweight gripper is perfect for tight spaces but with plenty of power for objects up to 15 kg • No external air supply needed for reduced maintenance costs and faster deployment The VGC10 electrical compact vacuum gripper has unlimited customization possibilities. It has changeable suction cup options too for nearly any application need. Smaller than the VGC10, the VGC10 can fit into tight environments to extend your automation possibilities. And at half the weight of the VGC10 but with the same payload, the VGC10 can lift small, odd-shaped, and heavy objects even with a smaller robot arm. The VGC10 features two independently controlled air channels that allow it to act as a dual gripper with pick-up and release in the same action, further increasing efficiency and reducing cycle time. With no compressor or air supply needed, this compact electrical gripper is easy to move, and simple programming makes it quick and easy to redeploy for greater production flexibility.Seamless integration with the robot of your choice.

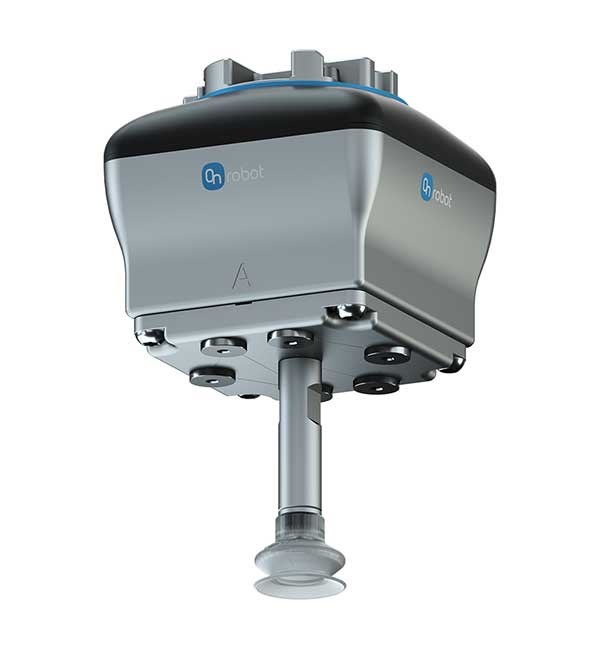

VGC10 can lift small, odd-shaped, and heavy objects even with a smaller robot arm. The VGC10 features two independently controlled air channels that allow it to act as a dual gripper with pick-up and release in the same action, further increasing efficiency and reducing cycle time. With no compressor or air supply needed. The VGC10 has a built-in vacuum pump. The suction cups are replaceable and standard so you can use other cups as well.
Why VGC10 ELECTRICAL VACUUM GRIPPER?
High Flexibility
Can be configured into any shape to match various parts
Easy deployment
Ideal for tight spaces Compact, can work in tight spaces
Lower operating costs
No external compressed air required
Specifications:
| General Properties |
|
| Vacuum |
Minimum 5 % / Maximum 80 % [Vacuum] |
| Air flow |
Min. 0 - Max. 12 [L/min] |
| Payload |
Maximum 6kg |
| With default attachments |
Maximum 6kg |
| With customized attachments |
Typical 10kg - Maximum 15kg |
| Vacuum cups |
Min. 1 - Max. 7 [pcs.] |
| Gripping time |
Typical 0.35 [s] |
| Releasing time |
Typical 0.20 [s] |
| Vacuum pump |
Integrated, electric BLDC |
| Dust filters |
Integrated 50µm, field replaceable |
| IP Classification |
IP54 |
| Dimensions |
101 x 100 x 100 mm |
| Weight |
0.814 kg |
| Operating Conditions |
|
| Power supply |
Minimum 20.4, Typical 24, Maximum 28.8 [V] |
| Current consumption |
Minimum 50, Typical 600, Maximum 1500 [mA] |
| Operating temperature (gripper and vacuum cups) |
Minimum 0, Maximum 50 [°C] |
| Relative humidity (non-condensing) |
0 - 95 [%] |
