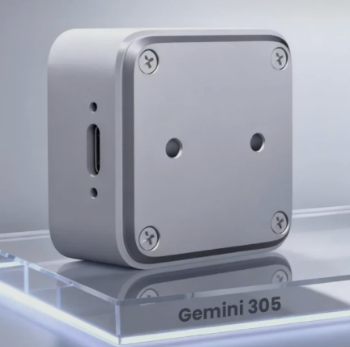

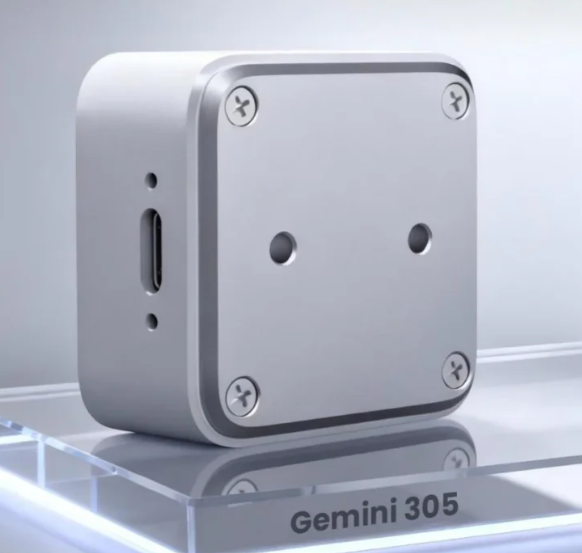

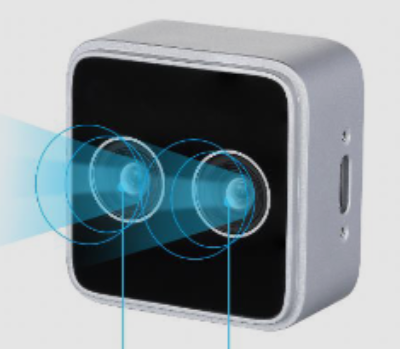

ORBBEC Gemini 305 3D Stereo Vision Camera 1280x800 Depth USB C IP54

Imagine a robot that can see the world as clearly as you do, even in dim light or dusty rooms. The ORBBEC Gemini 305 3D Stereo Vision Camera gives you that power. It captures depth and color at high resolution, letting you build navigation, inspection or AR projects without blurry gaps. If you have struggled with unreliable sensors that miss objects or fail outdoors, this camera solves that problem with sturdy design and fast USB-C data transfer.

ORBBEC Gemini 305 3D Stereo Vision Camera 1280x800 Depth USB C IP54

Many makers need a sensor that works both inside a lab and outside on a construction site. Missing depth data can cause robots to crash or drones to lose position. The Gemini 305 camera fills that gap by delivering precise stereo depth from 4 cm to over 1 m, even when dust or splashes hit the lens. Its IP54 rating, USB-C connection and low power draw make it a reliable backbone for any vision-based system.

Benefits

• Accurate depth from 7 cm to 50 cm lets robots avoid obstacles safely.
• High-resolution color (1280 800 @ 60 fps) creates realistic visual feedback.
• USB-C interface provides fast data transfer and easy plug-and-play setup.
• IP54 protection keeps the sensor working in dusty or wet environments.
• Compact size (42 42 23 mm) fits into tight robot housings.

Usages

The Gemini 305 is perfect for autonomous drones that need to map indoor warehouses and outdoor fields without missing a step. It works well in robotic arms that sort items on a conveyor, giving precise 3-D coordinates for each piece. Augmented-reality headsets can use the camera to blend virtual objects with real space, while security systems benefit from its depth sensing to detect intruders behind obstacles. Any project that requires reliable depth and color data will gain speed and accuracy with this sensor.

Key Features

• Stereo vision depth technology for accurate 3-D mapping.
• Baseline of 18 mm gives stable depth calculation.
• Depth resolution up to 1280 800 at 30 fps.
• Color resolution up to 1280 800 at 60 fps.
• Depth field of view 88 65 (3) for wide coverage.
• Color field of view 94 68 (3) for full scene capture.
• Global shutter sensor reduces motion blur.
• USB 3.0 (recommended) and USB 2.0 compatibility.
• Power supply 5 V / 700 mA, average consumption <2 W.
• Operating temperature from -10 C to 45 C.
• Multi-camera sync support for larger vision systems.
• External trigger options for hardware-software integration.

Specifications
