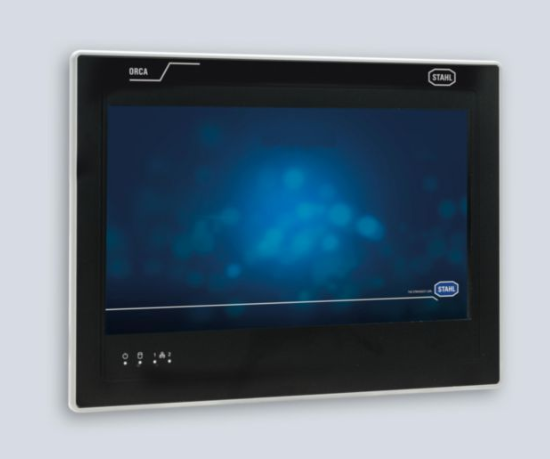

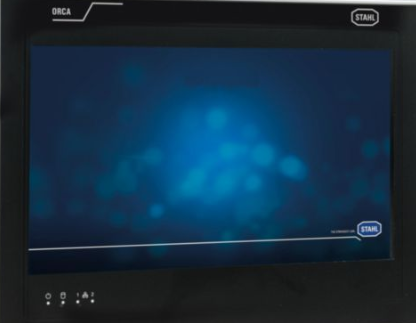

R. STAH ORCA PM E54A 15 Inch Panel PC Thin Client IP66 Hazardous Area

Imagine a control panel that never worries about dust, water or explosive gases. The ORCA PM E54A 15 Inch Panel PC Thin Client IP66 Hazardous Area is built for that exact need. It is a rugged, panel-mount computer that you can mount on a wall or machine and use to run HMI, SCADA or remote monitoring software. If you work in a plant where dust, moisture or hazardous gases are a daily risk, you need a device that can survive those conditions without costly downtime.

R. STAH ORCA PM E54A 15 Inch Panel PC Thin Client IP66 Hazardous Area

The main problem in harsh industrial zones is equipment failure caused by water ingress or explosive atmospheres. When a screen stops working, the whole production line can halt, leading to lost money and safety concerns. This panel PC solves the problem by offering IP66 protection and ATEX-approved explosion safety, so it can stay on the wall and keep running even in the toughest spots. The result is a reliable interface that protects your process and your budget.

Benefits

• Strong dust and water protection means no unexpected shutdowns.
• Explosion-safe design lets you install it in hazardous zones safely.
• Full HD touch screen works with gloves, stylus or fingers for easy control.
• Power options of 24 VDC or 230 VAC fit any existing wiring.
• Long-life backlight reduces maintenance and replacement costs.

Usages

Use this panel PC in oil refineries to monitor pump status, in food factories to control cleaning cycles, or in mining operations to display safety alerts. It fits well on control cabinets, production lines, or outdoor enclosures where dust and moisture are common. The device also works as a thin client for remote desktop connections, letting you run central software from a secure, local screen.

Key Features

• 15 inch TFT display with 1920 1080 resolution.
• Projected-capacitive multi-touch, works with gloves and stylus.
• Intel ATOM E3940 quad-core or optional Intel Core i5 8365UE processor.
• 4-8 GB RAM and up to 128 GB SSD for fast operation.
• Windows 10/11 IoT Enterprise LTSC, IGEL OS or PXE boot options.
• 10/100/1000 Mbps Ethernet, optional fiber optic for Pro model.
• Explosion-proof ratings for Zones 1, 2, 21, 22 and Class I/II/III.
• IP66 ingress protection against water and dust.
• Ex-rated USB ports (2 Ex ia, 1 Ex ib, 1 Ex e) for safe peripheral connection.
• RS-232/422/485 serial interface for legacy equipment.
• Robust aluminium housing with glass front for durability.
• Weight 15 kg (standard) or 19 kg (Pro) for stable mounting.
