Product Code: CCEL-053
MPN #: AW-UE80WEJ

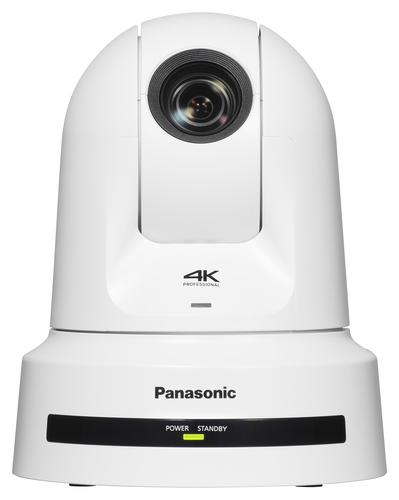

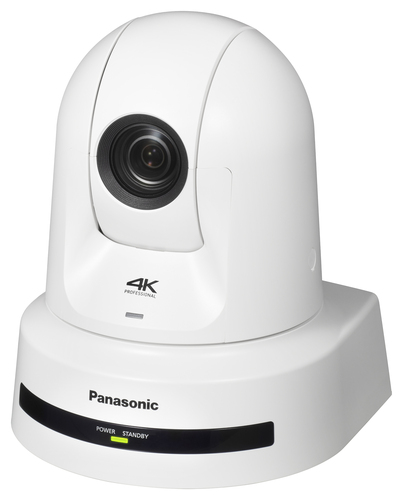

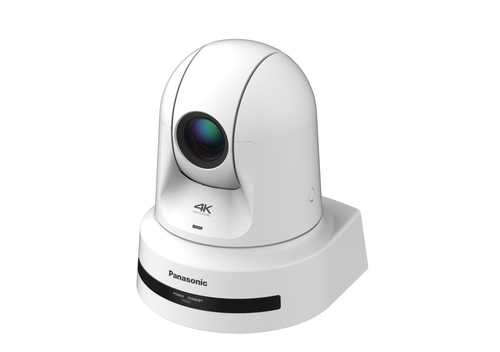

Many businesses need a reliable way to watch a room without hiring a camera operator. When the view is blurry or the camera makes noise, meetings feel unprofessional and important details are missed. The Panasonic AW-UE80 IP Security Camera Indoor Wired Ceiling Wall Dome White ProCam solves this by delivering clear 4K video, quiet PTZ movement and automatic person tracking, so you can capture every moment without extra effort.
Imagine a meeting where every speaker is captured in crisp 4K, the camera follows the presenter automatically, and no one hears a motor whirring in the background. The Panasonic AW-UE80 IP Security Camera Indoor Wired Ceiling Wall Dome White ProCam makes that possible. It mounts on a ceiling or wall, blends into the room with its white dome, and connects with a single PoE++ cable. The built-in AI tracks a single person, keeping them centered even as they move. With HDMI, 3G-SDI and IP outputs you can stream to Zoom, Teams or a live-broadcast platform in real time. The camera is ready out of the box, so you spend less time wiring and more time presenting.
Use the camera in a corporate boardroom to record quarterly reviews, in a university lecture hall for hybrid classes, or in a training facility for safety drills. It works well in small studios, conference centers, and even in a theater where quiet operation is critical. Because the dome is low-profile, it does not distract performers or speakers. The same unit can be installed on a ceiling for wide-area coverage or on a wall for a focused view of a podium.
| Performance | |
| Day/night mode | Yes |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Dome |
| Camera | |
| Camera shutter speed | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 s |
| Camera shutter type | Electronic |
| White balance | ATW, Area white balance |
| Pan preset speed | 300 °/sec |
| Pan speed | 0.08 °/sec |
| Pan range | -175 - 175° |
| Tilt speed | 60 °/sec |
| Tilt angle range | -30 - 90° |
| Lens viewing angle, diagonal | 81.8° |
| Lens viewing angle, vertical | 39.5° |
| Lens viewing angle, horizontal | 65.1° |
| Horizontal field of view (optical module) | 74.1° |
| Vertical field of view (optical module) | 46° |
| Horizontal field of view (thermal module) | 3.3° |
| Vertical field of view (thermal module) | 1.9° |
| Minimum illumination | 3 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Number of sensors | 1 |
| Sensor type | MOS |
| Lens system | |
| Closest focusing distance | 0.1 m |
| Maximum aperture number | 4 |
| Minimum aperture number | 1.8 |
| Focus | Motorized/Manual |
| Focal length range | 4.12 - 98.9 mm |
| Digital zoom | 1.4x |
| Optical zoom | 24x |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Video | |
| Image stabilizer | Yes |
| Gain control type | Auto |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported video modes | 720p, 1080i, 1080p, 2160p |
| Supported graphics resolutions | 320 x 180, 640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Video compression formats | H.264, M-JPEG, MP4, MPEG4 |
| Maximum resolution | 1920 x 1080 pixels |
| Audio | |
| Audio formats supported | AAC-LC |
| Audio output channels | 2 channels |
| Network | |
| Streaming method | Multicast, Unicast |
| Supported network protocols | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP/RTP, MPEG2-TS, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT |
| Networking standards | IEEE 802.3bt |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Built-in HDD | No |

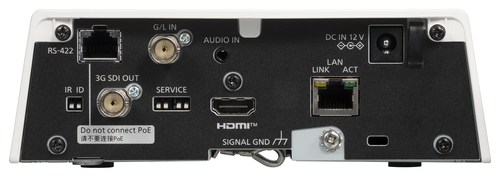

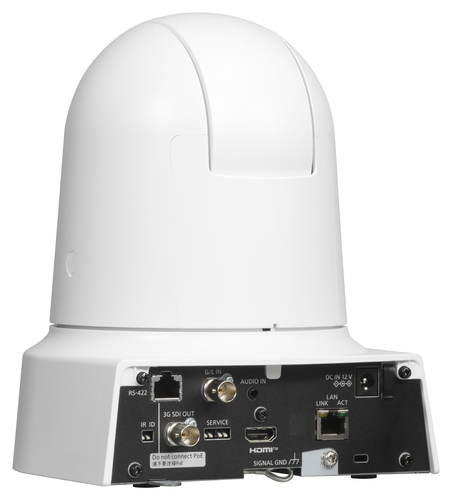

| Ports & interfaces | |
| HDMI ports quantity | 1 |
| USB port | Yes |
| Microphone in | Yes |
| BNC output ports | 1 |
| RS-422 ports | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Management features | |
| Web-based management | Yes |
| Power | |
| DC output current | 1.3 A |
| DC output voltage | 12 |
| Power source type | DC, PoE |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Cable length | 1.5 m |
| Weight | 2 kg |
| Height | 211 mm |
| Depth | 171 mm |
| Width | 170 mm |
| Packaging data | |
| Package weight | 2.25 kg |
| Supplier features | |
| Manufacturer | Panasonic |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
| Other features | |
| Maximum resolution | 1920 x 1080 pixels |
