Welding work often suffers from uneven heat, weak joints, and frequent machine stops. Those problems slow production, raise costs, and can make a project unsafe. You need a machine that keeps the arc steady, lets you set exact parameters, and runs without overheating. The Panasonic YD-700VH1 Full Digital Welding Machine gives you that control, so every weld looks strong and clean.

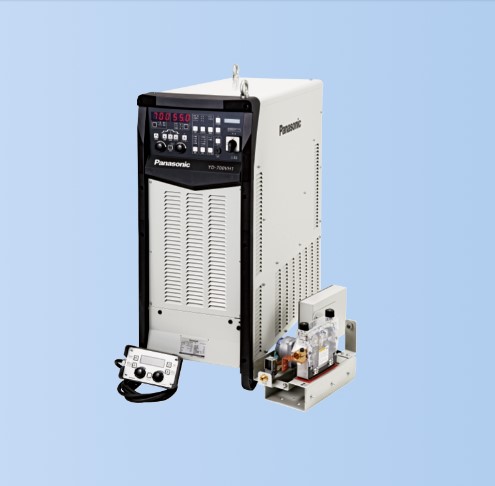

Panasonic YD-700VH1 Full Digital Welding Machine with Panasonic
Imagine finishing a job with perfect beads and no re-work. This is a high-performance inverter welding power source made for heavy-duty tasks. It delivers up to 700 A of current and lets you store 100 welding programs for quick recall. If you have struggled with inconsistent welds or machines that overheat, this Panasonic unit solves those issues with digital precision and a 100 % duty cycle.
Usages
The machine fits in a shipyard for thick hull plates, in an automotive shop for frame repair, and in a construction site for steel beams. It works well on pipe welding, structural steel, and general fabrication. Whether you use CO, Pulse MAG or Pulse MIG, the unit adapts to the process you need, making it a versatile tool for any professional welder.
Benefits
- Exact current and voltage control gives consistent, strong joints.
- 100 % duty cycle lets you work continuously without cooling breaks.
- 100-channel memory saves your favorite settings for fast setup.
- Supports CO, Pulse MAG and Pulse MIG for many welding jobs.
- Energy-efficient inverter reduces power use and operating cost.
Key Features
- Maximum output current: 700 A.
- Rated output voltage: 55 V.
- Adjustable current range: 60-700 A DC.
- Adjustable voltage range: 14-55 V DC.
- IGBT inverter control for stable arc.
- 100-channel storage and recall.
- Supports CO, Pulse MAG, Pulse MIG processes.
- Three-phase input 200-220 V AC (180-242 V range).
- Compact size 380 820 988 mm, weight 117 kg.
- Sequence functions: main weld, crater, arc spot, etc.
- Compatible wire diameter: 1.2-1.6 mm, mild-steel solid or FCW.
- Copper plate output terminal for reliable connections.
Specifications
| Model Number |
YD-700VH1 |
| Product Type |
Inverter Welding Power Source |
| Rated Input Voltage |
200–220 V AC (allowable range: 180–242 V) |
| Number of Phases / Frequency |
3-phase, 50/60 Hz |
| Rated Input Power |
47.1 kVA / 44 kW |
| Maximum Open Circuit Voltage |
108 V DC |
| Rated Output Current |
700 A |
| Rated Output Voltage |
55 V |
| Rated Duty Cycle (10 min) |
100% |
| Output Current Adjustment Range |
60–700 A DC |
| Output Voltage Adjustment Range |
14–55 V DC |
| Control Method |
IGBT inverter type |
| Memory Functions |
100-channel storage & recall |
| Applicable Welding Processes |
CO₂ / Pulse MAG / Pulse MIG |
| Sequence Functions |
Main welding, Main–Crater, Initial–Main–Crater, Arc spot |
| Applicable Wire Diameter |
1.2 / 1.4 / 1.6 mm |
| Applicable Wire Materials |
Mild steel solid, Mild steel FCW |
| Input Power Terminal |
Terminal block (3-phase, M6 bolt fixing) |
| Output Terminal |
Copper plate terminal (M8 bolt) |
| Dimensions (W × D × H) |
380 × 820 × 988 mm |
| Weight |
117 kg |
