Imagine a weld that looks perfect the first time you strike the arc. The Panasonic YE-200BL3 Full Digital AC/DC TIG Welding Machine gives you that confidence. It is a compact, digital TIG welder that works with both AC and DC power. Many hobbyists and small shops struggle with unstable arcs and limited control, which leads to wasted material and time. This machine solves those issues with precise digital control and a sturdy design.

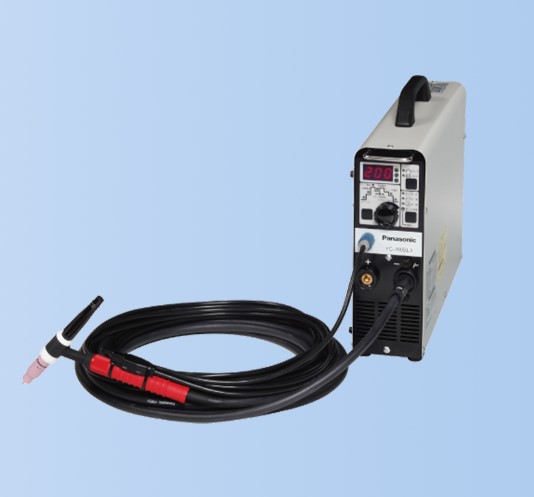

Panasonic YE-200BL3 Full Digital AC/DC TIG Welding Machine
The main problem this welder solves is inconsistent weld quality caused by old analog units. Inconsistent welds can weaken a project and force you to redo work. When the weld is weak, the whole product can fail, costing you money and reputation. The Panasonic model offers full digital control, stable arc start, and a 20 % duty cycle at 200 A, giving you reliable power and repeatable results. It lets you focus on the shape of the joint, not on fighting the machine.
Usages of Panasonic
You can use this welder for automotive body repair, where thin aluminum panels need a clean finish. It works well in small fabrication shops that build metal frames or custom furniture. Hobbyists who enjoy building drones or art pieces can rely on its precise AC mode for aluminum and DC mode for steel. The machine also fits well in educational labs that teach welding fundamentals.
Benefits
- Digital display lets you set exact current and time values, reducing trial and error.
- High-frequency start gives a smooth arc without spatter, saving material.
- Forced air cooling keeps the unit light (9 kg) and ready for long jobs.
- 9-channel memory stores your favorite settings, so you can switch projects quickly.
- Wide voltage range (170-253 V) lets you plug into most workshop outlets.
Key Features
- AC/DC TIG welding up to 200 A.
- DC manual welding up to 150 A.
- Adjustable current range 5-200 A (TIG) and 5-150 A (manual).
- Pulse frequency control from 0.5 to 500 Hz.
- Pre-flow and post-flow time settings up to 25 s.
- Crater control on/off for clean start and stop.
- IGBT inverter type ensures stable power delivery.
- High-frequency start method for easy arc ignition.
- Forced air cooling eliminates the need for water.
- Compatible with 100 % argon shielding gas.
- Compact dimensions 95 420 295 mm for easy transport.
- Includes YT-15TS2TAD torch and 8 m torch cable.
Specifications
| Model number |
YE-200BL3 |
| Welding power source |
YC-200BL3 |
| Rated input voltage |
Single-phase, 200 V ± 15%, 50 / 60 Hz |
| Allowable fluctuation range |
170 to 253V |
| Rated input |
7.3 kVA, 4.8 kW |
| Maximum open circuit voltage |
65 DC |
| Rated output current |
|
| DC TIG |
200 DC |
| DC manual welding |
150 DC |
| Rated output voltage |
|
| DC TIG |
18 DC |
| manual welding |
26 DC |
| Rated duty cycle (10-minute cycle) |
20 |
| Output current adjustment range |
|
| DC TIG |
5 to 200 |
| DC manual welding |
5 to 150 |
| Up-slope time |
0.0 to 10.0 (in 0.1 s increments) |
| Down-slope time |
0.0 to 10.0 (in 0.1 s increments) |
| Pre-flow time |
0.0 to 25.0 (in 0.1 s increments) |
| Post-flow time |
0.0 to 25.0 (in 0.1 s increments) |
| Arc spot time |
0.1 to 5.0 (in 0.1 s increments) |
| Pulse frequency |
0.5 to 500 |
| Pulse width |
50 (fixed) |
| Applicable welding process |
DC TIG, DC manual welding |
| Control method |
IGBT inverter type |
| Sequence functions |
Crater control: On, Off |
| TIG welding starting method |
High-frequency start method |
| Cooling method |
Forced air cooling |
| Applicable shielding gas |
Ar: 100%* |
| Memory functions |
9-channel storage and reproduction |
| External dimensions (width x depth x height) |
95 x 420 x 295 (projections not included) |
| Main unit mass (power cord not included) |
9 |
| TIG torch |
YT-15TS2TAD |
| Output current / duty cycle |
150 A / 35% (200 A / 20%) |
| Torch cable |
8 |
| Argon gas regulator |
YX-16AG1 |
