Product Code: CCEL-187
MPN #: IMP231-1IRS

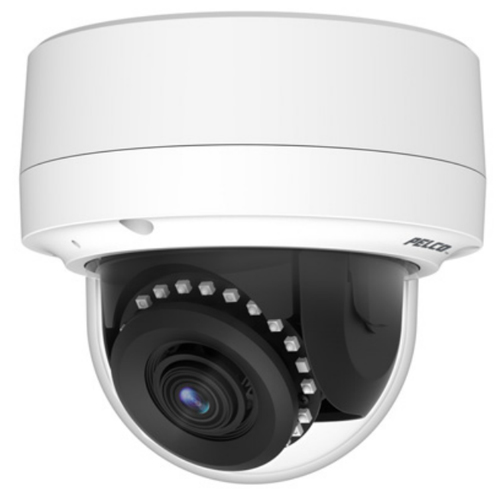

Imagine missing a critical event because your camera cant see in low light or capture clear details. The Pelco IMP231-1IRS Indoor Wired IP Camera is built for exactly that need. It is a ceiling or wall-mount dome camera that records sharp 1080p video, works in darkness, and speaks eleven languages. If you worry about blind spots, vandal damage, or confusing video feeds, this camera solves those problems so you can protect your space with confidence.
Many indoor cameras struggle with glare, night vision gaps, and weak security standards. Those issues leave businesses and homes exposed to theft, accidents, or compliance penalties. This Pelco model eliminates the gaps by offering true Wide Dynamic Range, adaptive IR illumination, and IK10 vandal resistance. It meets CE, FCC and other global certifications, so you stay safe and legally compliant while getting clear video day and night.
You can mount this camera on a ceiling in a retail store to watch aisles and cash registers. It works well on a wall in an office lobby to monitor entry points and visitor flow. Schools use it in hallways to capture clear footage even when lights are dim. Small warehouses benefit from its long-range zoom and night vision to keep inventory safe. Any indoor area that needs reliable, high-definition surveillance fits perfectly.
| Performance | |
| Certification | CE, FCC, UL/cUL, ICES-003, RCM, KCC, NOM, EAC, IEC 60068:2-6/2-27 |
| Languages support | Arabic, Simplified Chinese, German, English, Spanish, French, Italian, Korean, Portuguese, Russian, Turkish |
| Number of languages | 11 |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
| IK code | IK10 |
| International Protection (IP) code | IP64 |
| Protection features | Impact resistant |
| Housing material | Aluminium, Polycarbonate (PC) |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Form factor | Dome |
| Camera | |
| Camera shutter speed | 1/10000 - 1 s |
| Camera shutter type | Electronic |
| White balance | ATW, Auto, Manual |
| Pan range | 0 - 370° |
| Tilt angle range | -15 - 90° |
| Lens viewing angle, diagonal | 123° |
| Lens viewing angle, vertical | 54° |
| Lens viewing angle, horizontal | 103° |
| Angle of rotation | 355° |
| Minimum illumination | 0.0025 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
| Maximum aperture number | 1.4 |
| Auto focus | Yes |
| Focus | Motorized |
| Focal length range | 2.8-12 mm |
| Zoom capability | Yes |
| Night vision | |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 50 m |
| Night vision | Yes |
| Video | |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Noise reduction technology | 3D noise reduction |
| Noise reduction | Yes |
| Frame rate | 30 fps |
| Video compression formats | H.264, H.265, M-JPEG |
| Total megapixels | 2 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Audio | |
| Audio detection | Yes |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Audio formats supported | G.711 A-law, G.711 μ-law |
| Audio system | 2-way |
| Network | |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
| Number of users | 5 user(s) |
| Supported network protocols | TCP/IP, UDP/IP (unicast, multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, 802.1x (EAP), and NTCIP 1205, ARP, DDNS, ICMP, IGMP, RTCP, SFTP, SIP, TLS/ TTLS, WS-discovery |
| Networking standards | IEEE 802.3af |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Storage | |
| Maximum memory card size | 2 TB |
| Compatible memory cards | MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Intelligent Video Surveillance (IVS) system features | Missing object |
| Video motion detection | Yes |
| Password protection | Yes |
| Power | |
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| Power consumption (max) | 8.4 W |
| Power consumption (typical) | 7.9 W |
| Power source type | AC, DC, PoE |
| Operational conditions | |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -10 - 55 °C |
| Weight & dimensions | |
| Weight | 860 g |
| Height | 124.1 mm |
| Depth | 135 mm |
| Width | 135 mm |
| Packaging data | |
| Package weight | 1.2 kg |
| Supplier features | |
| Manufacturer | Pelco |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Maximum resolution | 1920 x 1080 pixels |
