Many factories need a computer that can work in harsh places. Heat, cold, dust and vibration can make ordinary PCs fail fast. When a machine stops, production slows and money is lost. The Polyhex BPC-iMX8MP-03 Industrial PC is built to stay reliable in those tough conditions, so your line keeps running without surprise downtime.

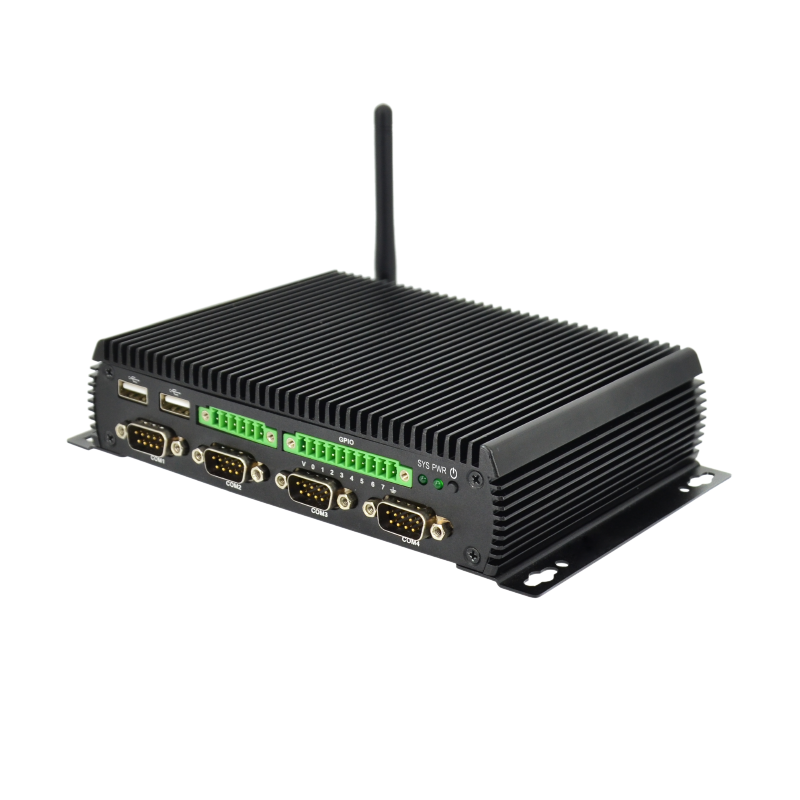

Polyhex BPC-iMX8MP-03 Industrial PC with Polyhex
This is a rugged box computer made for industrial use. It combines a powerful DEBIX SOM A core board with a strong steel and aluminum case. If you need a machine that can survive -20C to 70C and keep working for more than 50,000 hours, this unit gives you that peace of mind. Polyhex makes sure the connections are safe and isolated, so you can trust the data you collect.
Usages
The BPC-iMX8MP-03 fits in a factory control panel to run PLC software. It can be mounted on a conveyor to monitor sensors and drive motors. In a warehouse it serves as a gateway for barcode scanners and RFID readers. It also works well in outdoor kiosks, traffic monitoring stations, and renewable energy sites where temperature swings are common.
Benefits
- Long life reduces replacement cost and maintenance time.
- Isolated ports protect workers and equipment from electrical spikes.
- Dual Gigabit Ethernet and Wi-Fi keep data flowing fast and reliably.
- Wide temperature range lets you place the PC anywhere in the plant.
- Supports many operating systems so you can use the software you already know.
Key Features
- Steel and aluminum enclosure with over 50,000 hours MTBF.
- DEBIX SOM A core board paired with DEBIX SOM A I/O carrier board.
- Boot options from eMMC, micro SD or SPI Nor Flash.
- Runs Windows 10 IoT, Ubuntu 20.04, Yocto or Android 11.
- Dual independent Gigabit RJ45 ports with optional POE.
- 2.4 GHz and 5 GHz Wi-Fi plus Bluetooth 5.0 with external antenna.
- 4 USB 3.0 and 2 USB 2.0 ports for fast peripheral connection.
- Isolated serial interfaces: 4 RS232, 2 RS232/RS485/CAN.
- Isolated digital inputs and outputs for safe sensor wiring.
- Mini PCIe slot for 4G, LoRa or extra network cards.
- Power input 12 V to 36 V, suitable for many industrial supplies.
- Compact size 169 mm 39 mm 124 mm, weight under 1 kg.
Specifications
| System |
|
| Motherboard |
DEBIX SOM A (Core Board) + DEBIX SOM A I/O Board (Carrier Board) |
| Boot |
(1) Support boot from eMMC on DEBIX SOM A (2) Support boot from Micro SD on carrier board (3) Support boot from SPI Nor Flash on carrier board |
| OS |
Windows 10 IoT Enterprise, Ubuntu 20.04, Yocto-L5.10.72_2.2.0, Android 11 |
| Memory |
Onboard 2GB LPDDR4 (1GB/4GB/6GB/8GB optional) |
| Storage |
16GB eMMC (8GB/16GB/32GB/64GB/128GB/256GB optional) |
| Communication |
|
| Ethernet |
2 x Independent MAC Gigabit RJ45 port with POE power supply (need POE power device module) |
| Wi-Fi & Bluetooth |
2.4GHz & 5GHz Wi-Fi and Bluetooth 5.0, external SMA antenna for Wi-Fi (4G or LoRa antenna is optional) |
| Video & Audio |
|
| Display |
1 x HDMI output, Type-A female socket |
| Audio |
1 x Headphone and mic combo port, 3.5mm socket |
| External I/O |
|
| DC IN |
1 x Power socket for 5.5mm x 2.1mm plug |
| USB 3.0 |
4 x USB 3.0 Host, double-layer Type-A interface |
| USB 2.0 |
2 x USB 2.0 Host Type-A interface |
| Serial Ports |
(1) 4 x Isolated RS232, compatible with UART TTL 3.3V without isolation (2) 2 x Isolated RS232/RS485/CAN (RS485 for default)，compatible with UART TTL 3.3V without isolation |
| GPIO |
(1) 4 x Isolated DI, support dry contact and wet contact (2) 4 x Isolated DO, support wet contact, compatible with dry contact of external relay |
| LED & KEY |
(1) 1 x System LED (2) 1 x Power LED (3) 1 x ON/OFF |
| Internal I/O |
|
| SIM Slot |
1 x Built-in Micro SIM slot, push pop-up slot |
| SD Slot |
1 x Built-in Micro SD slot, push pop-up slot |
| Mini PCIe |
(1) Support 4G module such as Quectel 4G module, built-in SIM card, etc. (2) Support LoRa module (3) Support other expansion such as network card, SATA and serial port |
| Power Supply |
|
| Power Input |
DC 12V power input for default, supports DC 12V~36V |
| Mechanical & Environmental |
|
| Enclosure Material |
Steel and aluminum alloy |
| Dimension |
169.42(W)mm x 38.9(H)mm x 124(D)mm |
| Gross Weight |
812g |
| Operating Temperature |
-20℃ ~ +70℃ (industrial grade) |
| Relative Humidity |
10% ~ 90% |
| MTBF |
>50000 hours |
| Shock |
15G half-sine 11ms duration |
| Vibration |
1Grms random 5-500Hz hr/axis |
| Certificates |
CE / RoHS / FCC / UKCA / TELEC / RCM |
