Tired of computers that overheat or fail in tough environments? The Premio BCO-6000 Industrial Fanless PC with Intel 12th Gen CPU is built for those hard-working spaces. It runs your software without a fan, so dust and heat never slow you down. If you need reliable performance on the factory floor, in a kiosk, or at a remote site, this machine solves the problem.
Premio BCO-6000 Industrial Fanless PC with Intel 12th Gen CPU
Many industrial PC still rely on noisy fans that collect debris and cause downtime. When a fan stops, the whole system can shut down, costing you time and money. This matters because every minute of lost production adds expense. The Premio BCO-6000 removes the fan entirely, using a low-power 12th Gen Intel processor and a sealed aluminum case. The result is a quiet, dust-proof computer that stays on when the environment gets rough.
Benefits
- Zero fan noise lets workers focus without distraction.
- Fanless design prevents dust buildup and reduces maintenance.
- 12th Gen Intel CPU delivers fast data processing for edge tasks.
- Multiple LAN ports give reliable, high-speed network connections.
- Wide temperature range keeps the system running from 0 C to 50 C.
Usages
The Premio BCO-6000 fits anywhere you need a sturdy computer. It can be wall-mounted in a manufacturing line to control PLCs, placed in a retail kiosk to run digital signage, or installed in a transportation hub for ticketing and monitoring. Its rugged case also works well in outdoor cabinets for IoT gateways, and the optional 5G/4G module lets you add cellular backup where wired network is unreliable.
Key Features
- Intel Q670E Express chipset with 12th/13th Gen Core i9-i3, Pentium, Celeron options
- 2 DDR4 SODIMM slots, up to 64 GB memory, non-ECC supported
- Intel UHD graphics for basic display needs
- 3 independent display outputs: 2 DisplayPort 1.4a, 1 HDMI 1.4b
- 1 M.2 M-key (NVMe SSD) and 1 M.2 B-key for AI or cellular modules
- 6 USB 3.2 Gen2, 2 USB 3.2 Gen1, 2 USB 2.0 Type-A
- 4 DB9 COM ports and 8 in/8 out isolated DIO
- 3 RJ45 2.5 GbE LAN ports for fast networking
- Optional PCIe x8 or x16 slot for GPU expansion
- Power input 9-36 VDC with 4-pin terminal block, optional 220 W adapter
- UL 62368, CE, FCC Class A certified, meets industrial vibration and shock standards
Specifications
| Processor |
Intel® IOTG:
• 12th/13th Gen Intel® Core™ Processor i9/i7/i5/i3, Pentium, Celeron (35W only) |
| System Chipset |
Intel® Q670E Express Chipset |
| LAN Chipset |
Intel® I226LM PCIe 2.5GbE LAN
Intel® I226V PCIe 2.5GbE LAN
Intel® I226V PCIe 2.5GbE LAN |
| Audio Codec |
Realtek ALC897 |
| System Memory |
2x DDR4 3200MT/s SODIMM. Max. up to 64 GB (Default: 8GB & Non- ECC supported) |
| Graphics |
• Intel® UHD Graphics
• GPU Graphics |
| BIOS |
AMI UEFI BIOS |
| Watchdog |
Software Programmable Supports 1~255 sec. System Reset |
| AI Accelerator |
Supports 1x Hailo-8™ module through M.2 B-Key |
| TPM |
TPM 2.0 |
| Display Port |
2x Dual Mode DisplayPort 1.4a
Max Resolution 4096 x 2304 @60Hz |
| HDMI |
1x HDMI 1.4b
Max Resolution 4096 x 2304 @24Hz |
| Multiple Display |
3x Independent Displays |
| M.2 M-Key |
1x M.2 M-key Type (2242/2280):
• Support 1x PCIe x4 Gen 3 NVMe SSD From PCH (Default 128GB SSD)
• Support B+M Key, AI/Storage Module (Pending) |
| M.2 B-Key |
1x M.2 B-key ( 3042)
• Support 1x Nano SIM Holder
• Support 1x PCIe x1, 1x USB 3.2 Gen 2, 1x USB 2.0, 5G/4G/LTE Module |
| M.2 E-Key |
1x M.2 E key ( 2230)
• Support 1x PCIe x1, 1x USB 2.0; Support CNVi
• Devices Supported: Intel® AX210 Wi-Fi 6E & BT-5.1 (vPro Supported) |
| PCIe |
Optional:
• 2x PCIe x8 or
• 1x PCIe x16 (Support A2000 GPU) |
| Network Modules |
Optional Through M.2 B-Key:
• 5G/4G/LTE Module |
| Audio |
Line-out/Mic-in |
| COM |
4x DB9
COM1: RS232/422/485
COM2: RS232/422/485
COM3: RS485
COM4: RS485 |
| DIO |
8 in / 8 out (Isolated) |
| LAN |
3x RJ45 (2.5GbE) |
| USB |
6x USB 3.2 Gen2
2x USB 3.2 Gen1
2x USB 2.0 Type-A |
| Others |
• 5x Antenna Holes
• 1x Power button
• 1x HD LED
• 1x Power LED
• 1x Default Industrial Fan |
| Windows |
Windows 10/11 |
| Linux |
Linux Kernel |
| Power Adapter |
Optional AC/DC 24V/9.2A, 220W for CPU and GPU Expansion |
| Power Mode |
AT, ATX
(Default ATX) |
| Power Supply Voltage |
9~36VDC |
| Power Connector |
4-pin Terminal Block |
| Operating Temperature |
0°C to 50°C (35W CPU) |
| Storage Temperature |
-30°C to 85°C |
| Relative Humidity |
10% to 95% (non-condensing) |
| Certification |
UL 62368 Ed. 3, CE, FCC Class A |
| Vibration |
With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock |
With SSD: 50G half-sin 11ms |

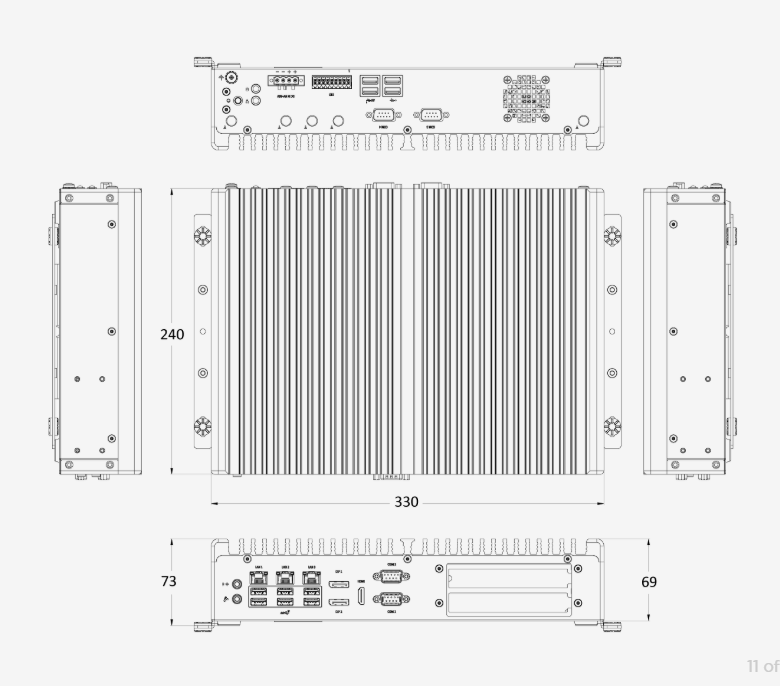

| Dimensions (WxDxH) |
330 x 240 x 69mm |
| Construction |
Extruded Aluminum with Heavy Duty Metal |
| Mounting Options |
Wall Mounting |
