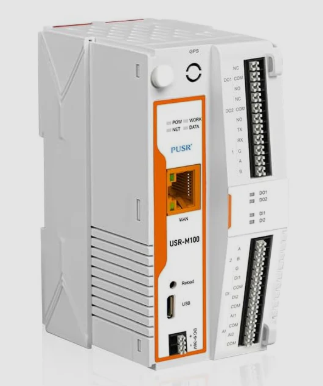

PUSR USR M100 4G Industrial I O Gateway with Edge Computing

Imagine a factory floor where data stops at the sensor because the network cannot keep up. The PUSR USR M100 4G Industrial I O Gateway with Edge Computing is a compact device that brings reliable 4G connectivity and on-site data processing to any industrial environment. It solves the common problem of lost or delayed information, so you can act on real-time data without costly downtime.

PUSR USR M100 4G Industrial I O Gateway with Edge Computing

When machines generate large amounts of data, sending everything to the cloud can overload slow or unreliable networks. This matters because delayed decisions can cause waste, equipment wear, or safety issues. The M100 gateway solves this by filtering and analyzing data at the edge, then using LTE Cat4 to push only the important information to your cloud platform. It works with MQTT, Modbus, HTTP and many other protocols, giving you a clear, fast path from sensor to insight.

Benefits

• Real-time alerts keep you aware of problems before they grow.
• Local edge processing reduces bandwidth use and cloud costs.
• LTE connectivity works where wired Ethernet is impossible.

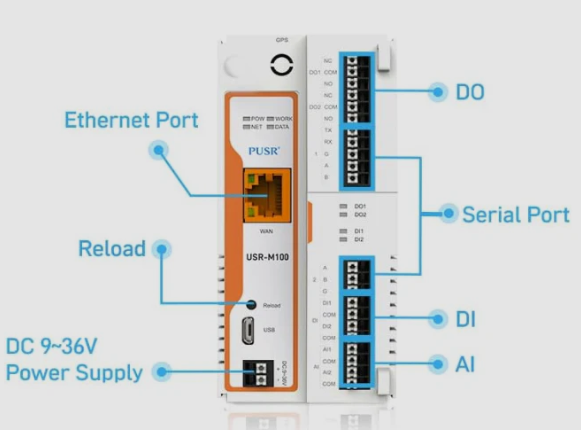

• Simple wiring with RS232/485 and digital I/O speeds up installation.
• Supports major cloud services so you can choose the platform you trust.

Usages

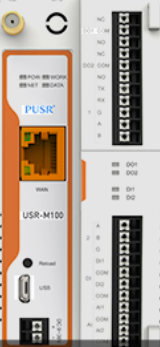

Use the M100 to monitor temperature and pressure in oil pipelines, collect vibration data from rotating equipment, manage lighting and HVAC in smart buildings, or track inventory in warehouses with barcode scanners. It fits in DIN rail panels, can be wall mounted, and survives temperatures from -25 C to 75 C, making it ideal for harsh industrial sites, remote farms, and mobile vehicles.

Key Features

• 4G LTE Cat4 modem with B1/3/5/7/8/20/28 and B38/40/41 bands.
• 1 WAN Ethernet port 10/100 Mbps with Auto MDI/MDIX.
• 32-bit Arm Cortex-M7 CPU up to 400 MHz for edge computing.
• 2 serial ports (RS232/485 and RS485) for legacy devices.
• 2 opto-isolated digital inputs (9-36 V) and 2 relay outputs (10 A / 28 V DC, 10 A / 277 V AC).
• 2 analog inputs 4-20 mA for sensor loops.
• Power input 9-36 VDC, idle <2.4 W, max <4.8 W.
• IP30 housing with ESD, surge and EFT Level 3 protection.
• Supports MQTT, TCP, UDP, HTTP/HTTPS, SSL, SNMP, Modbus and cloud platforms AWS, Azure, Thingsboard, Alibaba, PUSR Cloud.

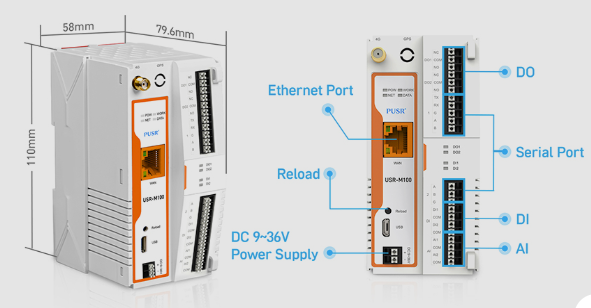

• DIN-rail and wall-mount options, dimensions 79.6 58 110 mm.

Specifications
